Krohne AF-E 400
-
NG # 006607-HW-KROHNE-007
Manufactured by:

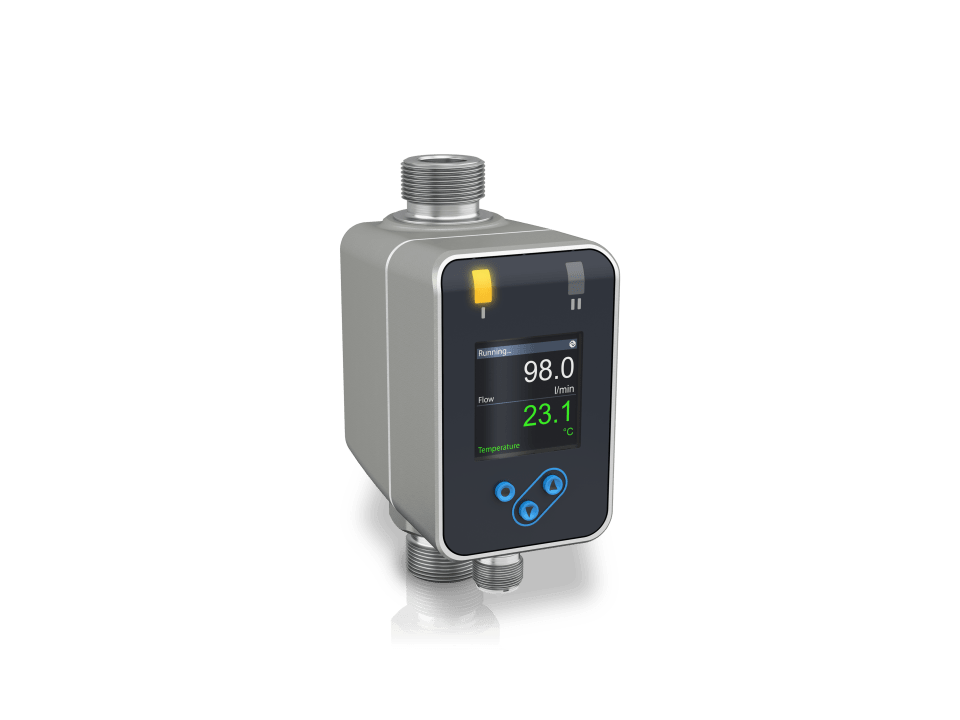

The AF-E 400 is an electromagnetic flowmeter for utility applications and industrial automation. This ultra-compact mag meter is the ideal choice for applications with conductive liquids in tight spaces, e.g. in cooling lines of welding equipment, bending machines and robots or on chemical dosing skids.
Specification
General information
| Product type | Flowmeter |
| Product positioning | For utilities and industrial automation |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -20…+90°C/ -4…+194°F |
Materials
| Measuring tube | Polyetheretherketone (PEEK) |
Process connections
| Thread connections | Male: Female: |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency |
| Digital outputs | Modbus RTU, IO-Link |
Description
It features best-in-class accuracy in every flow range, allowing optimal processing in automation. The round bore reduction of the sensor makes the flowmeter more resilient in terms of increased pressure, ensuring high accuracy over a wide pressure and temperature range. Its integrated temperature measurement eliminates the need for an additional sensor.
