Krohne OPTIFLUX 1100
-
NG # 006603-HW-KROHNE-003
Manufactured by:

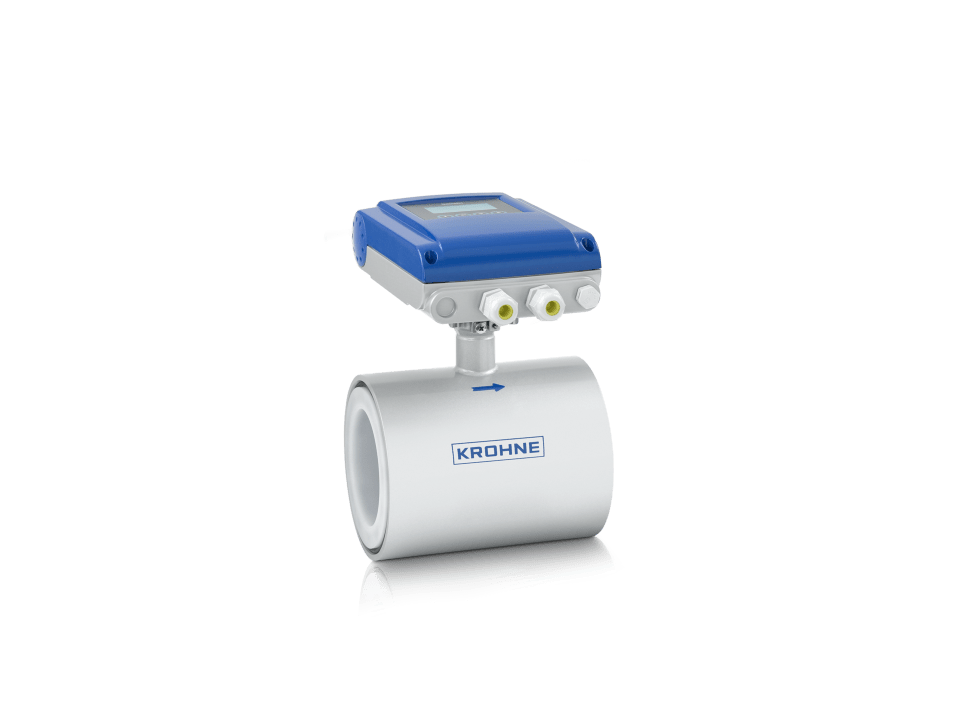

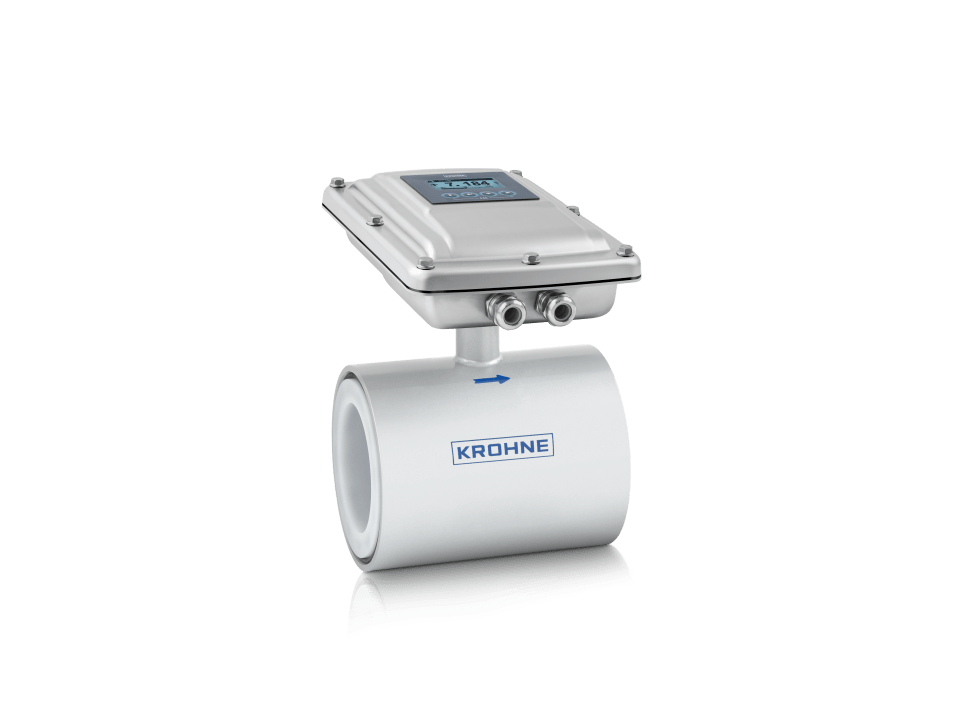

The OPTIFLUX 1100 is a cost-effective electromagnetic flowmeter (EMF) with lightweight wafer-style design. The meter is an economical solution for general applications with conductive liquids (≥5 μS/cm) and lower solid content (up to 10%). Unlike the basic device OPTIFLUX 1050, the OPTIFLUX 1100 offers a better accuracy. It is suitable for use in various industries – from water, wastewater and mobile applications to machine building (OEM), agriculture and utilities to firefighting.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For general applications with conductive liquids |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -25…+120°C/ -13…+248°F |
Materials
| Liner | Perfluoroalkoxy alkane (PFA) |
Process connections
| Flange connections | EN (1092-1): DN10…150 ASME (B 16.5): ⅜…6" JIS (B 2220): 10…150A |
| Other connections | Sandwich (wafer) connection: DN10...150 ⅜…6" 10…150A |
Approvals/Standards
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART® |
Description
Electromagnetic flowmeter for general applications with conductive liquids
Economical flow measurement of liquids (≥5 μS/cm) with solid content (≤10%)
-25…+120°C / -13…+248°F
Wafer-style design: DN10…150 / ⅜…6", max. PN40 / ASME Cl 300
4…20 mA, pulse, frequency, status, HART®
