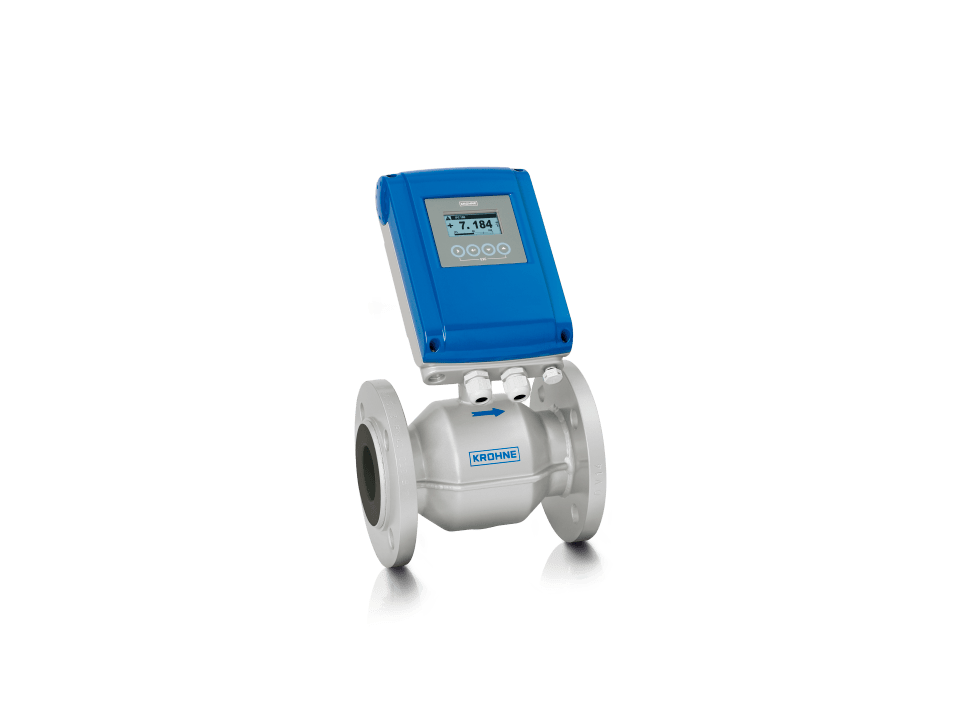

Krohne OPTIFLUX 2100
-
NG # 006606-HW-KROHNE-006
Manufactured by:
The OPTIFLUX 2100 is an electromagnetic flowmeter (EMF) for standard water and wastewater applications. It is the ideal solution for all general flow applications where reliable flow measurement with sufficient yet not extremely high accuracy is required. Installation in measurement chambers subject to (constant) flooding is possible with the remote IP68 / NEMA 6P rated version.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For all standard water and wastewater applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | -5…+90°C/ +23…+194°F |
Materials
| Liner | Polypropylene (PP), Hard rubber |
Process connections
| Flange connections | EN (1092-1): DN25…1200 ASME (B 16.5): 1…48" JIS (B 2220): 25…1000A |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, FM, CSA |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART® |
Description
Electromagnetic flowmeter for all standard water and wastewater applications
Chemically resistant liner materials
Compact version up to IP69, remote version IP68
Flange: DN25…1200 / 1…48", max. PN40 / ASME Cl 300
4…20 mA, pulse, frequency, status, HART®
