Krohne OPTIMASS 1010
-
NG # 006619-HW-KROHNE-019
Manufactured by:
This
seller generally responds in under 48 hours

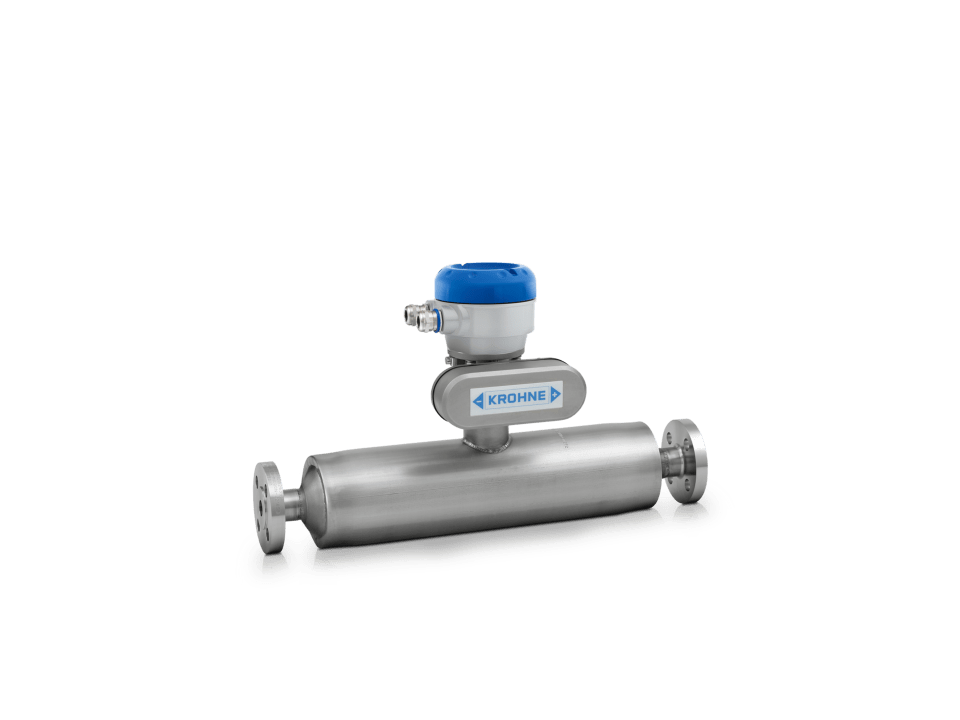

The OPTIMASS 1010 is a cost-effective twin straight tube Coriolis mass flowmeter for a wide range of universal and hygienic applications with liquids and gases (up to 170,000 kg/h or 6,235 lb/min and +130°C / +266°F). It features an integrated Modbus converter.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For universal applications and process control |
| Product variants | |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 100 barg/ 1450 psig |
| Process temperature | -40…+130°C/ -40…+266°F |
Materials
| Measuring tube | Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN15…100 ASME (B 16.5): ½…4" JIS (B 2220): 15…80A |
| Hygienic connections | Clamp (DIN 32676): DN25, DN40, DN50, DN80 Clamp (ISO 2852): 25, 40, 51, 76.1 Tri-Clamp: 1", 1½", 2", 3" Threaded ferrule (DIN 11851): DN25, DN40, DN50, DN80 Flange with groove (DIN 11864-2): DN25, DN40, DN50, DN80; Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 76 mm |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, EAC Ex, INMETRO, FM |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Digital outputs | Modbus RTU, EtherNet/IP™ |
Description
This makes the flowmeter an ideal solution where a DCS or a PLC is already in use and extensive communication options and control functions are not necessary. By way of its Modbus interface the flowmeter integrates easily into existing controller systems. There is no need for a conventional signal converter. Purchase costs can be saved.
