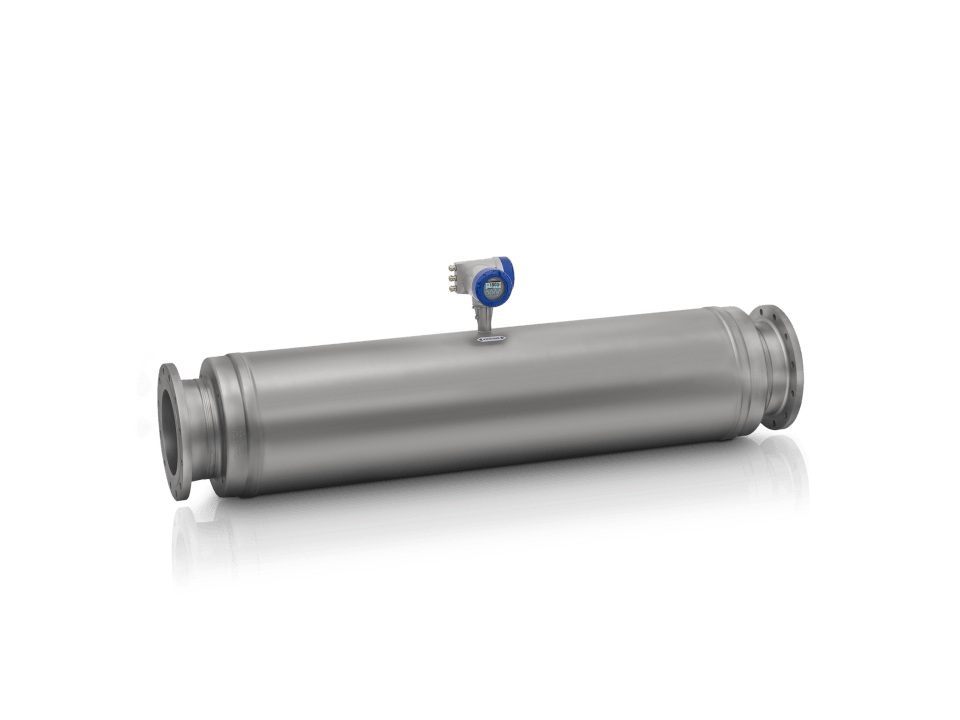

Krohne OPTIMASS 2400
-
NG # 006613-HW-KROHNE-013
Manufactured by:
This
seller generally responds in under 48 hours
The OPTIMASS 2400 is the world’s highest capacity Coriolis mass flowmeter for liquids and gases. With its twin or four straight tube design, the Coriolis meter is ideally suited for bunkering operations and custody transfer or fiscal metering in the oil and gas industry.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For bulk and custody transfer (CT) measurement of gases and liquids |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 180 barg/ 2600 psig |
| Process temperature | -45…+130°C/ -49…+266°F |
Materials
| Measuring tube | Super Duplex stainless steel (1.4501/Alloy100), Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN100…400 ASME (B 16.5): 4…16" JIS (B 2220): 100A |
| Hygienic connections | Clamp (DIN 32676): DN100; Clamp (ISO 2852): 101.6 Tri-Clamp: 4" Threaded ferrule (DIN 11851): DN100 Flange with groove (DIN 11864-2): DN100 Threaded ferrule (SMS 1146): 101.6 mm IDF/ISS: 4 |
Approvals/Standards
| Certificates/Approvals Others | NACE |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, FM, CSA, UKEX |
| Certificates/Approvals Hygienic | FDA, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, EtherNet/IP™, PROFINET, Bluetooth |
Description
It can also be used for any bulk mass application with many other products such as syrup, molasses or raw chemicals up to 4,600 t/h / 169,000 lb/min. The Coriolis meter features Entrained Gas Management (EGMTM) for liquid applications, maintaining operation over a wide range of gas fractions and complex flow conditions.
