Krohne OPTIMASS 3010
-
NG # 006618-HW-KROHNE-018
Manufactured by:
This
seller generally responds in under 48 hours

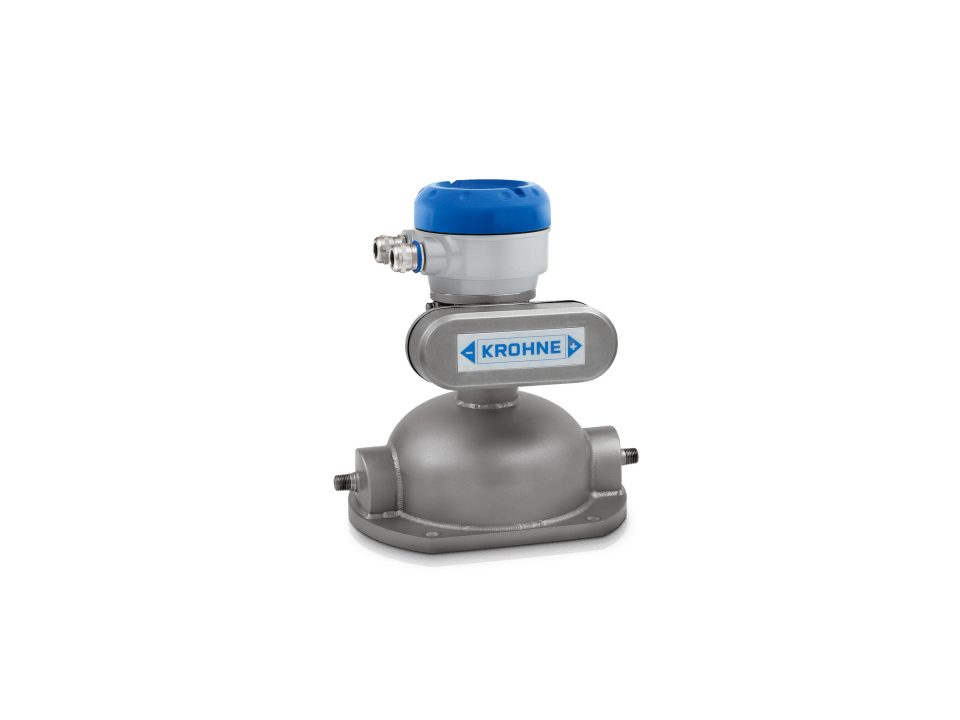

The OPTIMASS 3010 is a cost-effective Coriolis mass flowmeter for low flow and dosing applications with liquids and gases (from 0.3 kg/h or 0.01 lb/min upwards). The flowmeter features an integrated Modbus converter.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For low flow and dosing applications |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 300 barg/ 4351 psig |
| Process temperature | -40…+150°C/ -40…+302°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22) |
Process connections
| Flange connections | EN (1092-1): DN15 ASME (B 16.5): ½" JIS (B 2220): 15A |
| Thread connections | Female: ¼ NPT |
| Hygienic connections | Clamp (DIN 32676): DN10 Tri-Clamp: ½ |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, EAC Ex, INMETRO, FM |
Communication
| Digital outputs | Modbus RTU, EtherNet/IP™ |
Description
This makes it the ideal solution for applications where a DCS or a PLC is already in use and extensive communication options and control functions are not necessary. By way of its Modbus interface the flowmeter integrates easily into existing controller systems. There is no need for a conventional signal converter. Purchase costs can be saved.
