Krohne OPTIMASS 6400
-
NG # 006612-HW-KROHNE-012
Manufactured by:

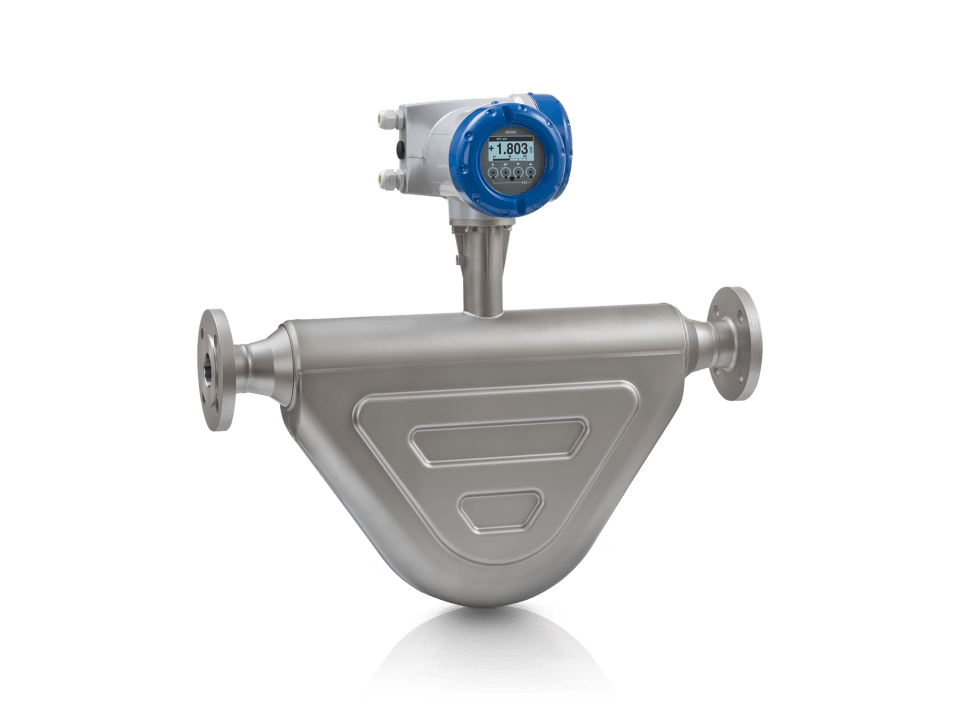

The OPTIMASS 6400 is the standard high performance Coriolis mass flowmeter for the process industry. The twin bent tube meter offers superior performance and high accuracy in virtually any application: From process control in (petro)chemical applications to concentration measurements in the food and beverage industry to custody transfer filling and transport measurements in the oil and gas industry.
Specification
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For advanced process and custody transfer (CT) applications |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 200 barg/ 2900 psig |
| Process temperature | -200…+400°C/ -328…+752°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22), Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN10…300 ASME (B 16.5): ½…12" JIS (B 2220): 10…100A |
| Hygienic connections | Clamp (DIN 32676): DN15, DN25, DN40, DN50, DN80, DN100 Clamp (ISO 2852): 25, 40, 51, 76.1, 101.6 Tri-Clamp: ½", ¾", 1", 1½", 2", 3", 4" Threaded ferrule (DIN 11851): DN15, DN25, DN40, DN50, DN80, DN100 Flange with groove (DIN 11864-2): DN15, DN25, DN40, DN50, DN80, DN100 Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 76 mm, 101.6 mm |
Approvals/Standards
| Certificates/Approvals Others | NACE |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Safety | SIL 2/3 |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth |
Description
Its high-end options also make the OPTIMASS 6400 the optimum device for cryogenic media like Liquefied Natural Gas (LNG) with temperatures down to -200°C / -328°F as well as applications involving high operating temperatures (up to 400°C / 752°F) or pressures (up to 200 barg / 2900 psig).
