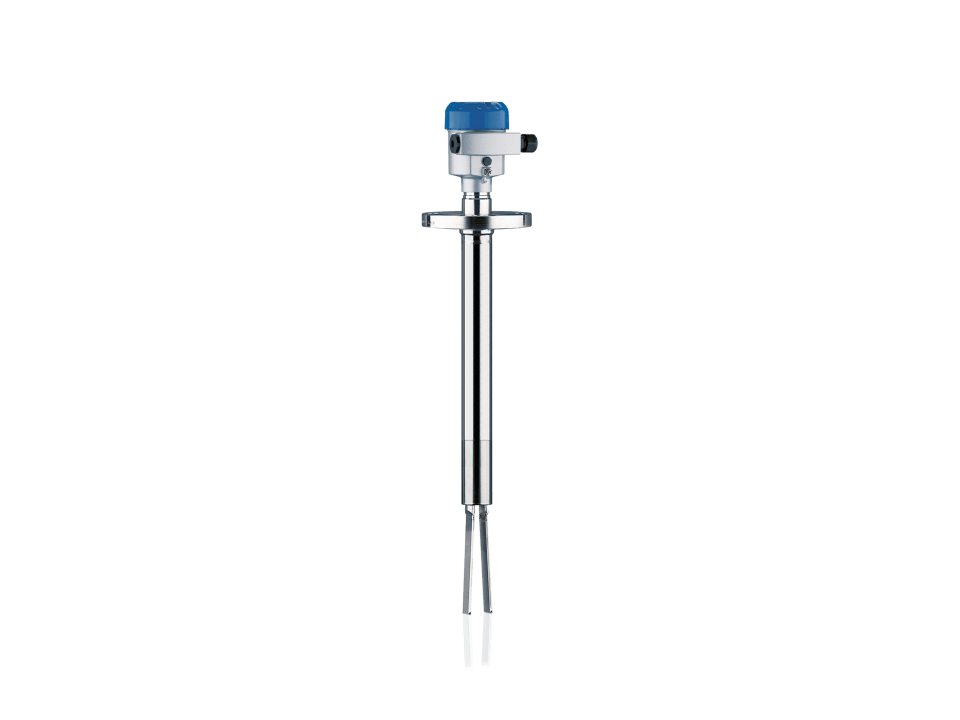

krohne OPTISWITCH 3300 Vibration level switch
-
NG # 006634-HW-KROHNE-034
Manufactured by:
This
seller generally responds in under 48 hours
The OPTISWITCH 3300 is a vibration level switch with tube extension for applications with bulk solids or powders. This robust level device detects the MIN or MAX levels of abrasive media and operates reliably even in applications with extremely low density. Its tube extension enables level detection in thick-walled silos or for a more flexible position of the switching point, e.g. in media that form a cone of bulk goods
Specification
General information
| Product type | Level switch |
| Product family name | OPTISWITCH |
| Product positioning | With rigid extension for solid applications |
| Product variants | OPTISWITCH 3300 C: Compact housing |
| Measurement variables | Level |
| Measurement principle | Vibrating |
| Level measurement type | Point level detection |
| Contact to measured medium | Yes |
| Interface measurement | No |
| Redundancy | No |
| Measured media | Solids, Bulk solids, Granulates, Powders |
| Probe length | 0.3…6 m/ 1…20 ft |
| Measuring point | Silo |
Operating conditions
| Process pressure | -1…16 barg/ -14.5…232 psig |
| Process temperature | -50…+250°C/ -58…+482°F |
Materials
| Gaskets | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, PFA |
| Wetted parts | Austenitic stainless steel (1.4404/316L) |
Process connections
| Flange connections | EN (1092-1): DN50…200 ASME (B 16.5): 2…4 |
| Thread connections | Male: G1 ½ 1 ½ NPT |
| Hygienic connections | Tri-Clamp®: 2 |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, EAC Ex, FM, CSA |
| Certificates/Approvals Safety | SIL 2 |
| Ingress protection | IP66/67, NEMA4/4X/6 |
Communication
| Discrete outputs | 2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor |
Description
Vibration level switch with rigid extension for solid applications
Point level detection of solids
Probe length: up to 6 m / 20 ft
Density: <8 g/l / <0.49 lb/ft3
-50…+250°C; -1…16 barg
