krohne OPTISWITCH 5150 Vibration level switch
-
NG # 006638-HW-KROHNE-038
Manufactured by:
This
seller generally responds in under 48 hours

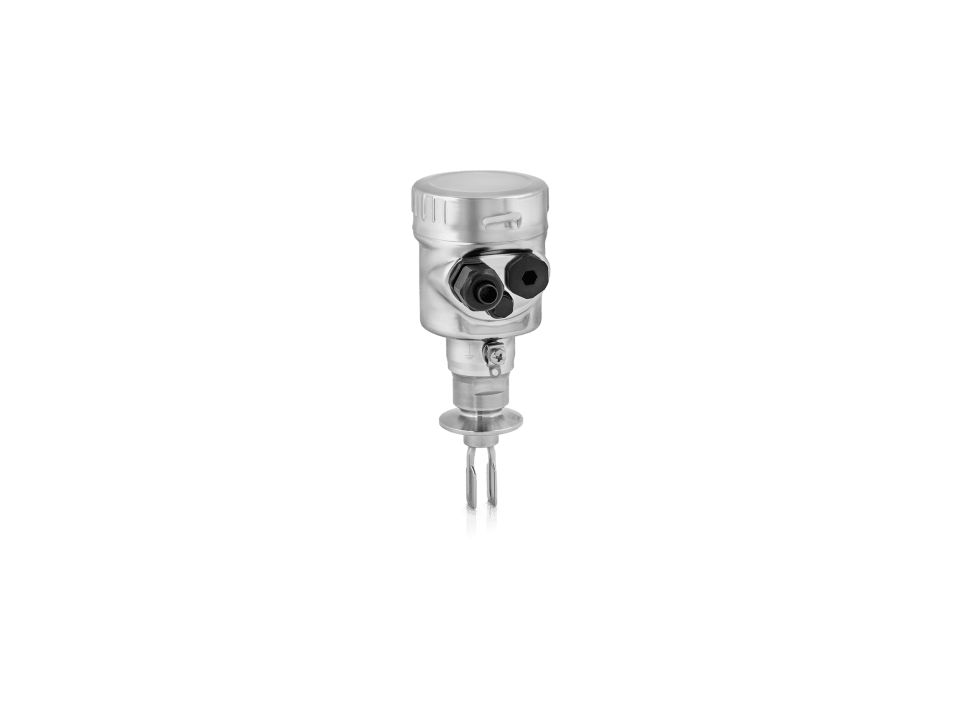

The OPTISWITCH 5150 is a vibration level switch with polished tuning fork for liquid hygienic applications. It is a universal and reliable device for level detection in vessels. It detects low or high level and is mostly used for overfill, dry-run or pump protection. Installations in pipelines are also possible.
Specification
General information
Product type | Level switch |
Product family name | OPTISWITCH |
Product positioning | For liquids in hygienic applications |
Product variants | OPTISWITCH 5150 C: Compact housing |
Measurement variables | Level |
Measurement principle | Vibrating |
Level measurement type | Point level detection |
Contact to measured medium | Yes |
Interface measurement | No |
Redundancy | No |
Measured media | Liquids |
Probe length | 80…6000 mm/ 3…236 in |
Measuring point | Pressurised tank, Open tank, Open channel, Basin |
Operating conditions
Process pressure | -1…64 barg/ -14.5…925 psig |
Process temperature | -50…250°C/ -58…482°F |
Materials
Gaskets | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, PFA |
Wetted parts | Austenitic stainless steel (1.4404/316L) |
Process connections
Thread connections | Male: G¾, G1 ¾ NPT, 1 NPT |
Hygienic connections | Collar ferrule with nut (DIN 11851): DN25, DN40 Tri-Clamp®: 1", 1½", 2" Varivent®: N Collar ferrule with nut (SMS 1147): 38 mm |
Approvals/Standards
Certificates/Approvals Hygienic | FDA, 3A, EC 1935/2004 |
Certificates/Approvals Marine | GL, LR |
Communication
Discrete outputs | 2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor |
Description
Vibration level switch for liquids in hygienic applications
Point level detection of liquids in the food, beverage and pharmaceutical industry
Polished tuning fork to meet hygienic requirements
Density: ≥0.5 g/cm3 / 0.018 lb/in3
-50…+250°C / -58…+482°F; -1…64 barg / -14.5…925 psig
