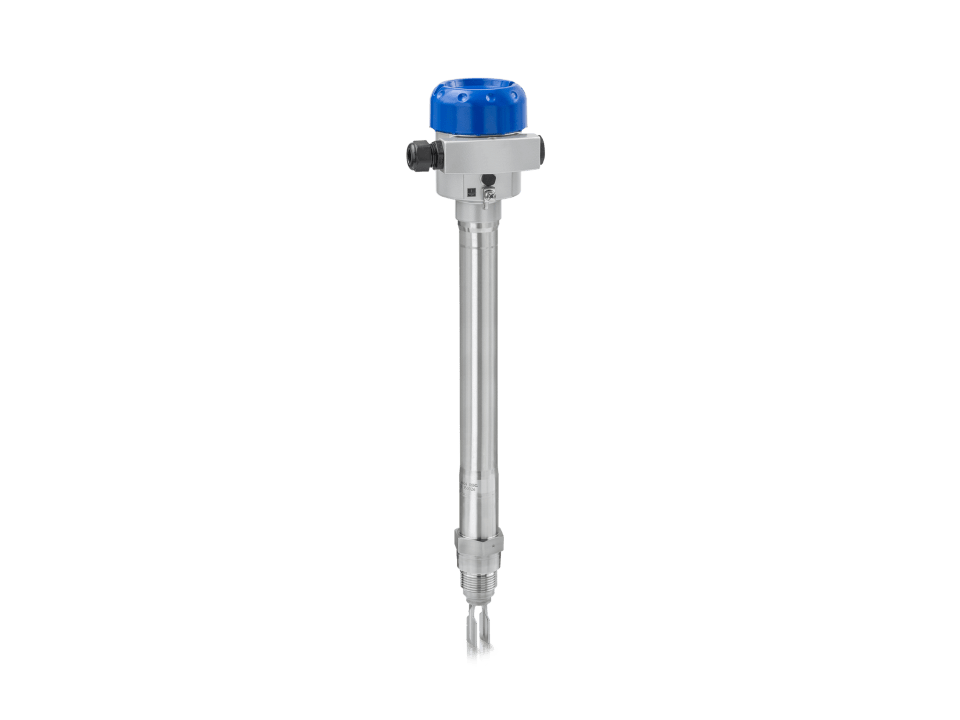

krohne OPTISWITCH 5300 Vibration level switch
-
NG # 006636-HW-KROHNE-036
Manufactured by:
This
seller generally responds in under 48 hours
The OPTISWITCH 5300 is a vibration level switch for heavy duty applications. It is designed for high/low level alarm, overfill protection or pump dry-run detection in processes from cryogenic to +450°C / +842°F.
Specification
General information
| Product type | Level switch |
| Product family name | OPTISWITCH |
| Product positioning | For heavy-duty applications |
| Product variants | OPTISWITCH 5300 C: Compact housing |
| Measurement variables | Level |
| Measurement principle | Vibrating |
| Level measurement type | Point level detection |
| Contact to measured medium | Yes |
| Interface measurement | No |
| Redundancy | No |
| Measured media | Liquids |
| Probe length | 80…3000 mm/ 3…118 in |
| Measuring point | Pressurised tank, Open tank, Open channel, Basin |
Operating conditions
| Process pressure | -1…160 barg/ -14.5…2320 psig |
| Process temperature | -196…+450°C/ -320…+842°F |
Materials
| Gaskets | Klingersil® C-4400 |
| Wetted parts | Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4610/alloy C4), Austenitic alloy (2.4668/Alloy 718) |
Process connections
| Flange connections | EN (1092-1): DN50…250 ASME (B 16.5): 1½…4 |
| Thread connections | Male: G1 1 NPT |
Approvals/Standards
| Certificates/Approvals Others | WHG |
| Certificates/Approvals Ex | ATEX, IECEx, EAC Ex |
| Certificates/Approvals Marine | GL, LR |
| Certificates/Approvals Safety | SIL 2 |
| Ingress protection | IP66/67, NEMA4/4X/6 |
Communication
| Discrete outputs | 2-wire (8/16 mA), Relay, Transistor |
Description
Its pressure range (up to 160 barg / 2321 psig) meets boiler standards covering virtually all saturated steam applications. With its corrosion-resistant tuning fork (Inconel® 718), an optional 2nd process seal (ceramic) and an extensive set of approvals (WHG, NACE, Ship, Ex, Boiler and SIL) it is the ideal device for harsh environments such as refineries or offshore platforms.
