Krohne TIDALFLUX 2300
-
NG # 006609-HW-KROHNE-009
Manufactured by:
This
seller generally responds in under 48 hours

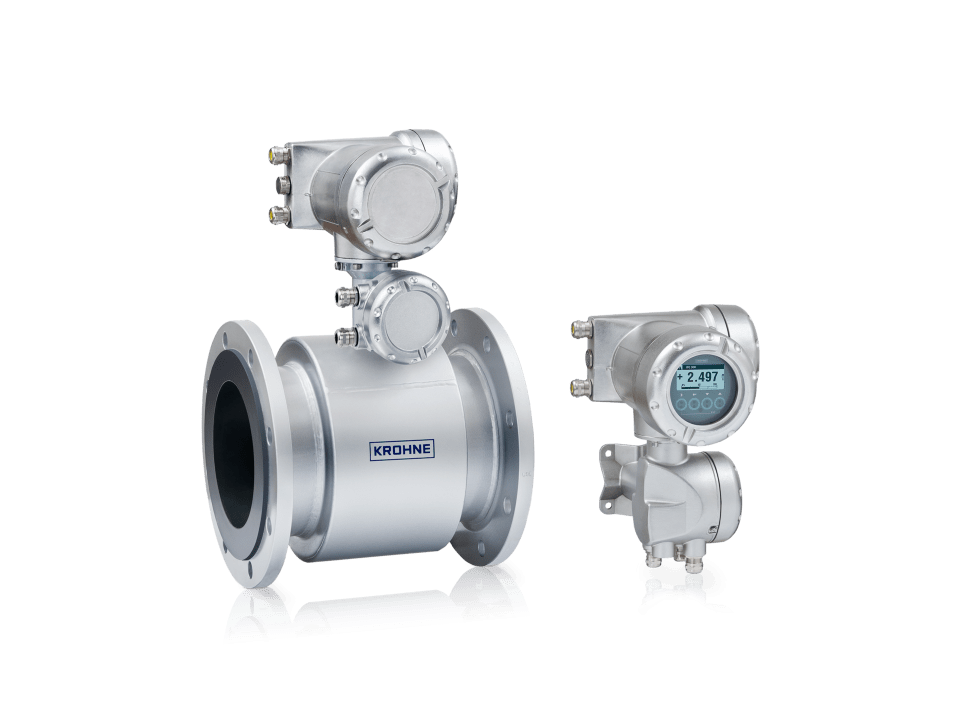

The TIDALFLUX 2300 is an electromagnetic flowmeter (EMF) with a patented, capacitive level measurement for use in partially filled pipes (up to DN1600 / 64”).
Specification
General information
| Product type | Flowmeter |
| Product family name | TIDALFLUX |
| Product positioning | For applications with partially filled pipes |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process temperature | -5…+60°C/ -23…+140°F |
Materials
| Liner | Polyuretane (PUR) |
Process connections
| Flange connections | EN (1092-1): DN200…1600 ASME (B 16.5): 8…64" |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, cQPSus, IECEx, NEPSI |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | HART®, Modbus RTU, PROFINET |
Description
The meter is the ideal solution for flow measurement of municipal or industrial wastewater in pressureless transport lines. However, the EMF is also suitable for measurement of effluent brine from dredging, mining or sea/well water injection applications. Unlike open channel systems (Venturi, V-notches etc.) the inline flowmeter is a closed measuring solution without obstructions and with a much better accuracy at lower total costs of ownership.
