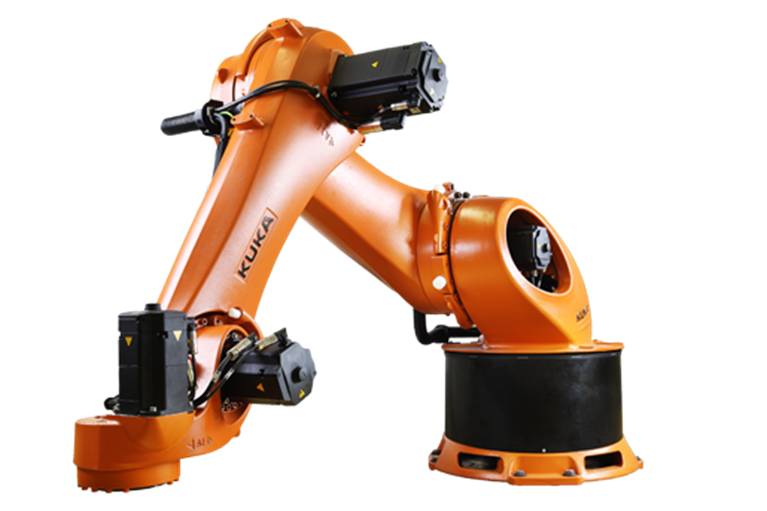

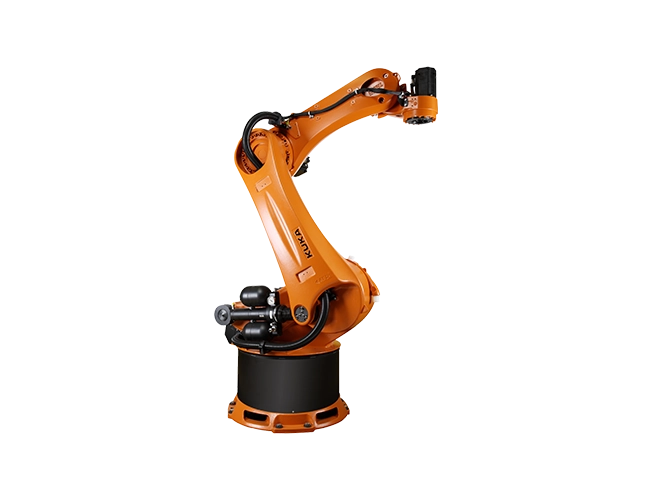

KUKA Articulated robot KR 470-2 PA
-
NG # 00113-HW-KUKA-014
Manufactured by:
The KR 470-2 PA packages and picks goods reliably, precisely and fast even in the most confined spaces. The palletizer achieves optimal cycle times in the heavy payload range and is particularly versatile.
Specification
| Type | articulated |
| Number of axes | 5-axis |
| Function | handling |
| Other characteristics | compact |
| Payload | 470 kg (1,036.173 lb) |
| Reach | 3,150 mm (124.02 in) |
Description
The KR 470-2 PA features a compact design, low weight and high speed in the heavy-duty category. It is optimally suited to handling tasks with payloads of up to 470 kilograms. The palletizer can be flexibly adapted to its specific task by means of booster frames of different heights.
The KR 470-2 PA is ideally suited to high working speed in the heavy-duty category. It massively shortens cycle times and offers maximum process efficiency thanks to its compact design and low weight.
The KR 470-2 PA enables protected routing through the wrist and fast exchange of all commonly used energy supply systems. The hollow-wrist design features an opening with a diameter of 60 millimeters.
