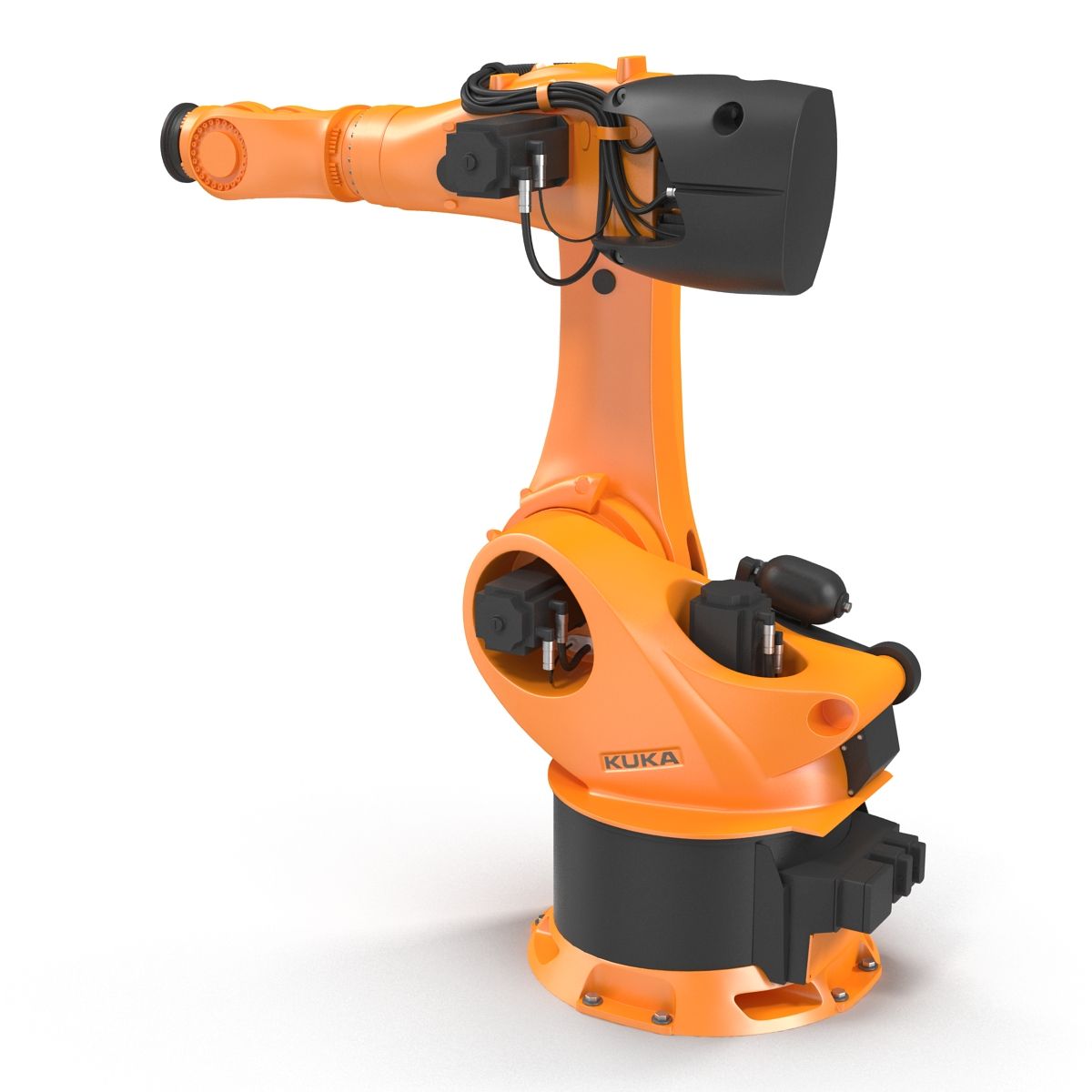

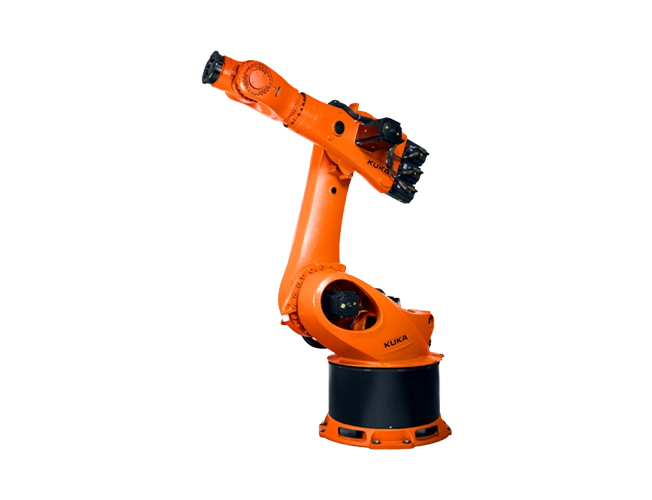

KUKA Articulated robot KR 600 FORTEC
-
NG # 00115-HW-KUKA-016
Manufactured by:
The KR 600 FORTEC heavy-duty robot can be used in a great many applications in the high payload range on account of its versatility. It can also turn in a top performance at reduced investment costs as a foundry robot.
Specification
Type
articulated
Number of axes
6-axis
Application domain
for foundry applications, for heavy loads
Payload
600 kg (1,322.774 lb)
Reach
2,826 mm (111.26 in)
Description
The advantages of the KR 600 FORTEC heavy-duty robot couldn’t be clearer: its strength and sophisticated technology guarantee a consistently high production quality – without substantial maintenance outlay. Compared to older models, the KR 600 FORTEC stands out due to its more streamlined design. This allows the robot to handle the heaviest of components – weighing up to 600 kilograms – in the smallest of spaces.
With a pose repeatability of 0.08 millimeters and an arm extension of up to 500 millimeters, the KR 600 FORTEC provides the utmost production quality.The KR 600 FORTEC can handle components weighing with ease. The even more streamlined design enables cell layouts with minimal space requirements. Our heavy-duty robot is available in heat, dust and water-resistant variants. This versatility makes it suitable for a wide range of applications across all industries.
