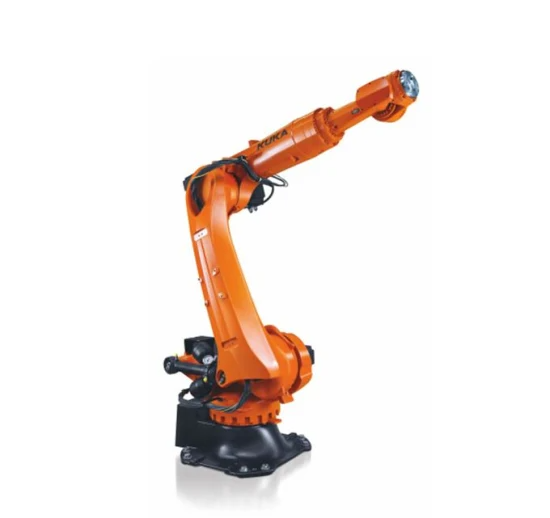

KUKA Articulated robot KR CYBERTECH ARC nano
-
NG # 00109-HW-KUKA-010
Manufactured by:
The KR CYBERTECH ARC nano series is specifically designed for precise applications such as arc welding, adhesive dispensing, and sealant application. These industrial robots provide high power density for continuous-path tasks, delivering maximum efficiency and cost-effectiveness.
Specification
Type
articulated
Number of axes
6-axis
Function
arc welding
Other characteristics
compact
Payload
Min.: 6 kg (13.228 lb)
Max.: 8 kg (17.637 lb)
Reach
Min.: 1,421 mm (55.94 in)
Max.: 1,840 mm (72.44 in)
Description
The KR CYBERTECH ARC nano family of industrial robots, with their advanced controller structures, offers exceptional path accuracy and speed. High acceleration and a new ergonomic design with minimized interference contours enable precise, continuous-path motion, even in deep or complex workpiece areas.
These specialized process robots are compatible with the KR C4 compact and KR C4 smallsize-2 controllers.
