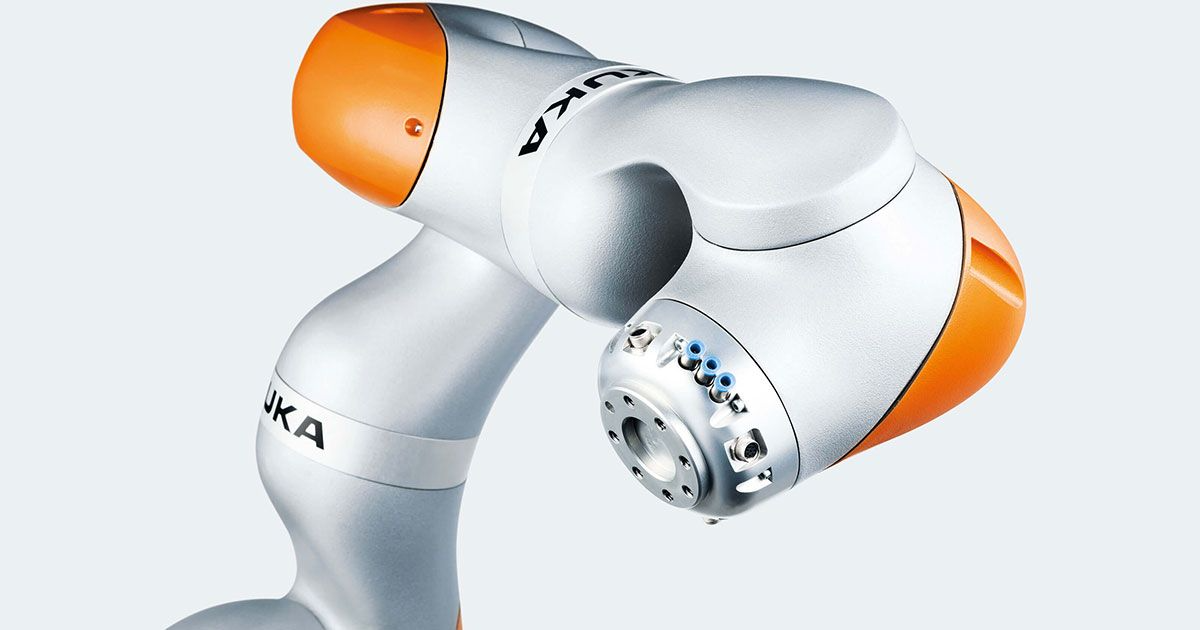

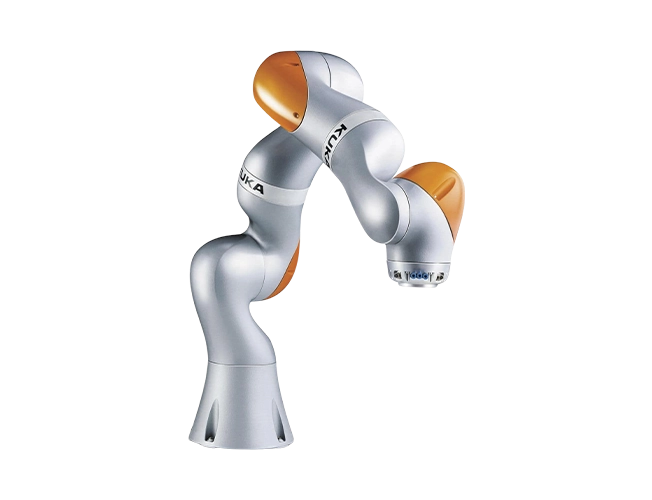

KUKA Articulated robot LBR iiwa series
-
NG # 00102-HW-KUKA-003
Manufactured by:
The LBR iiwa is the world’s first series-produced sensitive, and therefore HRC-compatible, robot. LBR stands for “Leichtbauroboter” (German for lightweight robot), iiwa for “intelligent industrial work assistant”. With the LBR iiwa, humans and robots can work together on highly sensitive tasks in close cooperation, opening the possibility of new applications and paving the way for greater cost-effectiveness and efficiency.
Specification
Max.: 14 kg Min.: 7 kg Max.: 820 mm Min.: 800 mmType articulated, collaborative Number of axes 7-axis Function handling, packaging, palletizing, machining, spark optical emission Mounting floor-mounted, ceiling-mounted, wall-mounted Application domain for the automotive industry Protection level IP54 Other characteristics self-learning, safety Payload
(30.865 lb)
(15.432 lb)Reach
(32.28 in)
(31.5 in)
Description
With the arrival of the LBR iiwa, our lightweight robot for delicate assembly work, safety fences make way for human-robot-collaboration in the workspace.
The LBR iiwa is the world’s first series-produced sensitive, and therefore HRC-compatible, robot. LBR stands for “Leichtbauroboter” (German for lightweight robot), iiwa for “intelligent industrial work assistant”. This signals the beginning of a new era in industrial, sensitive robotics – and lays the foundations for innovative and sustainable production processes. For the first time, humans and robots can work together on highly sensitive tasks in close cooperation. This opens up the possibility of new applications and the way is paved for greater cost-effectiveness and utmost efficiency. The collaborative and sensitive LBR iiwa robot is available in two versions with payload capacities of 7 and 14 kilograms.
