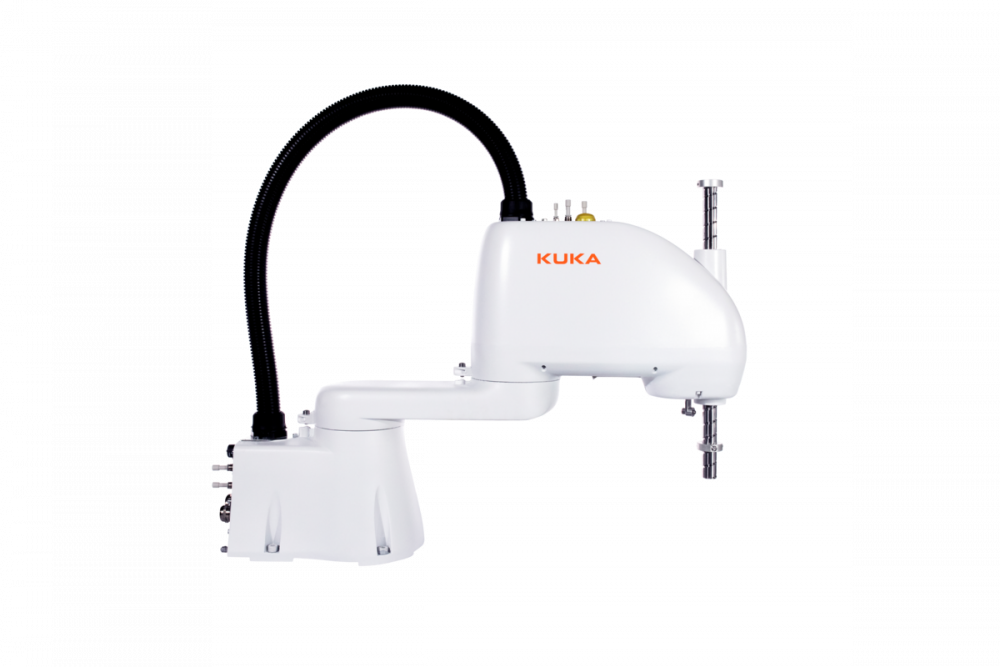

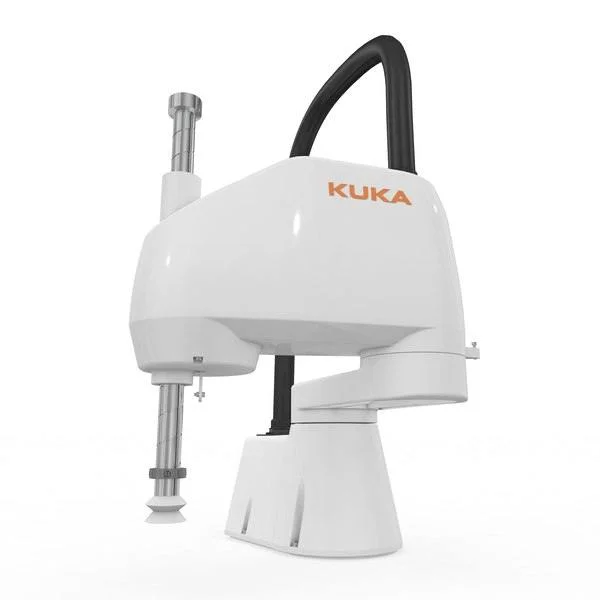

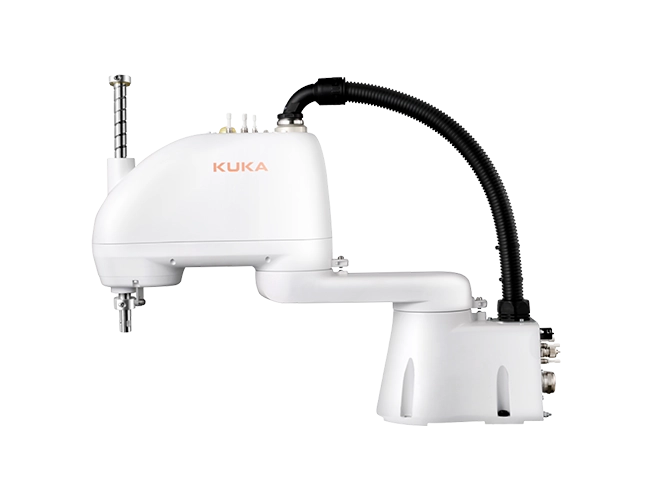

KUKA SCARA robot
-
NG # 00107-HW-KUKA-008
Manufactured by:
Compact, robust, and exceptionally efficient. Whether engaged in small parts assembly, material handling, or testing, the ultra-compact KR SCARA robots ensure optimal efficiency and cost-effectiveness from the outset. Equipped with diverse integrated media supply systems, these robots seamlessly tackle a wide range of tasks straight out of the box.
Specification
Type
SCARA
Number of axes 4-axis
Function handling, for assembly, packaging, pick-and-place, palletizing, painting, test, for bonding, spraying, measuring
Mounting
floor-mounted, ceiling-mount
Application domain
for clean rooms, for small parts
Other characteristics
compact, short cycle time, hygienic
Payload
6 kg, 12 kg (13.228 lb)
Reach
500 mm, 650 mm, 700 mm, 750 mm, 850 mm (19.69 in)
Repeatability
0.02 mm (0.0008 in)
Operating temperature
Min.: 5 °C (41 °F)
Max.: 40 °C (104 °F)
Description
The KR SCARA robots make automation easier and sustainably more economical, even in extremely cost-sensitive markets. Equipped with intelligent features, KUKA offers you a uniquely attractive overall package in its class: light and slim, with a payload capacity of 6 kg, yet extremely fast and powerful.
The KR SCARA has an internal media supply system for air, power and data. This is a complete robotics package for smart integration of peripheral devices and rapid adaptation of the SCARA robot to almost any application. Whether small parts assembly, material handling or testing – the KR SCARA are flexible in installation, highly precise in their movements and easy to maintain.
