Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender
00105-HW-LIN-005
00105-HW-LIN-005
Overview
Effortlessly extend HDMI 2.0 18G signals over extended distances — up to 300m using a simplex LC multimode cable or an impressive 1000m with a simplex LC singlemode cable. Enjoy resolutions up to 4K 60Hz Ultra HD, inclusive of High Dynamic Range. This system supports bi-directional IR or RS-232 for seamless control and ensures maximum compatibility with HDCP 2.2.
| AV Interface: | HDMI |
| Interface Standard | HDMI 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Distance | 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit, 100m (328.08ft) - 1920x1080@60Hz |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| EDID Pass Through | Pass-through |
| Supported Audio | HDMI Audio Pass-through, TosLink (Optical) Up to 5.1Ch, 3.5mm Up to 2.0Ch |
| Separate Audio Ports | TosLink (Optical), 3.5mm |
| IR Support | 20KHz – 60KHz |
| CEC Support | Pass-through |
| Serial Interface | RS-232 |
| Transmission Medium | Cat.6 |
| Wavelength (only for Fibre) | 1310 and 1550nm (with supplied SFP+ module) |
| Chipset | VS2310TX-A1 |
| Special Features | HDMI Loop Out Port, PoC (Power over Cat.6), ARC Support |
| Transmitter Input | HDMI Type A (Female), 3.5mm Audio (Female) |
| Transmitter Output: | RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) |
| Receiver Input | RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) |
| Receiver Ouput | HDMI Type A (Female), 3.5mm Audio (Female) |
| Bidirectonal Ports | RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) |
| Power | 5.5/2.1mm |
| Dimensions (approx.) WxDxH | 163x90x16mm (6.42x3.54x0.63in) per unit |
| Housing Material | Metal |
| Net Weight | 0.77kg (1.7lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power Requirements | 5VDC 1A |
| Colour | Black |

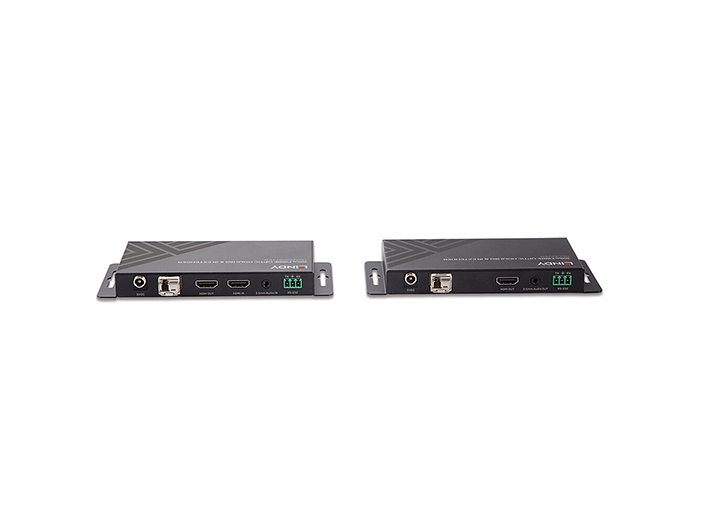

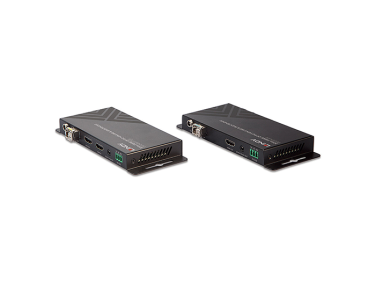

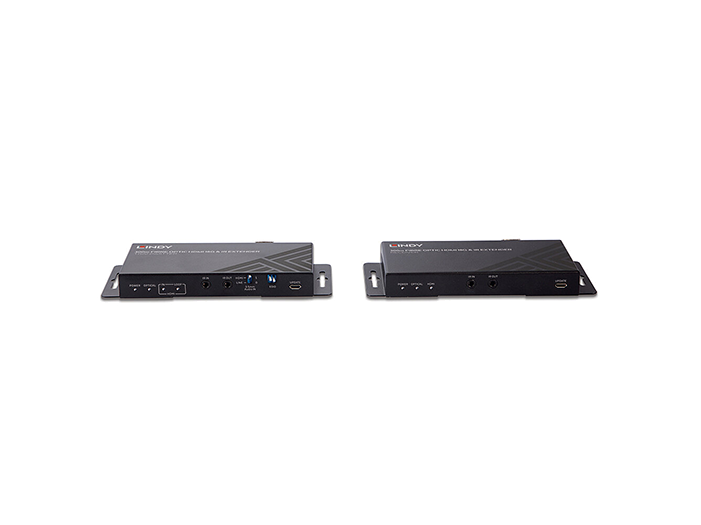

The Lindy 300m/1000m Fibre Optic HDMI & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC simplex fibre optic cable. Support for the HDMI 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.
