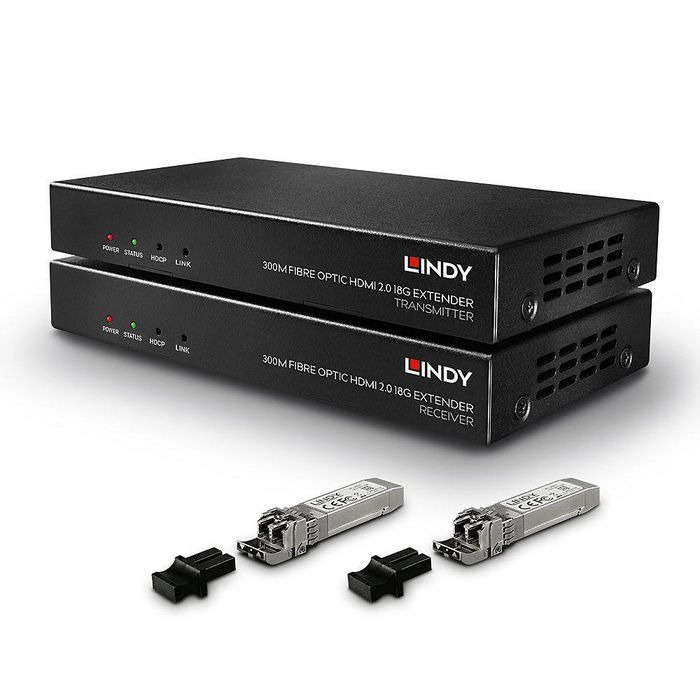

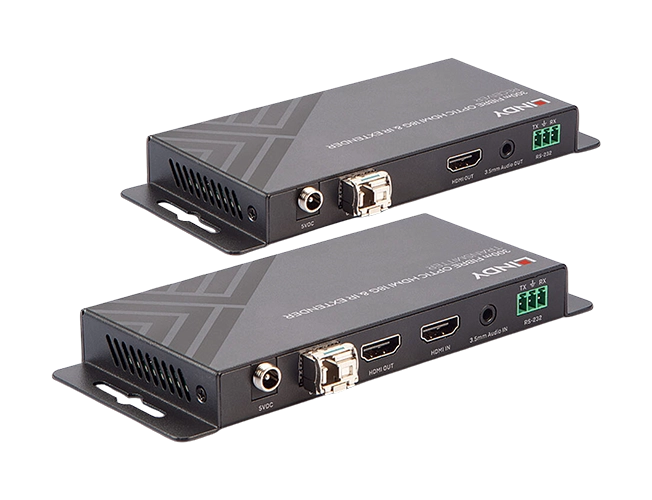

Lindy 300m/1000m Fibre Optic HDMI 4K60, IR, RS232 & Audio Extender
00100-HW-LIN-055
Overview
Extends HDMI 2.0 18G signals up to 300m over a simplex LC multimode cable or up to 1000m over a simplex LC single mode cable Supports resolutions up to 4K 60Hz Ultra HD, with High Dynamic Range Bi-directional IR or RS-232 for seamless, flexible control HDCP 2.2 support to ensure maximum compatibility.
| AV Interface: | HDMI |
| Interface Standard | HDMI 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Distance | 300m (984.24ft) (Multimode 50/125µm fiber), 1000m (3280.2ft) (Singlemode 9/125µm fiber) |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | Pass-through |
| EDID Pass Through | Pass-through |
| Supported Audio | Pass-through |
| Separate Audio Ports | 3.5mm |
| IR Support | 20KHz – 60KHz |
| Serial Interface | RS-232 (Bi-directional) |
| Transmission Medium | 1 x Simplex LC |
| Wavelength (only for Fibre) | 1310 and 1550nm (with supplied SFP+ module) |
| Chipset | SD1503/SD1513 |
| Special Features | Auto Laser Disabling Function |
| Transmitter Input | HDMI Type A (Female), 3.5mm Audio (Female) |
| Transmitter Output: | Simplex LC, HDMI Type A (Female) |
| Receiver Input | simplex c |
| Receiver Ouput | HDMI Type A (Female), 3.5mm Audio (Female) |
| Bidirectonal Ports | RS232 (Terminal Blocks), IR (Female) |
| Power | 5.5/2.5mm DC Socket |
| Dimensions (approx.) WxDxH | 100x65x25.6mm (3.94x2.56x1.01in) |
| Housing Material | Metal |
| Net Weight | 0.516kg (1.14lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power Requirements | 5VDC 1A |
| Colour | Black |
The Lindy 300m/1000m Fibre Optic HDMI & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC simplex fibre optic cable. Support for the HDMI 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture. Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels. HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.
