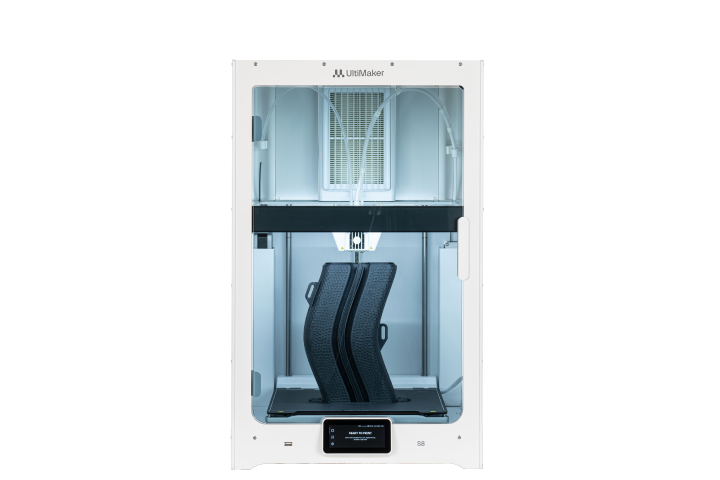

UltiMaker S8 3D Printer
TF:
006477-HW-TEK-077
Overview
The dual extrusion design works together with software and firmware features to allow you to combine any 2 materials no matter how different they are, with minimal material waste and high reliability.
Dimensions
| Build volume | 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches) |
| Assembled dimensions | W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches) |
| Print technology | Fused Deposition Modeling (FDM) |
| Compatible filament diameter | 2.85 mm |
| Weight | 29.1 kg (64.2 lbs) |
| Maximum power output | 500 W |
| Dimensional Accuracy | ± 0.15 mm ± 0.15% feature nominal length* |
| Extrusion flow | Up to 35 mm3/s |
| XY speed, acceleration, jerk | Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3 |
Printer Properties
| Layer resolution | 0.25 mm nozzle: 150 - 60 micron 0.4 mm nozzle: 200 - 20 micron 0.6 mm nozzle: 300 - 20 micron 0.8 mm nozzle: 600 - 20 micron |
| XYZ resolution | 6.9, 6.9, 2.5 micron |
| Feeder type | Dual-geared feeder, reinforced for composite materials |
| Display | 4.7-inch (11.9 cm) color touchscreen |
| Print core replacement | Swappable print cores |
| Print head | Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection. |
| Nozzle diameters | 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm |
Operation parameters
| Filter technology | Replaceable EPA filter |
| Air extraction rate | 1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C) |
| Nozzle temperature | Up to 340 °C (644 °F) |
| Nozzle heat-up time | < 2 minutes |
| Operating sound | < 50 dBA |
| Build plate leveling | Advanced active leveling with more accurate inductive sensors |
| Build plate | PEI-coated flexible steel build plate |
| Build plate heat-up time | < 5 minutes (from 20 to 60 °C) |
| Operating ambient temperature | 15 - 32 °C (59 - 90 °F) |
| Non-operating temperature | 0 - 32 °C (32 - 90 °F) |
Ecosystem, Safety & Compliance
| Supplied free software | UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools |
| Supported OS | MacOS, Windows, and Linux |
| Plugin integration | SolidWorks, Siemens NX, Autodesk Inventor |
| Supported file types | UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP |
| File transfter | Wi-Fi (2.4 and 5 GHz), Ethernet, USB |
| Certification | CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use |
Digital Factory is designed to streamline every step of your 3D printing workflow, from slicing, to file management and even maintenance. Scalable for any team or enterprise, Digital Factory makes managing your 3D printing projects easier, faster, and more collaborative.
