Mikrotik NetMetal ax
-
NG # 006717-HW-MICROTIK-017
Manufactured by:
Specification
Product code L23UGSR-5HaxD2HaxD-NM Architecture ARM CPU IPQ-5010 CPU core count 2 CPU nominal frequency 800 MHz RouterOS license 4 Operating System RouterOS v7 Size of RAM 256 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $169.00
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 25 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 18-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Nano SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1.5 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 66 |
Description

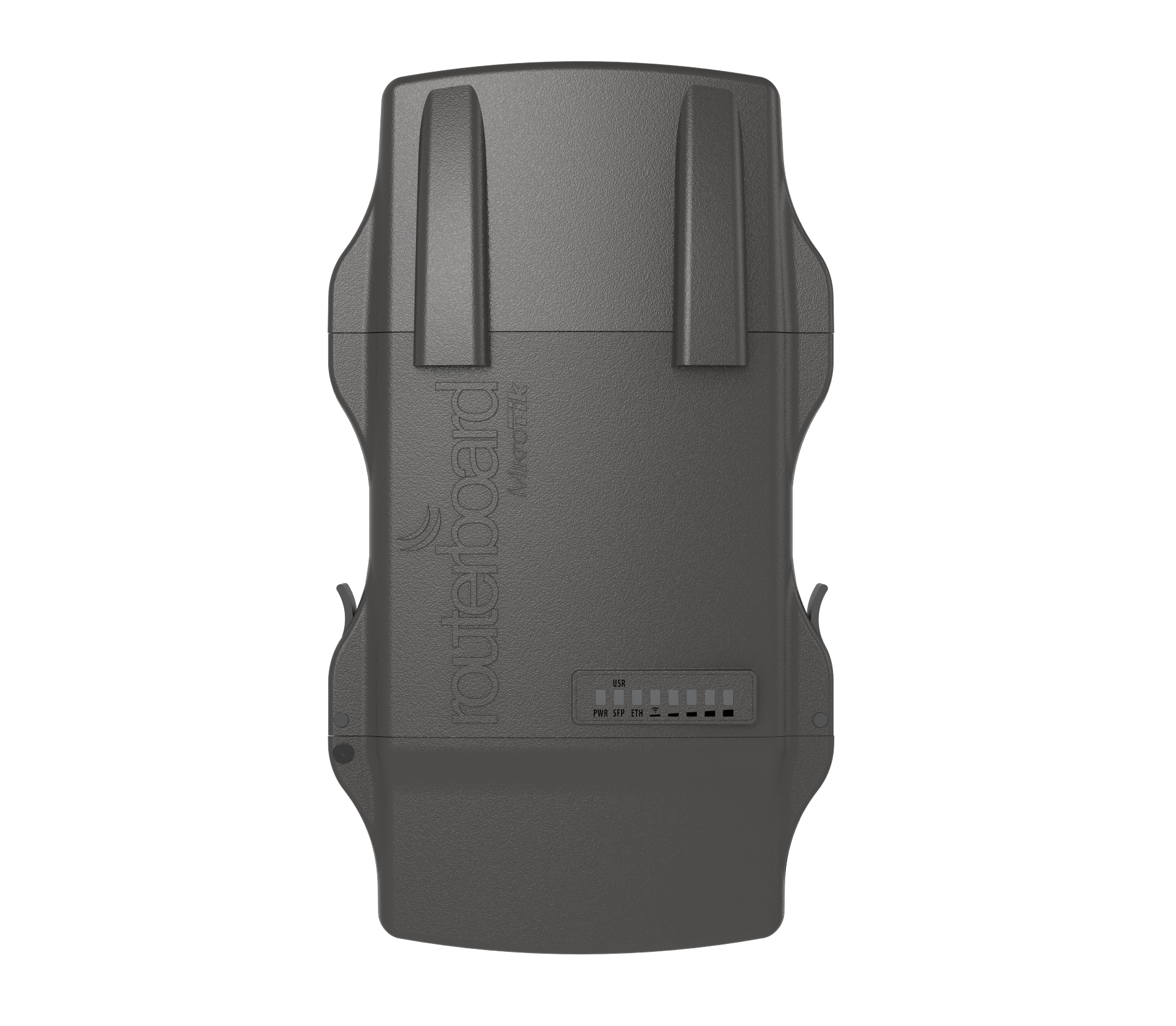

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!
