Specification

Product code	RBOmniTikPG-5HacD
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	720 MHz
Switch chip model	QCA8337
Dimensions	416 x 129 x 58 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$139.00

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	66 W
Max power consumption without attachments	18 W
PoE in	Passive PoE
Cooling type	Passive
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether2-Ether5
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	2 A

Wireless specifications

Details
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	7.5
Wireless 5 GHz chip model	QCA9892
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Description

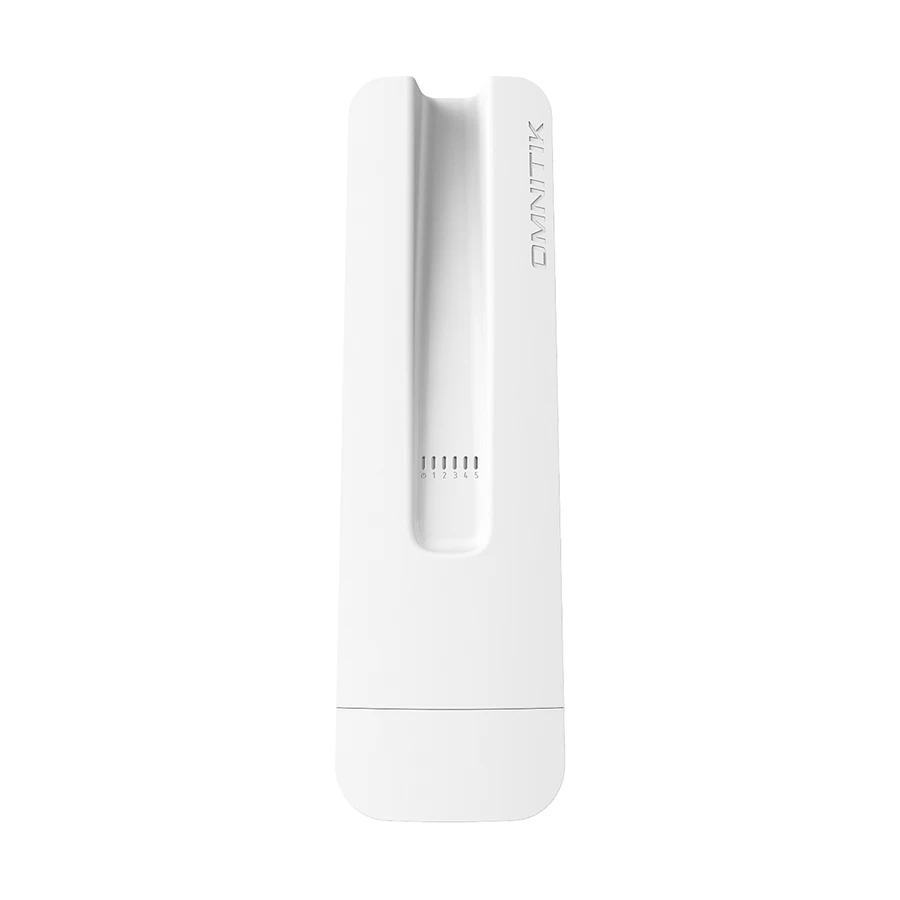

OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
