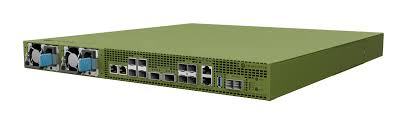

MikroTik ROSE Data server (RDS)
-
NG # 006712-HW-MICROTIK-012
Manufactured by:
Specification
Product code RDS2216-2XG-4S+4XS-2XQ Architecture ARM 64bit CPU AL73400 CPU core count 16 CPU nominal frequency 2000 MHz Switch chip model 98DX4310 Dimensions 476 x 443 x 44 mm RouterOS license 6 Operating System RouterOS v7 (Special ROSE edition) Size of RAM 32 GB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -20°C to 50°C IPsec hardware acceleration Yes Suggested price $1950.00
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 286 W |
| Max power consumption without attachments | 105 W |
| Cooling type | 10 fans |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G/2.5G/5G/10G Ethernet ports | 2 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
| Number of 25G SFP28 ports | 4 |
| Number of 100G QSFP28 ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 2 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
| Number of M.2 slots | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Description
RDS is a high-performance, all-in-one storage, 100G networking, and container platform designed for enterprise environments. Featuring 20 U.2 NVMe storage slots and a special RouterOS Edition for Storage & Compute (ROSE).
