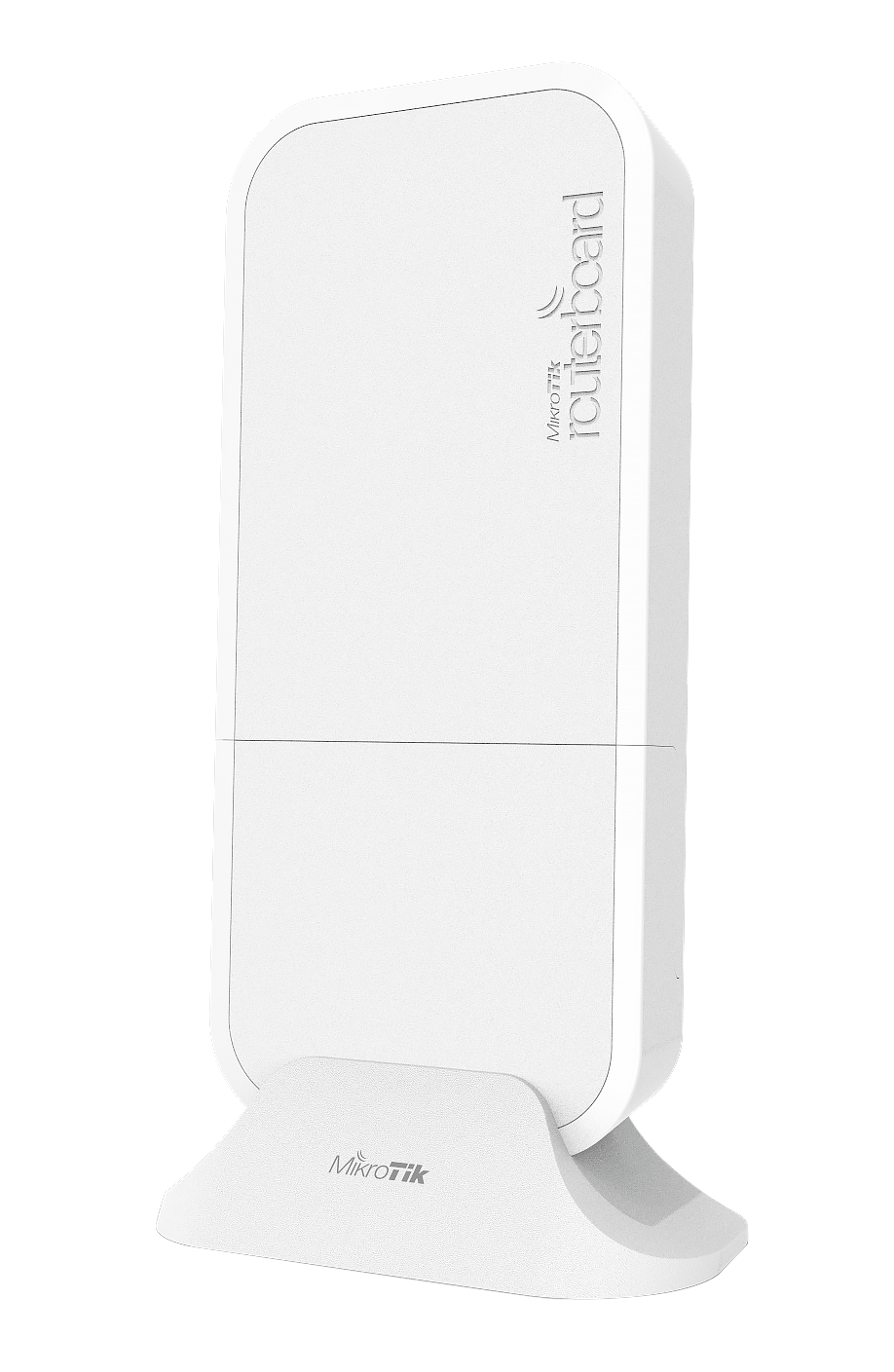

MikroTik wAP R
-
NG # 006719-HW-MICROTIK-019
Manufactured by:
The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.
Specification
Product code RBwAPR-2nD Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650 MHz Dimensions 185x85x30 mm RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 60°C Suggested price $89.00
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (PoE-IN, Automotive, DC jack) |
| DC jack input Voltage | 9-30 V |
| Automotive input Voltage | 9-30 V |
| Max power consumption | 6 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 9-30 V |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, E-MARK, EAC, ROHS |
| IP | IP54 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Description
The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.
