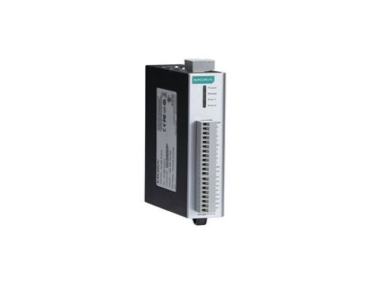

MOXA ioLogik E1200 Series Universal Controllers & I/Os
-
NG # 2454-HW-MAXO-021
Manufactured by:
In the rapidly evolving field of industrial automation, having reliable and flexible controllers is crucial. The MOXA ioLogik E1200 Series Universal Controllers & I/Os stand out as exceptional solutions designed to meet a variety of automation needs. These devices offer a perfect blend of versatility, efficiency, and ease of use, making them indispensable for modern industrial environments.
Specification
Category Specification Model Digital Input Channels 16 E1210 8 E1212, E1213 6 E1214 4 E1242 Digital Output Channels 16 E1211 4 E1213 Configurable DIO Channels 8 E1212 4 E1213, E1242 Relay Channels 6 E1214 Analog Input Channels 8 E1240 4 E1242 Analog Output Channels 4 E1241 RTD Channels 6 E1260 Thermocouple Channels 8 E1262 Isolation 3k VDC or 2k Vrms All models Buttons Reset button All models Digital Inputs Connector: Screw-fastened Euroblock terminal Sensor Type: Dry contact, Wet contact (NPN or PNP) I/O Mode: DI or event counter Dry Contact: On: short to GND, Off: open Wet Contact (DI to COM): On: 10 to 30 VDC, Off: 0 to 3 VDC Counter Frequency: 250 Hz Digital Filtering Time Interval: Software configurable Points per COM: E1210/E1212: 8, E1213: 12, E1214: 6, E1242: 4 Digital Outputs Connector: Screw-fastened Euroblock terminal I/O Type: Sink (E1211/E1212/E1242), Source (E1213) I/O Mode: DO or pulse output Current Rating: 200 mA (E1211/E1212/E1242), 500 mA (E1213) Pulse Output Frequency: 500 Hz (max.) Over-Current Protection: 2.6 A (E1211/E1212/E1242), 1.5 A (E1213) Over-Temperature Shutdown: 175°C (typical), 150°C (min.) Over-Voltage Protection: 35 VDC Relays Connector: Screw-fastened Euroblock terminal Type: Form A (N.O.) power relay I/O Mode: Relay or pulse output Pulse Output Frequency: 0.3 Hz at rated load (max.) Contact Current Rating: 5 A @ 30 VDC, 250 VAC, 110 VAC Contact Resistance: 100 milli-ohms (max.) Mechanical Endurance: 5,000,000 operations Electrical Endurance: 100,000 operations @ 5 A resistive load Breakdown Voltage: 500 VAC Initial Insulation Resistance: 1,000 mega-ohms (min.) @ 500 VDC Note: Ambient humidity must be non-condensing and remain between 5 and 95% Analog Inputs Connector: Screw-fastened Euroblock terminal I/O Mode: Voltage/Current I/O Type: Differential Resolution: 16 bits Input Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C Sampling Rate: 12 samples/sec per module (E1240: up to 8 channels, E1242: up to 4 channels) Built-in Resistor for Current Input: 120 ohms Input Impedance: 10 mega-ohms (min.) Analog Outputs Connector: Screw-fastened Euroblock terminal I/O Mode: Voltage/Current Output Range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA Resolution: 12-bit Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C Load (Current Mode): Internal power: 400 ohms (max.), 24 V external power: 1000 ohms (max.) Voltage Output Short-Circuit Protection: 10 mA RTDs Connector: Screw-fastened Euroblock terminal Sensor Type: PT1000, PT50, PT100, PT200, PT500 Resistance Type: 310, 620, 1250, 2200 ohms Input Connection: 2- or 3-wire Sampling Rate: 12 samples/sec per module (up to 6 channels) Resolution: 0.1°C or 0.1 ohms Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C Thermocouples Connector: Screw-fastened Euroblock terminal Sensor Type: J, K, T, E, R, S, B, N Millivolt Type: ±19.532 mV, ±39.062 mV, ±78.126 mV Fault and Over-Voltage Protection: -35 to +35 VDC (power off), -25 to +30 VDC (power on) Resolution: 16 bits Millivolt Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C TC Accuracy: Types J, T, E, S, B: ±5°C, Types K, R, N: ±8°C CJC Accuracy: ±0.5°C @ 25°C, ±1.5°C @ -40 to 75°C Sampling Rate: 12 samples/sec per module (up to 8 channels) Input Impedance: 10 mega-ohms (min.) Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector): 2, 1 MAC address (Ethernet bypass) Magnetic Isolation Protection: 1.5 kV (built-in) Ethernet Software Features Configuration Options: Web Console (HTTP), Windows Utility (ioSearch), MCC Tool Industrial Protocols: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter Management: RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP MIB: Device Settings MIB Security: Access control list Security Functions Authentication: Local database LED Interface LED Indicators: Power, Ready, Port 1, Port 2 Modbus TCP Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 Mode: Server (Slave) Max. No. of Client Connections: 10 EtherNet/IP Mode: Adapter Max. No. of Scanner Connections: 9 (read-only), 1 (read/write) Power Parameters Power Connector: Screw-fastened Euroblock terminal No. of Power Inputs: 1 Input Voltage: 12 to 36 VDC Power Consumption: 110 mA to 200 mA @ 24 VDC depending on model Physical Characteristics Housing: Plastic Dimensions: 27.8 x 124 x 84 mm Weight: 200 g Installation: DIN-rail mounting, Wall mounting Wiring: I/O cable, 16 to 26 AWG; Power cable, 12 to 24 AWG Environmental Limits Operating Temperature: -10 to 60°C (Standard), -40 to 75°C (Wide Temp.) Storage Temperature: -40 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing) Altitude: 4000 m Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2/3/4/5/6/8 Hazardous Locations: ATEX, Class I Division 2 Safety: UL 508 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Declaration Green Product: RoHS, CRoHS, WEEE MTBF ioLogik E1210: 671,345 hrs ioLogik E1211: 923,027 hrs ioLogik E1212: 561,930 hrs ioLogik E1213: 715,256 hrs ioLogik E1214: 808,744 hrs ioLogik E1240: 474,053 hrs ioLogik E1241: 888,656 hrs ioLogik E1242: 502,210 hrs ioLogik E1260: 660,260 hrs ioLogik E1262: 631,418 hrs Standards Telcordia SR332
Description
Advanced Networking Capabilities
The MOXA ioLogik E1200 Series supports multiple network protocols, including Modbus/TCP and EtherNet/IP, facilitating easy integration into existing systems. Moreover, the dual Ethernet ports enable daisy-chain topology, reducing cabling costs and simplifying network design.
Flexible I/O Configuration
With a wide range of I/O modules available, the E1200 Series allows for customized configuration tailored to specific application requirements. Whether you need digital inputs, analog outputs, or a mix of both, the E1200 Series has you covered.
Robust and Reliable Performance
Built to withstand harsh industrial environments, the MOXA ioLogik E1200 Series features an industrial-grade design with high EMC resistance and wide operating temperature ranges. This ensures reliable performance even under extreme conditions.
User-Friendly Interface and Setup
Setting up the E1200 Series is a breeze, thanks to its intuitive web-based interface and easy-to-use configuration tools. Additionally, the controllers support remote monitoring and management, allowing for efficient operation and maintenance.
