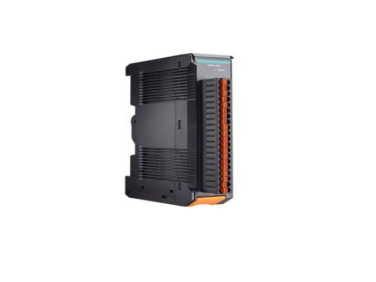

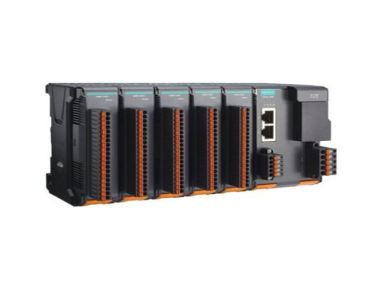

MOXA ioThinx 4500 Series Advanced Controllers & I/Os
-
NG # 2455-HW-MAXO-022
Manufactured by:
In today’s rapidly advancing industrial landscape, efficient and reliable automation solutions are essential for optimizing operations. The MOXA ioThinx 4500 Series Advanced Controllers & I/Os are designed to meet these needs, providing robust, scalable, and versatile options for various industrial applications. These advanced controllers and I/Os enhance operational efficiency, making them a vital asset for modern industrial environments.
Specification
Specification Details Isolation 3k VDC or 2k Vrms Serial Interface – Connector Spring-type Euroblock terminal – No. of Ports 4 – Serial Standards RS-232, RS-422, RS-485-2w – Baudrate 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps – Data Bits 7, 8 – Stop Bits 1, 2 – Parity Even, None, Odd – Flow Control RTS/CTS (RS-232 only), XON/XOFF – Pull High/Low Resistor for RS-485 10 kilo-ohm – RS-485 Data Direction Control ADDC® (automatic data direction control) Serial Signals – RS-232 TxD, RxD, RTS, CTS, GND – RS-422 Tx+, Tx-, Rx+, Rx-, GND – RS-485-2w Data+, Data-, GND Power Consumption – System Power 74.1 mA @ 12 VDC
37.05 mA @ 24 VDC– Field Power 140.4 mA @ 12 VDC
59.8 mA @ 24 VDCPhysical Characteristics – Housing Plastic – Dimensions 26.4 x 99 x 65.5 mm (1.04 x 3.9 x 2.58 in) – Weight 115 g (0.254 lb) – Installation DIN-rail mounting – Wiring Serial cable, 18 to 24 AWG – Strip Length 9 to 10 mm Environmental Limits – Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)– Storage Temperature (package included) -40 to 85°C (-40 to 185°F) – Ambient Relative Humidity 5 to 95% (non-condensing) – Altitude Up to 2000 m Standards and Certifications – EMC EN 55032/35 – EMI CISPR 32, FCC Part 15B Class A – EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF– Shock IEC 60068-2-27 – Vibration IEC 60068-2-6 Declaration – Green Product RoHS, CRoHS, WEEE MTBF 916,671 hrs Standards Telcordia SR332
Description
Key Features of MOXA ioThinx 4500
The MOXA ioThinx 4500 Series is renowned for its impressive features:
Advanced Control Capabilities
Equipped with powerful processors, the MOXA ioThinx 4500 Series ensures high-speed data processing and real-time control, essential for modern industrial automation.
Modular Design
The modular design of these controllers and I/Os allows for easy expansion and customization, providing flexibility to meet specific application needs.
High-Speed Processing
Supporting high-speed data acquisition and processing, the MOXA ioThinx 4500 enhances the efficiency and responsiveness of your industrial systems.
Design and Build Quality
Built with industrial-grade materials, the MOXA ioThinx 4500 Series is designed to withstand harsh environmental conditions. The robust construction ensures long-term durability and consistent performance, making these controllers and I/Os a reliable choice for demanding industrial applications.
Installation and Setup
The installation process for the MOXA ioThinx 4500 is straightforward and user-friendly. The package includes a comprehensive step-by-step guide, minimizing setup time and effort. Required tools are minimal, allowing for quick and easy installation.
Performance and Reliability
The MOXA ioThinx 4500 Series has undergone rigorous testing to ensure high performance and reliability. Users report impressive uptime and consistent operation, even in challenging industrial environments, highlighting the system’s reliability.
