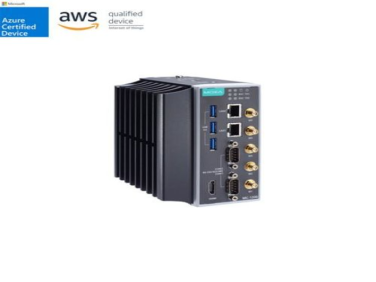

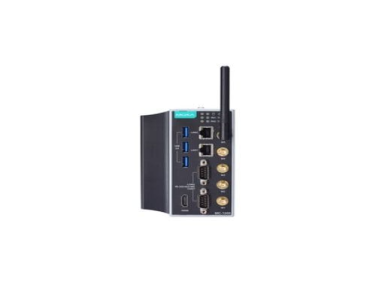

MOXA MC-1220-KL1 Industrial Computing Device
2444-HW-MAXO-010
Overview
The MOXA MC-1220-KL1 Industrial Computing Device industrial computing device is an exceptional choice for any industry requiring robust, reliable, and high-performance computing solutions. Its advanced features, durable design, and versatility make it a standout product in the market. Investing in the MOXA MC-1220-KL1 means enhanced productivity, reduced downtime, and a cost-effective solution for your industrial automation needs.
| Component | Details |
|---|---|
| CPU | IntelĀ® CeleronĀ® Processor 3965U (2M Cache, 2.20 GHz) |
| Storage Slot | mSATA slots x 1, SATA 3.0, internal mini-PCIe socket |
| System Memory Slot | SODIMM DDR4 slot x 2, up to 32 GB max. |
| Supported OS | Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS) |
| Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS) | |
| Graphics Controller | IntelĀ® HD Graphics 610 |
| Computer Interface | |
| Video Input | HDMI x 1, up to 3840 x 2160 resolution at 30 Hz |
| USB 3.0 | USB 3.0 hosts x 3, type-A connectors |
| Buttons | Reset button |
| Serial Interface | |
| Connector | DB9 male |
| Serial Standards | RS-232/422/485 (software selectable) |
| Serial Ports | 2 x RS-232/422/485 |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 115.2 kbps |
| ESD Protection | 4 kV contact, 8 kV air |
| Ethernet Interface | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 2 |
| LED Indicators | |
| System | Power x 1 |
| Serial | 2 per port (Tx, Rx) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Physical Characteristics | |
| Installation | Wall mounting (with optional kit), DIN-rail mounting |
| Housing | Metal |
| Dimensions | 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in) |
| Weight | Product only: 1.40 kg (0.63 lb) |
| Declaration | Green Product |
| RoHS, CRoHS, WEEE | |
| Power Parameters | |
| Power Button | ON/OFF (rear panel) |
| Reset Button | Yes |
| Input Voltage | 9 to 36 VDC |
| Input Current | 8 A @ 9 VDC, 2 A @ 36 VDC |
| Power Consumption | 72 W |
| Environmental Limits | |
| Operating Temperature | -40 to 70Ā°C (-40 to 158Ā°F) |
| Storage Temperature | -40 to 75Ā°C (-40 to 167Ā°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Standards and Certifications | |
| Safety | UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1 |
| EMC | EN 55032/35, CISPR 32, FCC Part 15B Class A |
| Hazardous Locations | ATEX Zone 2, IECEx Zone 2, Class I Division 2 |
| Reliability | |
| Alert Tools | Built-in RTC (real-time clock) with lithium battery backup |
| MTBF | 510,913 hrs |
| Standards | Telcordia (Bellcore), GB |
High Performance and Reliability
Firstly, the MOXA MC-1220-KL1 boasts a powerful IntelĀ® Coreā¢ i7 processor, ensuring high performance and reliability. This makes it ideal for tasks that require significant computational power.
Robust and Durable Design
Additionally, the device is built to withstand harsh industrial environments. Its rugged construction ensures durability and longevity, even in the most challenging conditions.
Versatile Connectivity Options
Furthermore, the MOXA MC-1220-KL1 offers a wide range of connectivity options, including multiple USB ports, serial ports, and Ethernet interfaces. This versatility allows for seamless integration with various industrial systems.
Advanced Security Features
Moreover, security is a top priority. The MOXA MC-1220-KL1 includes advanced security features such as TPM 2.0, ensuring that your data remains safe and secure.
Easy Maintenance and Upgradability
Equally important, the device is designed for easy maintenance and upgradability. Its modular design allows for quick and straightforward component replacements, minimizing downtime.
Benefits of Using the MOXA MC-1220-KL1
Enhanced Productivity
Firstly, the high processing power and robust design of the MOXA MC-1220-KL1 significantly enhance productivity. This allows for more efficient and effective operations, leading to increased output and profitability.
Reduced Downtime
Secondly, the deviceās durability and easy maintenance reduce downtime. Consequently, this leads to more consistent and reliable operations.
Cost-Effective Solution
Furthermore, the MOXA MC-1220-KL1 offers a cost-effective solution for industrial computing needs. Its longevity and reliability translate to lower long-term costs, making it a wise investment.
