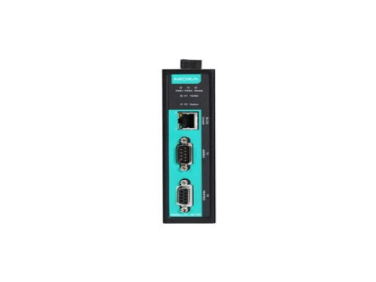

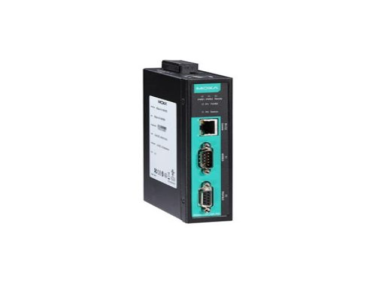

MOXA MGate 4101-MB-PBS Series Fieldbus Gateways

NG # 2458-HW-MAXO-025

Manufactured by:

This seller generally responds in under 48 hours

The MOXA MGate 4101-MB-PBS Series Fieldbus Gateways are an outstanding choice for integrating Modbus and PROFIBUS networks. Their reliable performance, advanced features, and ease of use make them a superior solution for a variety of industrial applications. By choosing the MOXA MGate 4101-MB-PBS Series, you ensure seamless network integration, enhanced communication efficiency, and robust security for your industrial automation systems.

Add to favorites | Compare this product

Specification

Category	Specification
Ethernet Interface	10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features	Industrial Protocols: PROFINET IO Device, Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Adapter Configuration Options: Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client MIB: RFC1213, RFC1317 Time Management: NTP Client
Security Functions	Authentication: Local database Encryption: HTTPS, AES-128, AES-256, SHA-256 Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Serial Interface	Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) No. of Ports: 1 Connector: DB9 male Serial Standards: RS-232/422/485 Baudrate: 50 bps to 921.6 kbps Data Bits: 7, 8 Parity: None, Even, Odd, Space, Mark Stop Bits: 1, 2 Flow Control: DTR/DSR, RTS/CTS RS-485 Data Direction Control: Automatic Data Direction Control (ADDC) Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485: 120 ohms Isolation: 2 kV (I models)
Serial Signals	RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features	Configuration Options: MGate Manager Industrial Protocols: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, PROFIBUS DP-V0 Slave
Modbus RTU/ASCII	Mode: Master, Slave Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 Max. No. of Commands: 100 Input Data Size: 7744 bytes Output Data Size: 7744 bytes
PROFIBUS Interface	Industrial Protocols: PROFIBUS DP No. of Ports: 1 Connector: DB9 female Baudrate: 9600 bps to 12 Mbps Isolation: 2 kV (built-in) Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
PROFIBUS	Rotary Switch: PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration) Mode: DP-V0 Slave Max. No. of Master Connections: 1 Max. No. of PROFIBUS I/O Modules: 24 per page Max. No. of PROFIBUS Pages: 32 Input Data Size: 7744 bytes Output Data Size: 7744 bytes
Power Parameters	Input Voltage: 12 to 48 VDC Input Current: 275 mA @ 12 VDC Power Connector: Screw-fastened Euroblock terminal
Relays	Contact Current Rating: Resistive load: 1 A @ 24 VDC
Physical Characteristics	Housing: Metal Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) Weight: 500 g (1.10 lb) IP Rating: IP30 Note: It is recommended to attach the M3x3mm Nylok screws at the rear side
Environmental Limits	Operating Temperature: MGate 4101I-MB-PBS: 0 to 60°C (32 to 140°F) MGate 4101I-MB-PBS-T: -40 to 75°C (-40 to 167°F) MGate 4101-MB-PBS: 0 to 60°C (32 to 140°F) MGate 4101-MB-PBS-T: -40 to 75°C (-40 to 167°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF Safety: IEC 60950-1, UL 60950-1, IEC 62368-1, UL 62368-1 Hazardous Locations: ATEX, Class I Division 2, IECEx Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6, IEC 60068-2-64
MTBF	Time: MGate 4101-MB-PBS models: 1,537,948 hrs MGate 4101I-MB-PBS models: 1,315,666 hrs Standards: Telcordia SR332

Description

Seamless Network Bridging

Firstly, the MOXA MGate 4101-MB-PBS Series excels in bridging Modbus and PROFIBUS networks. This seamless integration ensures efficient and reliable data communication between different network protocols, which is crucial for modern industrial systems.

User-Friendly Configuration

Moreover, these gateways are designed with ease of use in mind, featuring intuitive configuration tools. The web-based interface simplifies the setup process, enabling quick and hassle-free deployment. This user-friendly design saves time and reduces the complexity of network integration.

High Performance and Stability

Transitioning to performance, the MOXA MGate 4101-MB-PBS Series offers exceptional reliability and stability. These gateways support high data transfer rates, ensuring that your network operates smoothly even under heavy loads. This high performance is essential for maintaining the efficiency of industrial processes.

Comprehensive Diagnostic Tools

Furthermore, the MOXA MGate 4101-MB-PBS Series includes advanced diagnostic tools. These tools allow for real-time monitoring and troubleshooting, helping to quickly identify and resolve any network issues. This capability minimizes downtime and keeps your operations running smoothly.

Enhanced Security Features

In today’s interconnected industrial environments, security is a top priority. The MOXA MGate 4101-MB-PBS Series is equipped with robust security features, including password protection and data encryption, to safeguard your network against unauthorized access and potential threats.

Compact and Durable Design

Additionally, the compact and rugged design of the MOXA MGate 4101-MB-PBS Series makes them suitable for various industrial settings. These gateways are built to withstand harsh conditions, including extreme temperatures and electromagnetic interference, ensuring long-term reliability and durability.

Versatile Application Scenarios

Manufacturing Automation

For manufacturing automation, the MOXA MGate 4101-MB-PBS Series provides seamless communication between Modbus and PROFIBUS devices. This integration enhances operational efficiency and ensures reliable data exchange, which is vital for automated manufacturing processes.

Energy and Utilities

In the energy and utilities sector, these gateways facilitate efficient network integration, optimizing the management of energy distribution systems. They ensure reliable communication between different network protocols, helping to enhance system reliability and performance.

Transportation Systems

In transportation systems, the MOXA MGate 4101-MB-PBS Series ensures robust and reliable network connectivity. These gateways can be used in traffic management systems, railway communication networks, and more, providing seamless data transmission in critical applications.

Building Automation

Building automation systems can greatly benefit from the MOXA MGate 4101-MB-PBS Series. These gateways enable efficient communication between various devices and systems, improving overall building management and energy efficiency.
