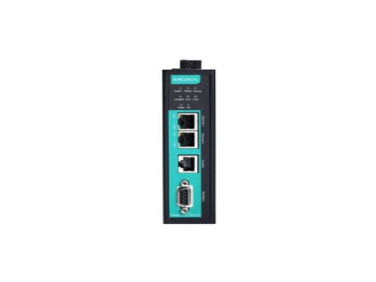

MOXA MGate 5102-PBM-PN Series PROFINET Gateways
-
NG # 2460-HW-MAXO-028
Manufactured by:
The MOXA MGate 5102-PBM-PN Series PROFINET Gateways are a superior choice for integrating PROFIBUS and PROFINET networks. Their reliable performance, advanced features, and ease of use make them an excellent solution for various industrial applications. By choosing MOXA MGate 5102-PBM-PN Series, you ensure seamless network integration, enhanced communication efficiency, and robust security for your industrial automation systems.
Specification
Category Specification CPU 32-bit Arm Core Memory Flash: 2 MB
SDRAM: 4 MB
microSD Slot: Up to 32 GB (SD 2.0 compatible)Input/Output Interface Configurable DIO Channels (by software): 1
Digital Input Channels: 1
Digital Output Channels: 1Ethernet Interface 10/100BaseT(X) Ports (RJ45 connector): 2 (auto MDI/MDI-X connection)
Magnetic Isolation Protection: 1.5 kV (built-in)Ethernet Software Features Configuration Options: Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console
Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB: RFC1213, RFC1317
Time Management: NTP Client
Industrial Protocols: PROFINET IO DeviceSecurity Functions Authentication: Local database
Encryption: HTTPS, AES-128, AES-256, SHA-256
Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)Serial Interface Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Industrial Protocols: PROFIBUS DP-V1 Master
Serial Standards: TTL
Operation Modes: MiiNePort E1 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode
MiiNePort E1-SDK: Real COM mode, Ethernet Modem mode, Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217
Baudrate: MiiNePort E1 Series: 50 bps to 230.4 kbps
MiiNePort E1-H/-SDK Series: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFFPROFIBUS Interface Industrial Protocols: PROFIBUS DP
No. of Ports: 1
Connector: DB9 female
Baudrate: 9600 bps to 12 Mbps
Isolation: 2 kV (built-in)
Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Mode: DP-V1 Master
Input Data Size: 1024 bytes
Output Data Size: 1024 bytesPROFINET Mode: IO Device
Max. No. of IO Controller Connections: 1 (for read/write)
Input Data Size: 1024
Output Data Size: 1024Power Parameters Input Voltage: 12 to 48 VDC
Input Current: 430 mA @ 12 VDC
Power Connector: Screw-fastened Euroblock terminalRelays Contact Current Rating: Resistive load: 2 A @ 30 VDC Physical Characteristics Housing: Metal
IP Rating: IP30
Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight: 500 g (1.10 lb)Environmental Limits Operating Temperature: MGate 5102-PBM-PN: 0 to 60°C (32 to 140°F)
MGate 5102-PBM-PN-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and Certifications EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
Safety: IEC 60950-1, EN 62368-1, UL 508
Hazardous Locations: ATEX, Class I Division 2, IECEx
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6, IEC 60068-2-64MTBF Time: 980,417 hrs
Standards: Telcordia SR332
Description
Reliable Network Bridging
Firstly, the MOXA MGate 5102-PBM-PN Series excels in its core function of bridging PROFIBUS and PROFINET networks. This capability ensures smooth and reliable data communication between these two protocols, which is essential for modern industrial automation systems.
Easy Configuration and Management
Moreover, these gateways are designed with user-friendly configuration and management tools. The web-based interface allows for straightforward setup and monitoring, reducing the time and effort required for deployment.
High Performance and Stability
Transitioning to performance, the MOXA MGate 5102-PBM-PN Series offers high stability and robust performance, even in demanding industrial environments. The gateways support up to 4000 PROFIBUS DP slaves and can handle large amounts of data with ease.
Advanced Diagnostic Tools
Furthermore, advanced diagnostic tools are integrated into the MOXA MGate 5102-PBM-PN Series. These tools help in identifying and troubleshooting network issues quickly, ensuring minimal downtime and maintaining operational efficiency.
Security Features
In today’s connected industrial environments, security is a critical concern. These gateways come with enhanced security features, including access control and data encryption, to protect your network from unauthorized access and data breaches.
Compact and Durable Design
Additionally, the MOXA MGate 5102-PBM-PN Series features a compact and durable design, making it suitable for various industrial settings. The rugged construction ensures that the gateways can withstand harsh conditions, including extreme temperatures and electromagnetic interference.
Versatile Application Scenarios
Industrial Automation
For industrial automation applications, the MOXA MGate 5102-PBM-PN Series provides seamless integration of PROFIBUS and PROFINET networks. This integration enhances communication efficiency and reliability, critical for automated manufacturing processes.
Power and Energy Management
In the power and energy sectors, these gateways facilitate the efficient management of energy distribution systems. By ensuring reliable data communication between different network protocols, they help optimize energy usage and enhance system reliability.
Transportation and Infrastructure
In transportation and infrastructure projects, the MOXA MGate 5102-PBM-PN Series ensures robust network connectivity. Whether it’s for traffic management systems or railway communication networks, these gateways offer reliable and secure data transfer.
Oil and Gas Industry
The oil and gas industry can greatly benefit from the MOXA MGate 5102-PBM-PN Series. These gateways provide a reliable communication bridge in complex industrial environments, ensuring seamless data flow and enhancing operational safety.
