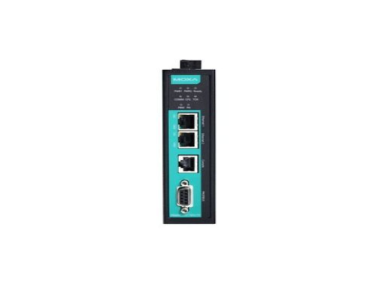

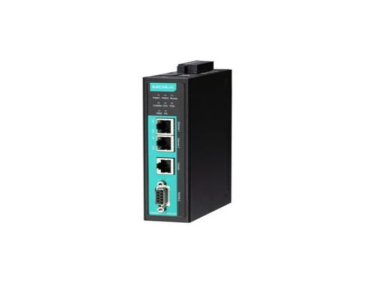

MOXA MGate 5103 Series EtherNet/IP Gateways
-
NG # 2459-HW-MAXO-027
Manufactured by:
The MOXA MGate 5103 Series EtherNet/IP Gateways are an outstanding choice for integrating EtherNet/IP and Modbus RTU/ASCII networks. Their reliable performance, advanced features, and ease of use make them a superior solution for a variety of industrial applications. By choosing the MOXA MGate 5103 Series, you ensure seamless network integration, enhanced communication efficiency, and robust security for your industrial automation systems.
Specification
| Category | Specification |
|---|---|
| Ethernet Interface | 10/100BaseT(X) Ports (RJ45 connector): 2 Auto MDI/MDI-X connection Magnetic Isolation Protection: 1.5 kV (built-in) |
| Ethernet Software Features | Industrial Protocols: PROFINET IO Device, Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Adapter Configuration Options: Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client MIB: RFC1213, RFC1317 Time Management: NTP Client |
| Security Functions | Authentication: Local database Encryption: HTTPS, AES-128, AES-256, SHA-256 Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Serial Interface | Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) No. of Ports: 1 Connector: DB9 male Serial Standards: RS-232/422/485 Baudrate: 50 bps to 921.6 kbps Data Bits: 7, 8 Parity: None, Even, Odd, Space, Mark Stop Bits: 1, 2 Flow Control: RTS Toggle (RS-232 only), RTS/CTS RS-485 Data Direction Control: Automatic Data Direction Control (ADDC) Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485: 120 ohms Isolation: 2 kV (built-in) |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND |
| Serial Software Features | Configuration Options: Serial Console Industrial Protocols: Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
| Modbus RTU/ASCII | Mode: Master, Slave Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 Max. No. of Commands: 128 Input Data Size: 512 bytes Output Data Size: 512 bytes |
| Modbus TCP | Mode: Client (Master), Server (Slave) Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23 Max. No. of Client Connections: 16 Max. No. of Server Connections: 32 Max. No. of Commands: 128 Input Data Size: 512 bytes Output Data Size: 512 bytes |
| PROFINET | Mode: IO Device Max. No. of IO Controller Connections: 1 (for read/write) Input Data Size: 512 bytes Output Data Size: 512 bytes |
| EtherNet/IP | Mode: Adapter CIP Objects Supported: Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port Max. No. of Scanner Connections: 1 (for read-only), 1 (for read/write) Input Data Size: 496 bytes Output Data Size: 496 bytes |
| Memory | microSD Slot: Up to 32 GB (SD 2.0 compatible) |
| Power Parameters | Input Voltage: 12 to 48 VDC Input Current: 455 mA @ 12 VDC Power Connector: Screw-fastened Euroblock terminal |
| Relays | Contact Current Rating: Resistive load: 2 A @ 30 VDC |
| Physical Characteristics | Housing: Metal IP Rating: IP30 Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) Weight: 507 g (1.12 lb) |
| Environmental Limits | Operating Temperature: MGate 5103: 0 to 60°C (32 to 140°F) MGate 5103-T: -40 to 75°C (-40 to 167°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class B EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF Safety: EN 62368-1, UL 508 Hazardous Locations: ATEX, Class I Division 2, IECEx Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| MTBF | Time: 859,422 hrs Standards: Telcordia SR332 |
Description
Seamless Network Integration
Firstly, the MOXA MGate 5103 Series excels in integrating EtherNet/IP with Modbus RTU/ASCII networks. This seamless integration ensures efficient and reliable data communication between different network protocols, which is crucial for industrial automation systems.
User-Friendly Configuration
Moreover, these gateways are designed for ease of use, featuring intuitive configuration tools. The web-based interface simplifies the setup process, enabling quick and hassle-free deployment. This user-friendly design saves time and reduces the complexity of network integration.
High Performance and Reliability
Transitioning to performance, the MOXA MGate 5103 Series offers exceptional reliability and stability. These gateways support high data transfer rates, ensuring that your network operates smoothly even under heavy loads. This high performance is essential for maintaining the efficiency of industrial processes.
Comprehensive Diagnostic Tools
Furthermore, the MOXA MGate 5103 Series includes advanced diagnostic tools. These tools allow for real-time monitoring and troubleshooting, helping to quickly identify and resolve any network issues. This capability minimizes downtime and keeps your operations running smoothly.
Enhanced Security Features
In today’s interconnected industrial environments, security is a top priority. The MOXA MGate 5103 Series is equipped with robust security features, including password protection and data encryption, to safeguard your network against unauthorized access and potential threats.
Compact and Durable Design
Additionally, the compact and rugged design of the MOXA MGate 5103 Series makes them suitable for various industrial settings. These gateways are built to withstand harsh conditions, including extreme temperatures and electromagnetic interference, ensuring long-term reliability and durability.
Versatile Application Scenarios
Manufacturing Automation
For manufacturing automation, the MOXA MGate 5103 Series provides seamless communication between EtherNet/IP and Modbus RTU/ASCII devices. This integration enhances operational efficiency and ensures reliable data exchange, which is vital for automated manufacturing processes.
Energy and Utilities
In the energy and utilities sector, these gateways facilitate efficient network integration, optimizing the management of energy distribution systems. They ensure reliable communication between different network protocols, helping to enhance system reliability and performance.
Transportation Systems
In transportation systems, the MOXA MGate 5103 Series ensures robust and reliable network connectivity. These gateways can be used in traffic management systems, railway communication networks, and more, providing seamless data transmission in critical applications.
Building Automation
Building automation systems can greatly benefit from the MOXA MGate 5103 Series. These gateways enable efficient communication between various devices and systems, improving overall building management and energy efficiency.
