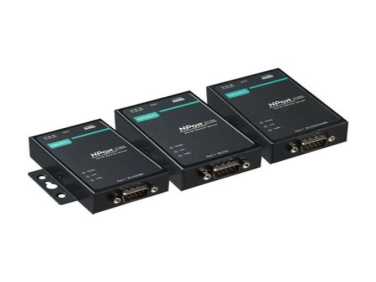

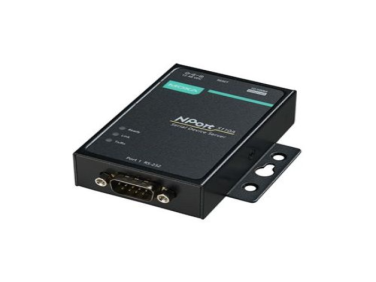

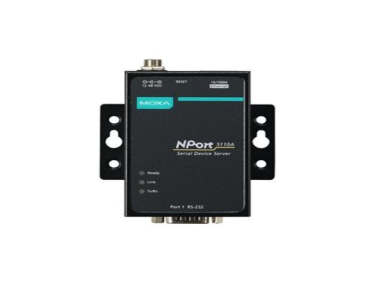

MOXA NPort 5150A Serial Device Server
-
NG # 2462-HW-MAXO-030
Manufactured by:
The MOXA NPort 5150A Series Serial Device Server are a robust and reliable solution for enhancing industrial communication. With features like seamless serial-to-Ethernet conversion, redundant power inputs, easy configuration, and secure data transmission, these device servers provide exceptional performance in various applications. Whether for factory automation, transportation systems, power and utilities, or building automation, the MOXA NPort 5150A Series ensures reliable and efficient data communication.
Specification
Category Specifications Ethernet Interface Ports 10/100BaseT(X) Ports (RJ45 connector), 1 Protection Magnetic Isolation Protection, 1.5 kV (built-in) Ethernet Software Features Configuration Options Serial Console Management DHCP Client, ARP, BOOTP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Filter, IGMP v1/v2 Windows Real COM Drivers Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, NT Windows Embedded CE Windows CE 6.0 and 5.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, 2.4.x Fixed TTY Drivers macOS versions: 14, 13, 12, 11, 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Arm®-based Platform Support Windows 11, Linux kernel 6.x, 5.x, and 4.x, macOS 14, 13, 12, and 11 Virtual Machine VMWare ESXi (Windows 11/10), VMware Fusion (Windows on macOS 14, 13, 12, 11, 10.1x), Parallels Desktop (Windows on macOS 14, 13, 12, 11, 10.1x) Android API Android 3.1.x and later MIB RFC1213, RFC1317 Security Functions Authentication Local database Encryption HTTPS, AES-128, SHA-1, RSA-1024, SHA-256 Security Protocols HTTPS (TLS 1.2) Serial Interface Connector DB9 male No. of Ports 1 Serial Standards RS-232, RS-422, RS-485 Operation Modes Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP Baudrate Supports standard baudrates: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms RS-485 Data Direction Control ADDC (automatic data direction control) Terminator for RS-485 120 ohms Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND Power Parameters No. of Power Inputs 1 Input Current 92.4 mA @ 12 VDC Input Voltage 12 to 48 VDC Source of Input Power Power input jack Reliability Automatic Reboot Trigger, Built-in WDT Physical Characteristics Housing Metal Dimensions (with ears) 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) Dimensions (without ears) 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) Weight 340 g (0.75 lb) Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting Environmental Limits Operating Temperature -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/35 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 Safety UL 60950-1 Declaration Green Product, RoHS, CRoHS, WEEE MTBF 2,231,530 hrs Standards Telcordia (Bellcore) Standard TR/SR
Description
Flexible Serial-to-Ethernet Conversion
Supports RS-232/422/485 interfaces, ensuring compatibility with a wide range of serial devices.
Web-Based Configuration
Easy setup and management through a user-friendly web interface.
Redundant Power Inputs
Ensures continuous operation with dual power inputs.
Wide Temperature Range
Reliable performance in temperatures ranging from -40 to 75°C.
Secure Data Transmission
Supports SSL and HTTPS for encrypted communication.
Applications of MOXA NPort 5150A Series
Factory Automation
In factory automation, reliable communication between various devices is crucial for efficient operation. The MOXA NPort 5150A Series device servers enable the integration of serial devices with Ethernet networks, ensuring seamless data exchange and centralized control.
Transportation Systems
For transportation systems, such as railways and highways, robust data communication is essential for smooth operation. The device servers provide reliable serial-to-Ethernet conversion, facilitating efficient communication between control systems and remote devices.
Power and Utilities
In power and utility applications, accurate and reliable data transmission is vital for monitoring and control. The MOXA NPort 5150A Series enhances communication reliability, contributing to the efficient management of power distribution and utilities.
Building Automation
In building automation, integrating various systems such as HVAC, lighting, and security is key to efficient management. The device servers allow for the integration of serial devices with IP-based networks, enhancing the automation and control of building systems.
