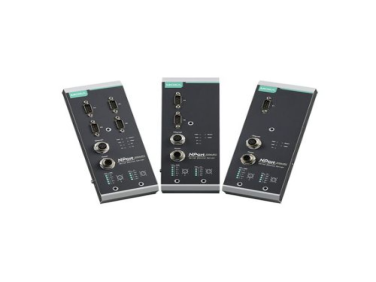

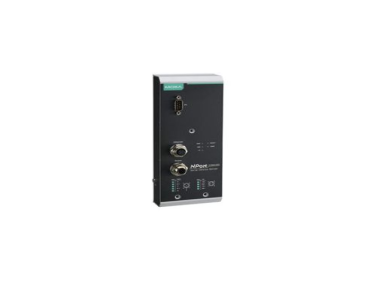

MOXA NPort 5150AI-M12 Serial Device Server
-
NG # 2449-HW-MAXO-015
Manufactured by:
The MOXA NPort 5150AI-M12 Serial Device Server are engineered to connect serial devices to an Ethernet network, facilitating seamless communication and data transfer. These servers are designed to meet the stringent requirements of industrial settings, offering reliability and ease of use.
Specification
Category Specification Ethernet Interface Ports: 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
Number of Ports: 1Ethernet Software Features Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Telnet Console
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter: IGMP v1/v2Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 Android API Android 3.1.x and later Security Functions Authentication: Local database
Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Security Protocols: SNMPv3, HTTPS (TLS 1.2)Serial Interface Connector: DB9 male
Number of Ports: 1
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
RS-485 Data Direction Control: ADDC (automatic data direction control)
Isolation: 2 kV
Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GNDPower Parameters Input Current: 310 mA @ 12 VDC
Input Voltage: 12 to 48 VDC
Note: Compliant with EN 50155 on 24/48 VDC
Power Connector: M12 A-coded 5-pin male connectorReliability Automatic Reboot Trigger: Built-in WDT
Alert Tools: Built-in buzzer and RTC (real-time clock)Physical Characteristics Dimensions: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
Weight: 686 g (1.51 lb)
Protection: PCB conformal coatingEnvironmental Limits Operating Temperature: -25 to 55°C (-13 to 131°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and Certifications EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF
Railway: EN 50121-4
Safety: UL 60950-1
Vibration: IEC 60068-2-6
Declaration: Green Product, RoHS, CRoHS, WEEE
MTBF: Time: 789,341 hrs, Standards: Telcordia (Bellcore) Standard TR/SR
Description
Industrial-Grade Durability
First and foremost, the 5150 servers boast an industrial-grade design, capable of withstanding extreme conditions. They feature robust construction with high electromagnetic interference (EMI) shielding, ensuring reliable operation in harsh environments.
Reliable Serial-to-Ethernet Connectivity
Moreover, these device servers provide reliable serial-to-Ethernet connectivity, supporting multiple serial communication protocols, including RS-232/422/485. This compatibility ensures seamless integration with a wide range of industrial equipment.
Advanced Security Measures
Additionally, security is a critical aspect of the 5150 servers. They support various encryption protocols, such as SSL and SSH, protecting data during transmission and preventing unauthorized access.
User-Friendly Configuration
Furthermore, the NPort 5150 servers are designed with user convenience in mind. They offer an intuitive web console and command line interface (CLI) for easy setup and management, making the configuration process straightforward and hassle-free.
Versatile Installation Options
The IA-5150 servers provide versatile installation options, including DIN-rail and wall mounting, ensuring flexibility in placement and ease of integration into existing setups.
Comprehensive Management Tools
In addition to their robust design, these servers come equipped with comprehensive management tools. Features like real-time monitoring, event logging, and alert notifications help maintain network stability and performance.
Applications of MOXA NPort 5150AI-M12 Serial Device Server
Factory Automation
The 5150 servers are ideal for factory automation, where reliable communication between machines and control systems is essential. They facilitate seamless data exchange, enhancing operational efficiency and productivity.
Energy and Utilities
Moreover, in the energy and utilities sector, these device servers enable the integration of remote monitoring and control systems, ensuring reliable data transmission across the network.
Transportation Systems
Furthermore, the 5150 servers play a crucial role in transportation systems, enabling real-time communication between various components, such as traffic signals and control centers.
Oil and Gas Industry
Additionally, these servers are indispensable in the oil and gas industry, where they ensure robust data communication between field equipment and central control systems, enhancing safety and operational efficiency.
