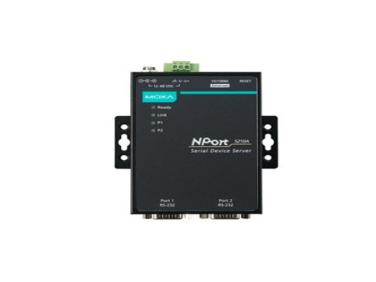

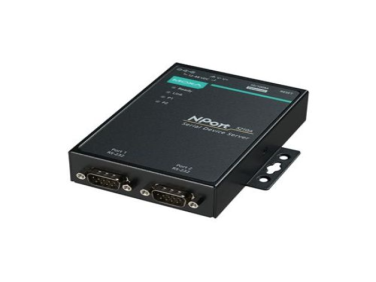

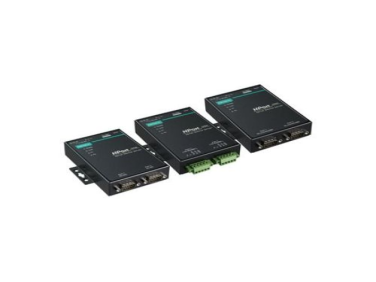

MOXA NPort 5210 Serial Device Server
-
NG # 2439-HW-MAXO-005
Manufactured by:
The MOXA NPort 5210 Serial Device Server is a powerful and reliable solution for industrial networking needs. With its rugged design, high-performance connectivity capabilities, advanced security features, and flexible management options, it stands out as an ideal choice for enhancing your industrial network. Whether upgrading your current connectivity infrastructure or looking for a robust device for harsh environments, the NPort 5210 delivers the performance and reliability necessary for seamless industrial operations.
Specification
Category Specification Ethernet Interface 10/100BaseT(X) Ports (RJ45) 1 Magnetic Isolation Protection 1.5 kV (built-in) Ethernet Software Features Configuration Options Windows Utility, Serial Console, Telnet Console, Web Console (HTTP) Management DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP Windows Real COM Drivers Windows Versions Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, 95 Windows Server Versions Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, NT Windows Embedded Versions Windows Embedded CE 6.0, 5.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, 2.4.x Fixed TTY Drivers macOS versions: 14, 13, 12, 11, 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Arm®-based Platform Support Windows Versions Windows 11 Linux Kernel Versions 6.x, 5.x, 4.x macOS Versions 14, 13, 12, 11 Virtual Machine VMWare ESXi Windows 11/10 VMware Fusion Windows on macOS 14, 13, 12, 11, 10.1x Parallels Desktop Windows on macOS 14, 13, 12, 11, 10.1x Android API Android 3.1.x and later MIB RFC1213, RFC1317 Security Functions Authentication Local database (password only) Serial Interface Connector 8-pin RJ45 No. of Ports 2 Serial Standards RS-232 Operation Modes Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP Baudrate Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF Pull High/Low Resistor for RS-485 None RS-485 Data Direction Control ADDC (automatic data direction control) Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND Power Parameters Input Current 325 mA @ 12 VDC Input Voltage 12 to 48 VDC No. of Power Inputs 1 Power Connector 1 removable 3-contact terminal block(s) Reliability Automatic Reboot Trigger Built-in WDT Alert Tools Built-in buzzer and RTC (real-time clock) Physical Characteristics Housing Metal Dimensions (with ears) 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in) Dimensions (without ears) 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in) Weight 340 g (0.75 lb) Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting Environmental Limits Operating Temperature -40 to 75°C (-40 to 167°F) Storage Temperature (package incl.) -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/35 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 Safety UL 60950-1 Medical EN 60601-1-2: 2007 compliant, EN 55011: 2007+A2: 2007 Class A (Group 1) compliant Declaration Green Product, RoHS, CRoHS, WEEE MTBF Time 381,342 hrs Standards Telcordia (Bellcore) Standard TR/SR
Description
Rugged Design
First and foremost, the NPort 5210 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and electrical interference, making it ideal for industrial applications.
High-Performance Connectivity
Moreover, the NPort 5210 offers high-performance serial-to-Ethernet connectivity, ensuring fast and reliable data transmission for critical industrial applications. It supports data rates up to 230.4 kbps, facilitating efficient communication between devices.
Robust Security
In addition, the device integrates advanced security features, including SSL and SSH encryption, ensuring that your data remains secure from potential threats and unauthorized access.
Flexible Management
Furthermore, the NPort 5210 supports a variety of management options, including web-based configuration, Telnet, and SNMP, providing flexibility for various industrial networking needs.
Easy Integration
Lastly, the NPort 5210 is designed for easy integration into existing networks, with support for a wide range of network protocols and seamless compatibility with various industrial devices.
Why Choose MOXA NPort 5210 Serial Device Server?
Industrial-Grade Durability
First and foremost, the NPort 5210 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments. Its robust construction allows it to operate flawlessly even under extreme conditions.
High-Performance Connectivity
Moreover, with robust serial-to-Ethernet connectivity and support for high data rates, this device provides fast and reliable communication for critical industrial applications. This ensures that your operations run smoothly and without interruptions.
Advanced Security Features
In addition, robust security protocols, including SSL and SSH encryption, protect your data from potential threats, ensuring secure operations. This added layer of security is crucial for maintaining the integrity and confidentiality of your data.
Flexible Management Options
Furthermore, the NPort 5210 supports multiple management options, including web-based configuration and SNMP, making setup, configuration, and management straightforward and efficient. This flexibility allows for easy customization to meet specific network requirements.
Easy Integration and Compatibility
The NPort 5210 supports a wide range of network protocols and is compatible with various industrial devices. This ensures seamless integration into your existing network. This versatility makes it an ideal choice for a wide array of industrial applications.
