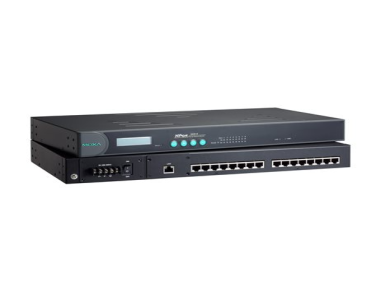

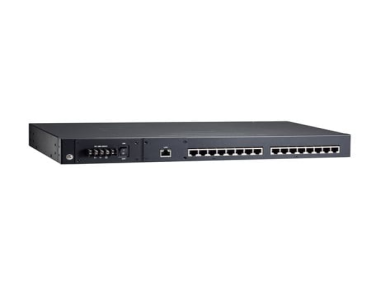

MOXA NPort 5650-8 Serial Device Server
-
NG # 2437-HW-MAXO-003
Manufactured by:
The MOXA NPort 5650-8 Serial Device Server is a powerful and reliable solution for industrial networking needs. With its rugged design, high-performance connectivity capabilities, advanced security features, and flexible management options, it stands out as an ideal choice for enhancing your industrial network. Whether upgrading your current connectivity infrastructure or looking for a robust device for harsh environments, the NPort 5650-8 delivers the performance and reliability necessary for seamless industrial operations.
Specification
Category Specification Ethernet Interface 10/100BaseT(X) Ports (RJ45) 1 Magnetic Isolation Protection 1.5 kV (built-in) Optical Fiber Read more Ethernet Software Features Configuration Options Telnet Console, Web Console (HTTP/HTTPS), Windows Utility Management ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP Filter IGMP v1/v2c Windows Real COM Drivers Windows Versions Windows 11/10/8.1/8/7/Vista/XP/ME/98/95 Windows Server Versions Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003 Windows Embedded Versions Windows Embedded CE 6.0/5.0, Windows XP Embedded Linux Real TTY Drivers Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x Fixed TTY Drivers macOS Versions: 11.x, 10.12 to 10.15 Arm®-based Platform Support Linux Kernel Versions 5.x, 4.x Virtual Machine VMWare ESXi Windows 11/10 VMware Fusion Windows on macOS 10.12 to 11.x Parallels Desktop Windows on macOS 10.12 to 11.x Android API Android 3.1.x and later Time Management Time Protocol SNTP Security Functions Authentication Local database Encryption HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 Security Protocols HTTPS (TLS 1.2), SNMPv3 Serial Interface Connector 8-pin RJ45 No. of Ports 8 Serial Standards RS-232, RS-422, RS-485 Operation Modes Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP Baudrate Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485 120 ohms RS-485 Data Direction Control Automatic Data Direction Control (ADDC) Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND Power Parameters Input Current 158 mA @ 100 VAC Input Voltage 100 to 240 VAC, 47 to 63 Hz Reliability Automatic Reboot Trigger Built-in WDT Physical Characteristics Housing Metal Installation 19-inch rack mounting Dimensions (with ears) 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) Dimensions (without ears) 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) Weight 2,310 g (5.09 lb) Environmental Limits Operating Temperature -40 to 75°C (-40 to 167°F) Storage Temperature (package incl.) -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/35 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 Safety UL 62368-1 Medical EN 55011: 2007+A2: 2007 Class A (Group 1) compliant, EN 60601-1-2: 2007 compliant MTBF Time 776,469 hrs Standards MIL-HDBK-217F
Description
Rugged Design
First and foremost, the NPort 5650-8 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and electrical interference, making it ideal for industrial applications.
High-Performance Connectivity
Moreover, the NPort 5650-8 offers high-performance serial-to-Ethernet connectivity, ensuring fast and reliable data transmission for critical industrial applications. It supports data rates up to 921.6 kbps, facilitating efficient communication between devices.
Robust Security
In addition, the device integrates advanced security features, including SSL and SSH encryption, ensuring that your data remains secure from potential threats and unauthorized access.
Flexible Management
Furthermore, the NPort 5650-8 supports a variety of management options, including web-based configuration, Telnet, and SNMP, providing flexibility for various industrial networking needs.
Easy Integration
Lastly, the NPort 5650-8 is designed for easy integration into existing networks, with support for a wide range of network protocols and seamless compatibility with various industrial devices.
Why Choose MOXA NPort 5650-8 Serial Device Server?
Industrial-Grade Durability
First and foremost, the NPort 5650-8 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments. Its robust construction allows it to operate flawlessly even under extreme conditions.
High-Performance Connectivity
Moreover, with robust serial-to-Ethernet connectivity and support for high data rates, this device provides fast and reliable communication for critical industrial applications. This ensures that your operations run smoothly and without interruptions.
Advanced Security Features
In addition, robust security protocols, including SSL and SSH encryption, protect your data from potential threats, ensuring secure operations. This added layer of security is crucial for maintaining the integrity and confidentiality of your data.
Flexible Management Options
Furthermore, the NPort 5650-8 supports multiple management options, including web-based configuration and SNMP, making setup, configuration, and management straightforward and efficient. This flexibility allows for easy customization to meet specific network requirements.
Easy Integration and Compatibility
The NPort 5650-8 supports a wide range of network protocols and is compatible with various industrial devices. This ensures seamless integration into your existing network. This versatility makes it an ideal choice for a wide array of industrial applications.
