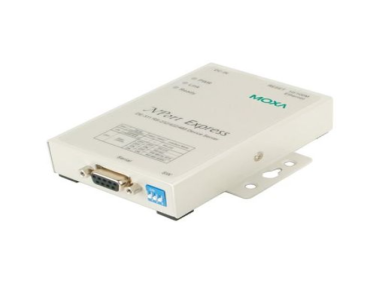

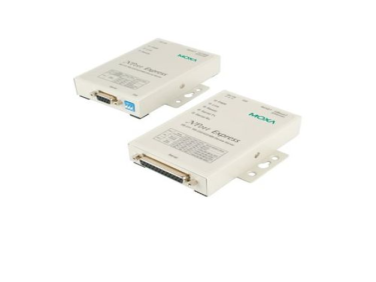

MOXA NPort DE-211 Serial Device Server
-
NG # 2436-HW-MAXO-002
Manufactured by:
The MOXA NPort DE-211 Serial Device Server is engineered to provide exceptional performance and reliability in demanding industrial environments. With advanced features, robust security, and superior durability, the NPort DE-211 is an excellent choice for industries looking to enhance their network connectivity. This review offers an in-depth look at the key features, specifications, and advantages of the MOXA NPort DE-211, ensuring you have all the information needed to understand its capabilities and benefits for your industrial connectivity needs.
Specification
Category Specification Ethernet Interface No. of Ports 1 Magnetic Isolation Protection 1.5 kV (built-in) 10BaseT(X) Ports, RJ45 Connector Auto MDI/MDI-X connection Ethernet Software Features Configuration Options Windows Utility, Telnet Console, Serial Console Management ARP, BOOTP, DHCP Client, IPv4, TCP/IP, Telnet, UDP, ICMP Linux Real TTY Drivers Kernel Versions: 2.4.x, 2.6.x, 3.x, 4.x, 5.x Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Android API Android 3.1.x and later Windows Real COM Drivers Windows Versions Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded Serial Interface Connector DB25 female Serial Standards RS-232, RS-422, RS-485 No. of Ports 1 Baudrate Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control None, RTS/CTS, XON/XOFF RS-485 Data Direction Control ADDC (automatic data direction control) Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND RS-485-2w: Data+, Data-, GND Power Parameters Input Current 180 mA @ 12 VDC, 100 mA @ 24 VDC Input Voltage 12 to 30 VDC Reliability Alert Tools Built-in buzzer and RTC (real-time clock) Physical Characteristics Housing Metal Dimensions (with ears) 90.2 x 100.4 x 22 mm (3.55 x 3.95 x 0.87 in) Dimensions (without ears) 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in) Weight 480 g (1.06 lb) Environmental Limits Operating Temperature 0 to 55°C (32 to 131°F) Storage Temperature (package incl.) -40 to 75°C (-40 to 167°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/35 EMI CISPR 32, FCC Part 15B Class B EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-11 Safety UL 60950-1 Declaration Green Product: RoHS, CRoHS, WEEE MTBF Time 347,822 hrs Standards MIL-HDBK-217F
Description
Rugged Design
First and foremost, the NPort DE-211 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and electrical interference, making it ideal for industrial applications.
High-Performance Connectivity
Moreover, the NPort DE-211 offers high-performance serial-to-Ethernet connectivity, ensuring fast and reliable data transmission for critical industrial applications. It supports data rates up to 115.2 kbps, facilitating efficient communication between devices.
Robust Security
In addition, the device integrates advanced security features, ensuring that your data remains secure from potential threats and unauthorized access.
Flexible Management
Furthermore, the NPort DE-211 supports a variety of management options, including web-based configuration and Telnet, providing flexibility for various industrial networking needs.
Easy Integration
Lastly, the NPort DE-211 is designed for easy integration into existing networks, with support for a wide range of network protocols and seamless compatibility with various industrial devices.
Why Choose MOXA NPort DE-211 Serial Device Server?
Industrial-Grade Durability
First and foremost, the NPort DE-211 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments. Its robust construction allows it to operate flawlessly even under extreme conditions.
High-Performance Connectivity
Moreover, with robust serial-to-Ethernet connectivity and support for high data rates, this device provides fast and reliable communication for critical industrial applications. This ensures that your operations run smoothly and without interruptions.
Advanced Security Features
In addition, the NPort DE-211 integrates advanced security features, protecting your data from potential threats and ensuring secure operations. This added layer of security is crucial for maintaining the integrity and confidentiality of your data.
Flexible Management Options
Furthermore, the NPort DE-211 supports multiple management options, including web-based configuration and Telnet, making setup, configuration, and management straightforward and efficient. This flexibility allows for easy customization to meet specific network requirements.
Easy Integration and Compatibility
Lastly, designed for easy integration, the NPort DE-211 supports a wide range of network protocols and is compatible with various industrial devices, ensuring seamless integration into your existing network. This versatility makes it an ideal choice for a wide array of industrial applications.
