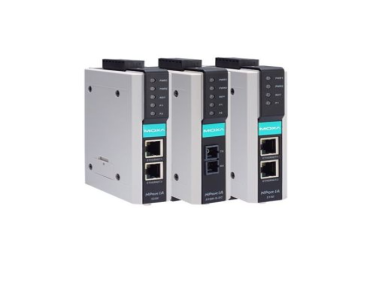

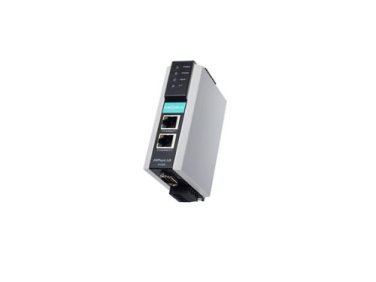

MOXA NPort IA-5150 Serial Device Server
-
NG # 2450-HW-MAXO-016
Manufactured by:
In the dynamic world of industrial operations, efficient and reliable connectivity solutions are vital. The MOXA NPort IA-5150 Serial Device Server provide a robust answer to the need for integrating serial devices with Ethernet networks. Their advanced features and industrial-grade design ensure optimal performance in even the most demanding environments.
Specification
Category Specification Ethernet Interface Ports: 10/100BaseT(X) Ports (RJ45 connector) , Supports: 2 (1 IP, Ethernet cascade) , Magnetic Isolation Protection: 1.5 kV (built-in), 100BaseFX Ports: 1 (multi-mode SC connector) Ethernet Software Features Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console , Management: DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet Windows Real COM Drivers Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, 95 , Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, NT , Windows Embedded CE 5.0 and 6.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x Fixed TTY Drivers macOS versions: 14, 13, 12, 11, and 10.1x , SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X Arm®-based Platform Support Windows 11 , Linux Kernel 6.x, 5.x, and 4.x , macOS 14, 13, 12, and 11 Virtual Machine VMWare ESXi (Windows 11/10) , VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x) , Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x) Android API Android 3.1.x and later Time Management SNTP MIB RFC1213, RFC1317 Security Functions Authentication: Local database (password only) Serial Interface Connector: DB9 male for RS-232 and terminal block for RS-422/485 , No. of Ports: 1 , Serial Standards: RS-232, RS-422, RS-485 , Baudrate: 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 , Data Bits: 5, 6, 7, 8 , Parity: None, Even, Odd, Space, Mark , Stop Bits: 1, 1.5, 2 , Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF , Terminator for RS-485: 120 ohms , Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms , RS-485 Data Direction Control: ADDC (automatic data direction control) , Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND , RS-422: Tx+, Tx-, Rx+, Rx-, GND , RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND , RS-485-2w: Data+, Data-, GND Power Parameters Input Voltage: 12 to 48 VDC , Input Current: 510 mA @ 12 VDC , No. of Power Inputs: 2 , Power Connector: Terminal block , Relays Contact Current Rating: Resistive load: 1 A @ 30 VDC Physical Characteristics Housing: Plastic , IP Rating: IP30 , Dimensions: 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) , Weight: 360 g (0.79 lb) , Installation: DIN-rail mounting Environmental Limits Operating Temperature: 0 to 60°C (32 to 140°F) , Storage Temperature (package included): -40 to 85°C (-40 to 185°F) , Ambient Relative Humidity: 5 to 95% (non-condensing) Standards and Certifications EMC: EN 55032/35 , EMI: CISPR 32, FCC Part 15B Class A , EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 , Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508 , Maritime: DNV , Hazardous Locations: ATEX, Class I Division 2, IECEx , Freefall: IEC 60068-2-32 , Shock: IEC 60068-2-27 , Vibration: IEC 60068-2-6, IEC 60068-2-64 , Declaration: Green Product, RoHS, CRoHS, WEEE , MTBF: Time: 1,175,887 hrs, Standards: Telcordia (Bellcore) Standard TR/SR
Description
Industrial-Grade Durability
First and foremost, the IA-5150 servers boast an industrial-grade design, capable of withstanding extreme conditions. They feature robust construction with high electromagnetic interference (EMI) shielding, ensuring reliable operation in harsh environments.
Reliable Serial-to-Ethernet Connectivity
Moreover, these device servers provide reliable serial-to-Ethernet connectivity, supporting multiple serial communication protocols, including RS-232/422/485. This compatibility ensures seamless integration with a wide range of industrial equipment.
Advanced Security Measures
Additionally, security is a critical aspect of the IA-5150 servers. They support various encryption protocols, such as SSL and SSH, protecting data during transmission and preventing unauthorized access.
User-Friendly Configuration
Furthermore, the NPort IA-5150 servers are designed with user convenience in mind. They offer an intuitive web console and command line interface (CLI) for easy setup and management, making the configuration process straightforward and hassle-free.
Versatile Installation Options
The IA-5150 servers provide versatile installation options, including DIN-rail and wall mounting, ensuring flexibility in placement and ease of integration into existing setups.
Comprehensive Management Tools
In addition to their robust design, these servers come equipped with comprehensive management tools. Features like real-time monitoring, event logging, and alert notifications help maintain network stability and performance.
Applications of MOXA NPort IA-5150 Serial Device Server
Factory Automation
The IA-5150 servers are ideal for factory automation, where reliable communication between machines and control systems is essential. They facilitate seamless data exchange, enhancing operational efficiency and productivity.
Energy and Utilities
Moreover, in the energy and utilities sector, these device servers enable the integration of remote monitoring and control systems, ensuring reliable data transmission across the network.
Transportation Systems
Furthermore, the IA-5150 servers play a crucial role in transportation systems, enabling real-time communication between various components, such as traffic signals and control centers.
Oil and Gas Industry
Additionally, these servers are indispensable in the oil and gas industry, where they ensure robust data communication between field equipment and central control systems, enhancing safety and operational efficiency.
