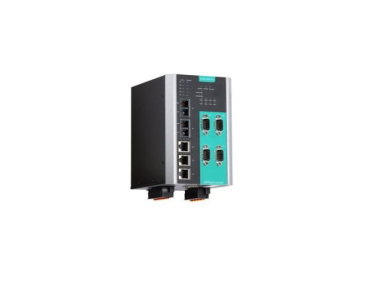

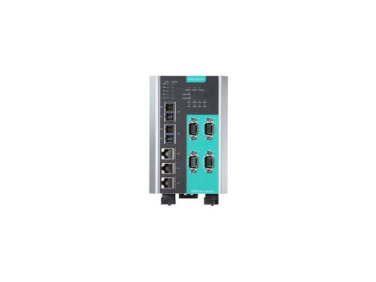

MOXA NPort S9450I Serial Device Server
-
NG # 2453-HW-MAXO-020
Manufactured by:
The MOXA NPort S9450I Serial Device Server are an excellent choice for enhancing industrial communication. With their high performance, robust security features, and flexible installation options, they offer a reliable and efficient solution for various industrial applications. Whether you’re in automation, transportation, or energy, the NPort S9450I can help you achieve seamless connectivity and improved operational efficiency.
Specification
Category Specification Input/Output Interface Alarm Contact Channels 2, Resistive load: 1 A @ 24 VDC Digital Input Channels 2 Digital Inputs +13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA Ethernet Interface Ports 10/100BaseT(X) Ports (RJ45 connector), 5 Magnetic Isolation Protection 1.5 kV (built-in) Optical Fiber Standards IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX Switch Properties IGMP Groups 256 Max. No. of VLANs 64 Priority Queues 4 VLAN ID Range VID 1 to 4094 Ethernet Software Features Configuration Options Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Command Line Interface (CLI) through Serial/Telnet/SSH Management DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console Filter GMRP, GVRP, IGMP v1/v2 Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 Android API Android 3.1.x and later Industrial Protocols Modbus TCP Server (Slave), DNP3 TCP Outstation Time Management NTP Server/Client, SNTP MIB Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB Redundancy Protocols RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2 Security HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH Serial Interface Connector DB9 male No. of Ports 4 Serial Standards RS-232, RS-422, RS-485 Operation Modes Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates) Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control None, RTS/CTS, XON/XOFF Isolation 2 kV Surge 4 kV RS-485 Data Direction Control ADDC® (automatic data direction control) Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms Terminator for RS-485 120 ohms Console Port RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1) Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND DIP Switch Configuration Ethernet Interface: Turbo Ring, Master, Coupler, Reserved Modbus TCP Max. No. of Client Connections 32 Max. No. of Server Connections 16 DNP3 (Transparent) Max. No. of Master Connections 16 Max. No. of Outstation Connections 32 Power Parameters No. of Power Inputs 2 Power Connector 1 removable 5-contact terminal block(s) Reverse Polarity Protection Supported Input Current 80 mA @ 110 VDC Input Voltage 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC) Physical Characteristics Housing Metal Dimensions 80 x 160 x 109 mm (3.15 x 6.30 x 4.29 in) Weight Product only: 2.54 kg (5.60 lb) Installation DIN-rail mounting, Wall mounting (with optional kit) Environmental Limits Operating Temperature -40 to 85°C (-40 to 185°F) Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 61000-6-2/-6-4 EMI CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 6 kV; Signal: 4 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m; IEC 61000-4-8 PFMF; IEC 61000-4-11 Environmental Testing IEC 60068-2-2, IEC 60068-2-14 Power Substation IEC 61850-3, IEEE 1613 Hazardous Locations UL/cUL Class I Division 2 Groups A/B/C/D Safety EN 61010-2-201, UL 61010-2-201 Shock IEC 60068-2-27 Vibration IEC 60068-2-6, IEC 60068-2-64 Declaration Green Product: RoHS, CRoHS, WEEE MTBF 347,436 hrs (Telcordia SR332)
Description
High Performance
Firstly, the NPort S9450I series is equipped with a high-speed processor, ensuring efficient and stable data transmission. Furthermore, with a built-in Ethernet switch, it facilitates easy network expansion without additional hardware.
Multiple Serial Ports
The models come with 4 or 8 serial ports, supporting RS-232/422/485 communication standards. Thus, they offer versatile connectivity options for various industrial devices.
Advanced Security
Moreover, security is paramount. These device servers incorporate advanced security features such as SSL and SSH protocols, protecting data integrity and preventing unauthorized access.
Wide Temperature Range
Designed for harsh industrial conditions, the NPort S9450I operates reliably in temperatures ranging from -40 to 75°C. As a result, they are suitable for use in extreme environments.
Flexible Mounting Options
Additionally, the NPort S9450I series supports both DIN-rail and wall mounting. This flexibility ensures easy installation in diverse industrial settings.
Redundant Power Inputs
To ensure uninterrupted operation, the NPort S9450I is equipped with dual power inputs. Therefore, it guarantees continuous performance even if one power source fails.
Applications
- Factory Automation: By connecting legacy serial devices to modern Ethernet networks, these device servers enhance the efficiency of factory automation systems.
- Energy Management: Consequently, they are perfect for integrating serial-based energy management devices into IP networks, ensuring real-time monitoring and control.
- Transportation: In addition, the NPort S9450I is suitable for transportation systems, providing reliable communication between traffic control devices and central management systems.
