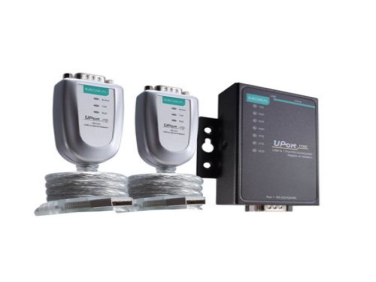

MOXA UPort 1100 Series USB-to-Serial Converters
-
NG # 2457-HW-MAXO-024
Manufactured by:
The MOXA UPort 1100 Series USB-to-Serial Converters are at the cutting edge of connectivity solutions, engineered to provide seamless and reliable communication between USB and serial devices. These converters are perfect for various applications requiring robust and efficient data transfer. In this comprehensive product description, we will delve into the features, benefits, and applications of the MOXA UPort 1100 Series, ensuring you have all the necessary details to make an informed decision.
Specification
Category Specification USB Interface Speed: 12 Mbps
USB Connector:
– USB Type A: UPort 1110/1130/1130I/1150
– USB Type B: UPort 1150I
USB Standards: USB 2.0 compatible, USB 1.0/1.1 compliantSerial Interface No. of Ports: 1
Connector: DB9 male
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Isolation: 2 kV (I models)
Serial Standards:
– RS-232: UPort 1110
– RS-422/485: UPort 1130/1130I
– RS-232/422/485: UPort 1150/1150ISerial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GNDSerial Software Features Windows Drivers: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP; Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
Linux Drivers: Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Mac Drivers: macOS 10.12 to 10.15
Arm®-based Platform Support: Linux kernel 6.x, 5.x, and 4.x; Windows 11
Virtual Machine: VMware Fusion (Windows on macOS 10.12 to 10.15), VMWare ESXi (Windows 7 to 10, Windows Server 2008 R2 to 2019), VMWare ESXi (Linux kernel 5 and 4), Parallels Desktop (Windows on macOS 10.12 to 10.15)
Android API: Android 3.1.x and laterPower Parameters Input Voltage: 5 VDC
Input Current:
– UPort 1110: 30 mA
– UPort 1130: 60 mA
– UPort 1130I: 65 mA
– UPort 1150: 77 mA
– UPort 1150I: 260 mAPhysical Characteristics Housing:
– UPort 1110/1130/1130I/1150: ABS + Polycarbonate
– UPort 1150I: Metal
Dimensions:
– UPort 1110/1130/1130I/1150: 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
– UPort 1150I: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
Weight:
– UPort 1110/1130/1130I/1150: 65 g (0.14 lb)
– UPort 1150I: 75 g (0.16 lb)Environmental Limits Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and Certifications EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class 1
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF
Safety: UL 60950-1 (UPort 1150I)Declaration Green Product: RoHS, CRoHS, WEEE MTBF Time: 1,949,025 hrs
Standards: MIL-HDBK-217F, Telcordia (Bellcore), GB
Description
Seamless USB-to-Serial Connectivity
Firstly, the MOXA UPort 1100 Series excels in providing seamless connectivity between USB and serial devices. This capability is crucial for modern systems that need to interface with legacy serial equipment, ensuring smooth data communication and integration.
High Performance and Reliability
Moreover, these converters are designed to deliver high performance and reliability. With support for high data transfer rates, the MOXA UPort 1100 Series ensures that your data is transmitted quickly and accurately, even in demanding environments. This reliability is essential for maintaining the efficiency of your systems.
Plug-and-Play Simplicity
Transitioning to usability, the MOXA UPort 1100 Series features plug-and-play functionality. This means that no additional drivers or complex configurations are required, allowing for quick and hassle-free setup. This user-friendly design saves time and reduces the complexity of device integration.
Versatile Operating System Support
Furthermore, the MOXA UPort 1100 Series supports a wide range of operating systems, including Windows, Linux, and Mac OS. This versatility ensures that the converters can be used in various applications and environments, providing broad compatibility and ease of use.
Compact and Durable Design
Additionally, the compact and rugged design of the MOXA UPort 1100 Series makes them suitable for various industrial and commercial settings. These converters are built to withstand harsh conditions, including extreme temperatures and physical stress, ensuring long-term reliability and durability.
Comprehensive Diagnostic Tools
In today’s complex digital environments, diagnostic tools are essential. The MOXA UPort 1100 Series includes advanced diagnostic tools that allow for real-time monitoring and troubleshooting. This capability helps to quickly identify and resolve any issues, minimizing downtime and maintaining operational efficiency.
Versatile Application Scenarios
Industrial Automation
For industrial automation, the MOXA UPort 1100 Series provides reliable communication between USB and serial devices. This integration enhances operational efficiency and ensures accurate data exchange, which is vital for automated processes.
Retail and Point-of-Sale Systems
In retail environments, these converters facilitate the connection between modern USB interfaces and legacy serial devices commonly used in point-of-sale (POS) systems. This ensures smooth and efficient transaction processing, improving customer service and satisfaction.
Medical Equipment
Medical equipment often relies on precise and reliable data communication. The MOXA UPort 1100 Series meets these requirements, making it an excellent choice for medical device manufacturers looking to integrate advanced connectivity solutions into their products.
Building Automation
Building automation systems can greatly benefit from the MOXA UPort 1100 Series. These converters enable efficient communication between various devices and systems, improving overall building management and energy efficiency.
