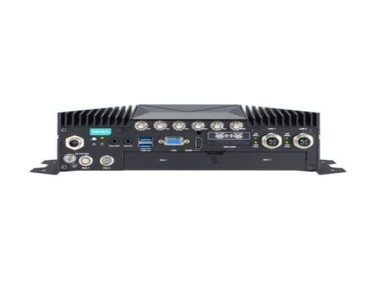

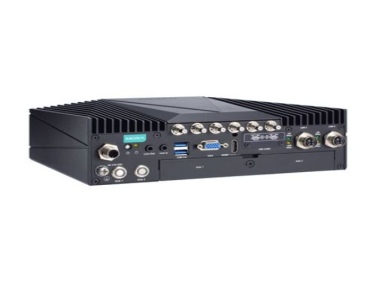

MOXA V2406C-KL3 Industrial Computing Device
-
NG # 2440-HW-MAXO-006
Manufactured by:
The MOXA V2406C-KL3 Industrial Computing Device is a powerful and reliable solution for industrial computing needs. With its rugged design, high-performance computing capabilities, advanced security features, and flexible connectivity options, it stands out as an ideal choice for enhancing your industrial operations. Whether upgrading your current computing infrastructure or looking for a robust device for harsh environments, the V2406C-KL3 delivers the performance and reliability necessary for seamless industrial operations.
Specification
Specification Details CPU Intel® Core™ i3-7100U processor (3M cache, up to 2.40 GHz) System Memory Slot SODIMM DDR4 slot x 2 DRAM 32 GB max Graphics Controller Intel® HD Graphics 620 Storage Slot 2.5-inch HDD/SSD slots x 2
mSATA slots x 1Supported OS Order via the Moxa Computer Configuration System (CCS):
Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
Windows 10 Embedded IoT Ent 2021 LTSC 64-bit
WL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19)
KL Models: Debian 9 (kernel 4.9)
Download Drivers From Website: Linux Debian 11/Ubuntu 20.04/CentOS 7.9 driversComputer Interface Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
Digital Input: DIs x 6
Digital Output: DOs x 2
USB 3.0: USB 3.0 hosts x 4, type-A connectors
Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
Video Output: VGA x 1, 15-pin D-sub connector (female), HDMI x 1, HDMI connector (type A)
Expansion Slots: mPCIe slots x 2Digital Inputs Connector: Screw-fastened Euroblock terminal
I/O Mode: DI
Isolation: 3k VDC
Sensor Type: Wet contact (NPN), Dry contact
Dry Contact: Logic 0: Close to GND, Logic 1: Open
Wet Contact (COM to DI): Logic 0: 10 to 30 VDC, Logic 1: 0 to 3 VDCDigital Outputs Connector: Screw-fastened Euroblock terminal 10-pin terminal block
Current Rating: 200 mA per channel
I/O Type: Sink
Voltage: 0 to 30 VDC
Isolation: 3k VDCLED Indicators System: Power x 1, Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)Serial Interface Baudrate: 50 bps to 115.2 kbps
Connector: DB9 male
ESD: Contact: 6 kV; Air: 8 kV (level 3)
Isolation: 2 kV
Data Bits: 5, 6, 7, 8
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDPower Parameters Input Voltage: 24 to 110 VDC
Power Connector: M12 A-coded male connector
Power Consumption (Max.): 70 W (max.)Physical Characteristics Housing: Aluminum
IP Rating: IP20
Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
Weight: 2,700 g (5.95 lb)
Installation: Wall mounting (standard)
Protection: PCB conformal coating available on requestEnvironmental Limits Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and Certifications EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Railway Fire Protection: EN 45545-2
EMC: EN 55032/35
Safety: EN 62368-1, IEC 62368-1, UL 62368-1
Railway: EN 50121-4, EN 50121-3-2, EN 50155:2017
Shock: IEC 60068-2-27, IEC 61373
Vibration: IEC 60068-2-64, IEC 61373
Declaration: Green Product: RoHS, CRoHS, WEEEMTBF Time: 382,506 hrs
Standards: Telcordia (Bellcore), GB
Description
Rugged Design
First and foremost, the V2406C-KL3 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and shocks, making it ideal for industrial applications.
High-Performance Computing
Moreover, powered by a robust processor, the V2406C-KL3 delivers high-performance computing capabilities, ensuring fast and reliable processing for critical industrial applications.
Robust Security
In addition, the device integrates advanced security features, including secure boot and TPM 2.0, ensuring that your computing environment remains secure from potential threats and unauthorized access.
Flexible Connectivity
Furthermore, the V2406C-KL3 supports a variety of connectivity options, including multiple Ethernet ports and USB interfaces, providing flexibility for various industrial networking needs.
Easy Management
Lastly, the computing device features an intuitive web-based interface and support for SNMP, allowing easy setup, configuration, and management of your industrial network.
Why Choose MOXA V2406C-KL3 Industrial Computing Device?
Industrial-Grade Durability
The V2406C-KL3 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments.
High-Performance Computing
With a powerful Intel® Core™ i7 processor and ample memory, this device provides fast and reliable computing capabilities for critical industrial applications.
Advanced Security Features
Robust security protocols, including TPM 2.0 and Secure Boot, protect your computing environment from potential threats, ensuring secure operations.
Flexible Connectivity Options
The V2406C-KL3 supports multiple connectivity options, including Ethernet, USB, and serial ports, providing versatility for various industrial networking needs.
Easy Management and Configuration
The intuitive web-based interface and SNMP support make setup, configuration, and management straightforward and efficient.
