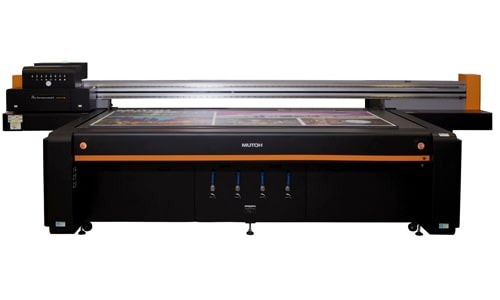

UV inkjet large format printer PerformanceJet 2508UF
-
NG # 00100-HW-ZUT-035
-
MF # 00100-HW-ZUT-035
Manufactured by:
The PerformanceJet 2508UF is Mutoh’s first true large format 1250 x 2540 mm (4‘ x 8’) LED-UV flatbed printer with moving gantry. It combines a set of powerful features to maximise your productivity: 4 multi-drop greyscale high performance print heads mounted in a staggered setup, media thicknesses up to 100 mm (4”) and a maximum substrate weight of 50 kg/m², a print bed with multiple vacuum zones in dierent sizes, an automatic media registration pin system and last but not least expandability to 6 print heads, allowing the printer productivity to grow with your needs.
Specification
Print method
Drop-On Demand, Piezo Drive Method
Variable dot
Yes
# of nozzles
1280 (4X320 Channels / 4 heads -default
# of print heads
4 default - field upgradeable to 6
Ink type
UV-LED
Curing system
UV-LED Lamp
Maximum print Area
100” X 49.2”
Print modes
600X300 / 600X600 / 600X900 / 600X1200 (dpi) *
Color options
CMYK x2 or CMYK x2, +White + Varnish
Maximum print speed / resolution
968 sqft/hr (600X300 / 2 pass / 4 color / 4 head )
Maximum Resolution
600 x 1200 dpi
Maximum Print Height
4 inches(101.6mm)
Maximum media weight
92.15 lbs. / sq yd. or 350lbs.
Description
The Mutoh PerformanceJet 2508UF 4ft x 8ft UV-LED Flatbed printer excels in performance quality and value. It's standard unstaggered four print head design Field upgradable to six heads when adding white and varnish inks, provides high print speeds and the dual UV lamps on both sides of the carriage provide exceptional cure times allowing for higher production capacity. Print media up to 4 thick and use the CMYK x2 or CMYKx2 plus white & varnish to create stunning applications with outstanding durability and color gamut.
