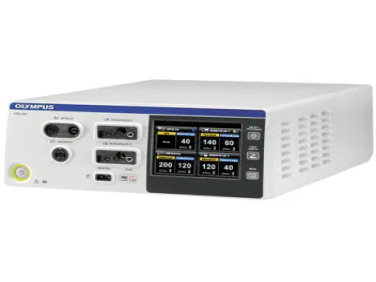

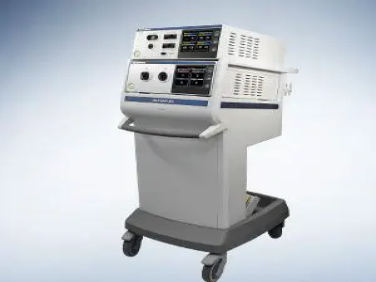

Olympus ESG-400 & USG-400 Electrosurgical Units

  • NG # 2539-HW-Olympus-006

Manufactured by:

This seller generally responds in under 48 hours

Specification

Dimensions

  • Size: (W x D x H)370 x 465 x 156 mm
  • Weight: 12.5 kg

Out Put

  • High frequency functions Monopolar / Bipolar
  • High frequency 430 kHz ±20%
  • Maximum high frequency power 320 W
  • All modes 25% duty cycle
  • RFCoag (with or without RCAP) 100% duty cycle

Power Supply

  • Voltage range 100…120 V~ / 220…240 V~
  • Frequency 50 / 60 Hz
  • Maximum input power 1500 VA
  • Power fuse 10 A (only FST-series from Schurter)
  • Terminal for potential equalization Yes

Sockets

  • MONOPOLAR 2 x 3-pin (Ø 4 mm), Internatonal standard
  • MONOPOLAR 1 x 1-pin (Ø 8 mm), Bovie standard
  • MONOPOLAR 1 x coaxial (Ø inner 5 mm / Ø outer 9 mm), Erbe standard
  • BIPOLAR 1 x 2-pin (Ø 4 mm, pin spacing 28.8 mm), Internatonal standard
  • BIPOLAR 1 x coaxial (Ø inner 4 mm / Ø outer 8 mm), Erbe standard
  • UNIVERSAL 1 x 7-pin, Olympus standard
  • Neutral electrode 2-pin standard, single or split

ESG-400 ELECTROSURGICAL GENERATOR Voltage range: 100 to 120 V~/220 to 240 V~ Frequency: 50/60 Hz Maximum input power: 1500 VA Supply fuse: 10 A (Schurter FST series only) High frequency functions : Monopolar/bipolar High frequency: 430 kHz ± 20% High frequency maximum power: 320 W Dimensions: (W x D x H) 370 × 465 × 156 mm Weight: 12.5 kgUSG-400 ULTRASONIC GENERATOR Voltage range: 120 VAC Frequency: 50/60 Hz Maximum input power: 360 VA Power fuse: 4 A, 250 V (ø5 x 20 mm) Dimensions: (W x D x H) 375 x 480 x 156 mm Weight: 9 kg

Description

The ESG-400 universal HF generator provides you with unrivalled resection power as well as access to surgical tissue management technology in the future and offers maximum performance, safety, and simplicity for all your surgical HF applications.
