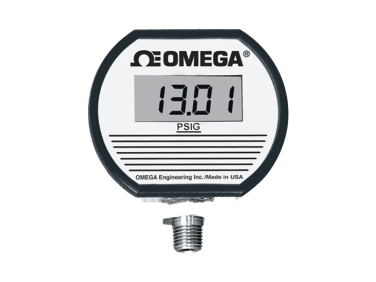

Omega High Accuracy, Digital Pressure Gauge with NIST Certification
-
NG # 2239-HW-Omega-010
-
MF # DPG1001B-100G
Manufactured by:
Specification
| Burst Pressure | 4x rated pressure min |
| Display Digit Height | 13 mm |
| Maximum Compensation Temperature | 70°C (158°F) |
| Maximum Storage Temperature | 95°C (203°F) |
| Measurement Units | PSIG |
| Minimum Storage Temperature | -55°C (-67°F) |
| Repeatability | +/-0.10% FSO or better |
| Wetted Materials | 316 Stainless Steel |
| Accuracy Value | ±0.10% FSO or better |
| Maximum Ambient Temperature | 85°C (185°F) |
| Maximum Amp Rating | 0.005 |
| Measurement Type | Pressure |
| Minimum Compensation Temperature | 0°C (32°F) |
| Number of Display Digits | 3.5 |
| Sample Rate | 3 readings per second |
Description
The DPG1001 series is a versatile family of industrial pressure gauges. All DPG1001 models feature a large 13 mm H (1/2") digital display in a rugged, splashproof extruded aluminum case.
A 1/4-18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel.
The DPG1001 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure ranges are available. The DPG1001 series also features ±0.10% accuracy, 2X overpressure and 4X burst specifications.
