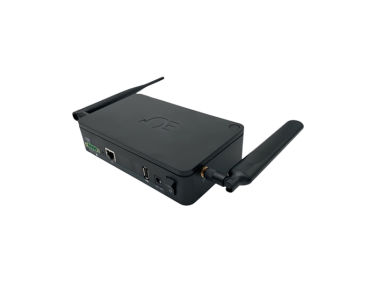

Omega Link Cellular Gateway Series
-
NG # 2243-HW-Omega-014
-
MF # GW-002-1-LTE
Manufactured by:
Specification
| Wireless Communication Frequency | 915 MHz |
| Range | Up to 3.2 km |
| LTE Service Provider | AT&T |
| Supported LTE Bands | 2, 4, 12 |
| AC Adapter | DC 12V @ 2A |
| RJ45 | 1x port (TCP Modbus local config only) |
| USB | 1x USB 2.0 |
| DC Jack | DC 12V power input |
| Serial Port | RS232/RS485 |
| Alarm | SSR 36VDC 100mA |
| Rating | IP40 |
| Operating Temperature | -20℃ to 65℃ (-4℉ to 149℉,) non-condensing |
| Dimensions | 170 mm L x 100 mm W x 42 mm H (6.69&rdquo x 3.93&rdquo x 1.65&rdquo) |
| Max number of Smart Sensors | Up to 40 Smart Sensors can connect to the LTE Gateway unit. |
Description
This high performance wireless gateway seamlessly connects to up to 40 long range Omega Link Smart Sensor devices. LTE network-enabled connectivity ensures fast,wirelessconnection to the Omega Link Cloud. Local access is also available through the built-in web server accessible through an RJ45 port. The GW-002-1-LTE supports wired devices including Modbus TCP and RTU RS232/RS485 through a 5-pin serial terminal and an RJ45 port (used for local configuration only). It includes one USB port to enable local smart probe connections through a wired Omega Link Smart Interface.
The Omega Link LTE Gateway is easily paired to Omega Link Smart Sensors with the press of a button and will automatically show up on your Omega Link Cloud account. Local data logging for your Smart Sensor devices keeps your data secure in the event of a power or network outage. Reports, History, and E-mail alerts from the Omega Link Cloud keep you informed on the status of all your vital processes.
