Omega Link Wireless IIoT Smart Environmental Sensors
-
NG # 2245-HW-Omega-016
-
MF # SS-001-1-NA
Manufactured by:

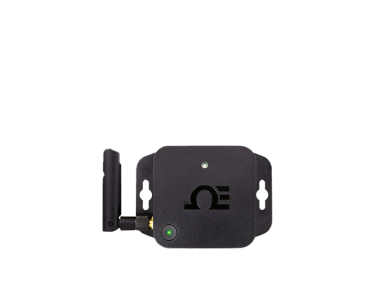

Omega Link SS-001 Smart Sensors utilize precision internal sensing elements to accurately measure environmental conditions for a wide range of applications.
Specification
| Wireless Communication Frequency | 915 MHz |
| Range | Up to 3.2 km |
| Alkaline Battery | 2x AA batteries (included) |
| Lifetime | Up to 1.5 years with frequency of 1 reading per hour |
| USB Power | 500mA @ 5V *Micro USB cable not included |
| Battery Powered | -15°C to 55°C, non-condesning |
| USB Power | -20°C to 65°C, non condensing |
| Rating | IP40 |
Description
Omega Link Smart Sensors are easily paired to the Omega Link Gateway with the press of a button, and will automatically show up on your Omega Link Cloud Account. The Omega Link Gateway can connect up to 256 Smart Sensors per unit. Local data logging keeps your data secure in the event of a power or network outage. Reports, History, and E-mail alerts from the Omega Link Cloud keep you informed on the status of all your vital processes.
The SS-001 utilizes Sub GHz Frequency Hopping Spread Spectrum (FHSS) technology to ensure robust, long range communications. Transmission ranges of up to 1.2 km can be achieved with the standard AA batteries and transmission ranges of up to 3.2 km can be achieved when powered by a standard 5V micro USB cable2.
