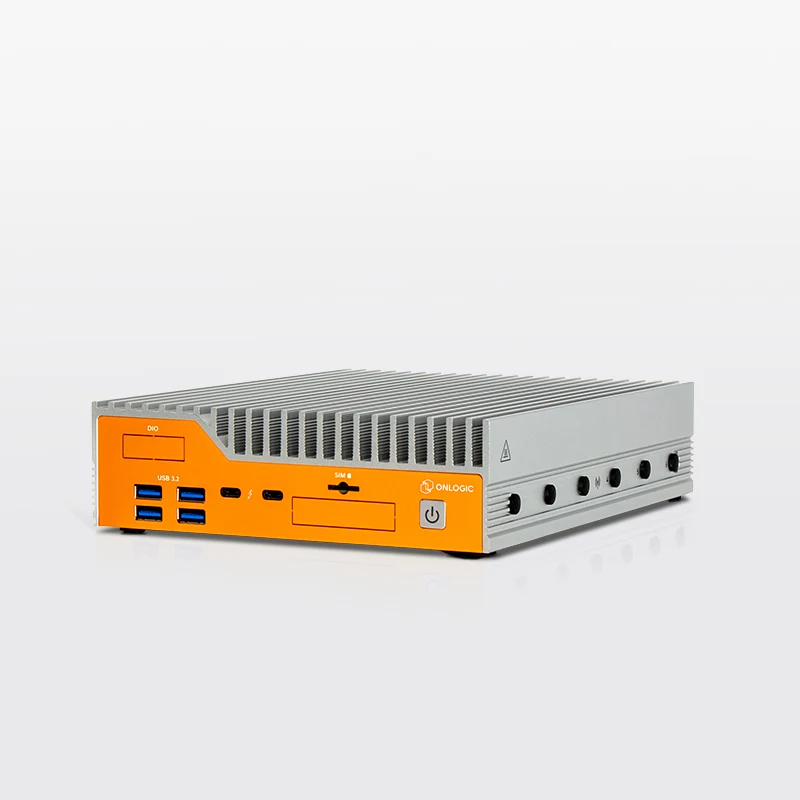

Helix 511 Fanless Intel 12th Gen Edge Computer
-
NG # 001201-HW-one logic-001
Manufactured by:
This
seller generally responds in under 48 hours
The Helix 511 delivers ultra-reliable, fanless computing using Intel® 12th Generation performance hybrid processing.
Specification
System
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Fanless |
| Processor Socket | LGA1700 |
| Processor Generation | Alder Lake |
| Processor | Intel Alder Lake 12th Gen Celeron 7305Intel Alder Lake 12th Gen i3-12300HLIntel Alder Lake 12th Gen i5-12600HLIntel Alder Lake 12th Gen i7-12800HL |
| System Processor Core Options | 4 Core(s)8 Core(s)12 Core(s)16 Core(s) |
| Processor Clock Speed Notes | Up to 4.80 GHz (processor dependent) |
| Processor Model | Intel Celeron ; Intel Core |
| Processor Turbo Frequency Maximum | 4.8 GHz |
| Max Burst Frequency | 4.80 |
| LAN Controller | Intel I225-IT 2.5 GbEIntel I225-LM 2.5 GbE |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Intel Iris Xe (i5, i7) - Dual Channel memory requiredIntel UHD Graphics (Celeron, i3) |
| Memory Type | DDR5 |
| Memory Capacity | 64 GB |
| Memory Clock Speed | 4800 MHz/second |
| Memory Channels | Dual Channel |
Display
| Number of Displays Supported | 4 |
| Display Mounting Options | VESA Mount |
Input Output

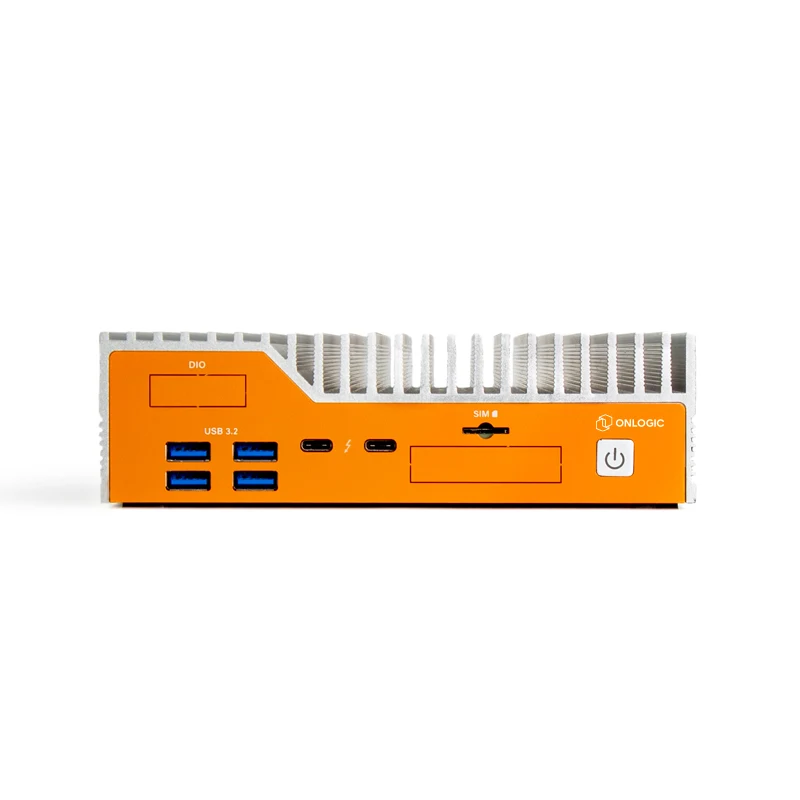

| Front I/O | 4x USB 3.2 Gen 2 ports 1x micro SIM Card Slot 2x Thunderbolt 4 ports 1x 8-bit DIO port: 4 in/out (Optional) Multi-COM and System Panel Connector (optional) |

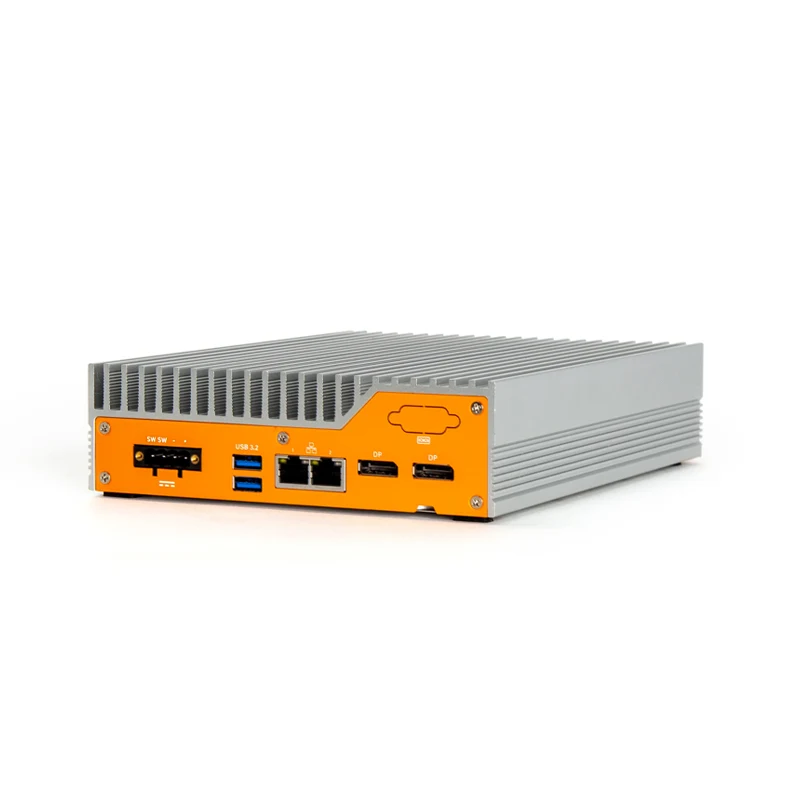

| Rear I/O | 2x USB 3.2 Gen 2 ports 2x 2.5Gb LAN ports 2x Display ports 1xDB9 COM (RS 232/422/485) or CAN port (optional) 1x 12~24 V Terminal Block |
Expansion and Features
| Storage Options | 1 M.2 M-key 2280 for SATA/NVMe PCIe Gen 4 |
| System Monitoring | On-Board TPM 2.0 (embedded) |
Mechanical
| Dimensions | 225 x 50.8 x 177 mm (8.86 x 2 x 6.97") |
| Case Type (Chassis) | Fanless |
| Case Material | AluminumSteel |
| Case Port Punchouts | 6 Antenna Holes |
| Case Mounting Options | DIN MountVESA MountWall Mount |
Power
| Input Voltage Minimum | 12 Volts |
| Input Voltage Maximum | 24 Volts |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 12~24 VDC |
| Power Input Connector | 4-pin Terminal Block |
Description
The system is ideal for real-time decision making in automation applications, with support for 4 simultaneous serial connections. The Helix 511 is a certified Red Hat Enterprise Linux system using versions 8.7, 9.1, and beyond.
