Karbon 802 High-Performance Rugged Computer w/ModBay
-
NG # 001222-HW-onelogic-022
Manufactured by:
This
seller generally responds in under 48 hours
The Karbon 802 rugged computer features 12th or 13th Gen Intel Core processing, dual ModBay expansion and optional hot swap storage.
Specification
System
| Hardware Line | Rugged |
| Cooling Type | Fanless |
| Processor Socket | LGA1700 |
| Processor Generation | Alder LakeRaptor Lake (13th Gen) |
| Processor | Intel Alder Lake Core i3/i5/i7/i9Intel Raptor Lake Core i3/i5/i7/i9 |
| System Processor Core Options | 4 Core(s)8 Core(s)12 Core(s)16 Core(s) |
| Motherboard Chipset | W680 |
| LAN Controller | Intel I225-IT 2.5 GbEIntel I225-LM 2.5 GbE |
| Motherboard Expansion Slots | 5 |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Up to Intel® UHD Graphics 770 (processor dependent) |
| Memory Type | DDR4 SO-DIMM (non-ECC)/DDR4 SO-DIMM (ECC) |
| Memory Capacity | 64 GB |
| Memory Clock Speed | 2666 MHz/second |
| Memory Channels | Dual Channel |
Display
| Display Note | 2 native (4 with MST hub) |
Input Output

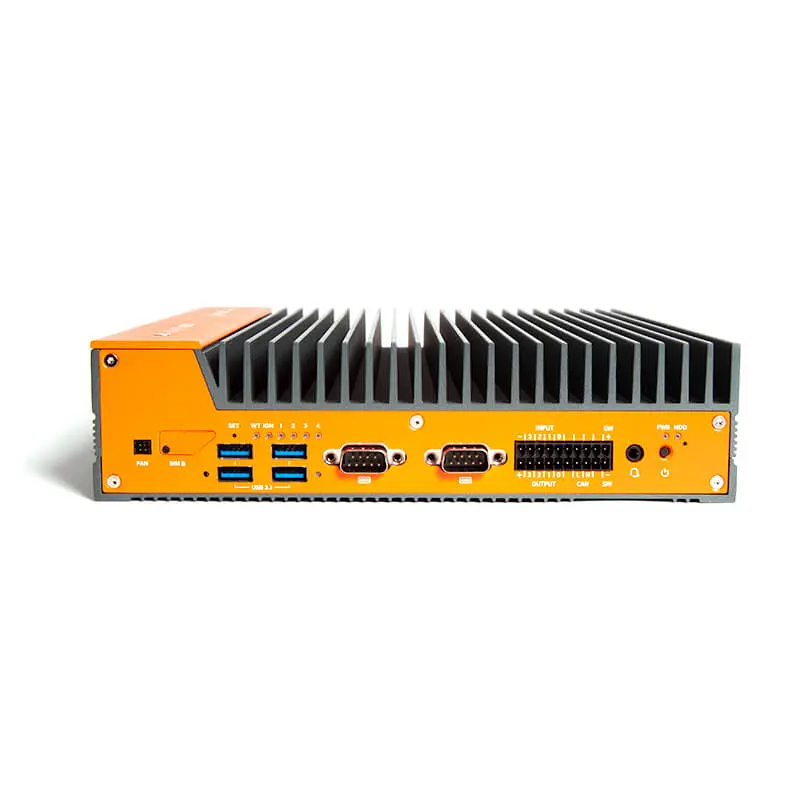

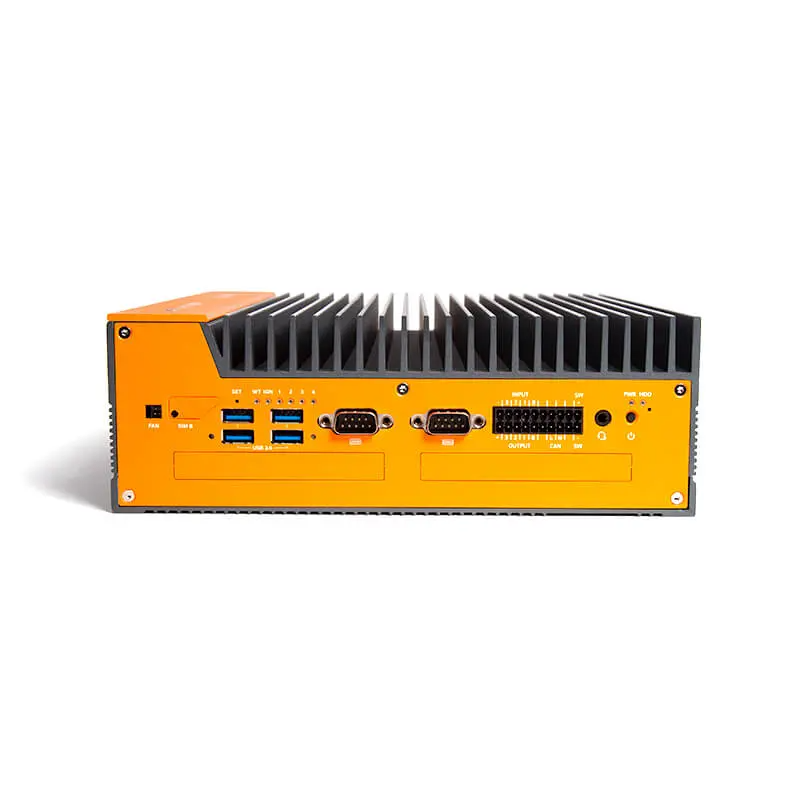

| Front I/O | 4x USB 3.2 Gen 2 ports 2x COM RS-232/422/485 ports 1x GPIO Terminal block (DIO, CAN, Ext. Switch) 2x 3FF Micro-SIM 1x 3.5mm audio 1x Power button 1x External fan connector 2x 2.5” Hot-Swap Drives (optional) |

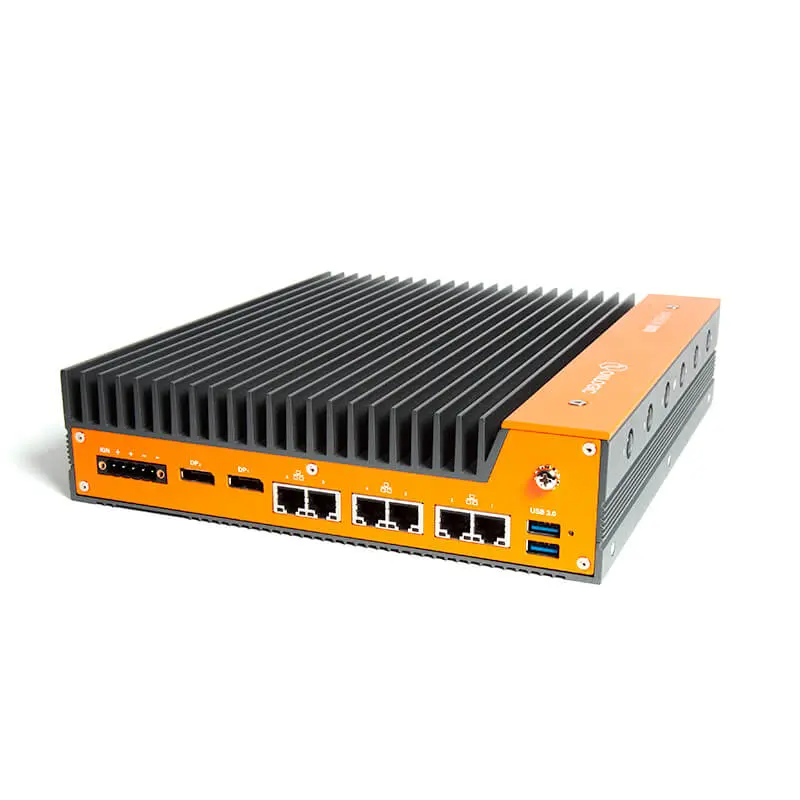

| Rear I/O | 2x or 6x 2.5 GbE LAN (2x PoE optional) 2x USB 3.2 Gen 2 ports 2x DisplayPort 5-Pin Terminal Block Power Input (12~48 VDC) 2x ModBay Expansion 7-9.5mm (optional) |
Expansion and Features
| Expansion Options | 1 M.2 2230 E-key (PCIe x1, USB 2.0)1 M.2 2280 M-key (PCIe Gen 4 x4)1 M.2 2280 M-key (PCIe Gen 4 x4, SATA)1 M.2 3042/3052/2280 B-key (PCIe x2, USB 2.0, USB 3.0, SATA)1 mPCIe (PCIe x1, USB 2.0) |
| Storage Options | 1 M.2 2280 (PCIe Gen 4.0 x4)1 M.2 2280 (PCIe Gen 4.0 x4, SATA)1 M.2 2280 (SATA)2 SATA III 2.5" Drives |
| Motherboard Raid Support | 0/1 |
| System Monitoring | PTT in BIOSTPM (Optional)Watchdog Timer |
Mechanical
| Dimensions | 240 x 82 x 267 mm 9.45 x 3.23 x 10.51 in |
| Case Type (Chassis) | AutomotiveCustomizableExpandableFanlessRuggedized |
| Case Material | AluminumAluminum ExtrusionSteel |
| Case Port Punchouts | 12 Antenna Holes |
| Case Mounting Options | DIN MountWall MountWall Mount (with damping bracket) |
Power
| Input Voltage Minimum | 12 Volts |
| Input Voltage Maximum | 48 Volts |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 12~48 VDC |
| Power Automotive Features | Automotive IntelligenceWide Input |
| Power Input Connector | 5-pin Terminal Block |
Description
Intel 12th or 13th Gen processing up to 24-Core i9. Up to 14x LAN or 14x USB 3.2 using ModBay I/O Expansion .2x 2.5"" SSDs with optional hot-swap bays
