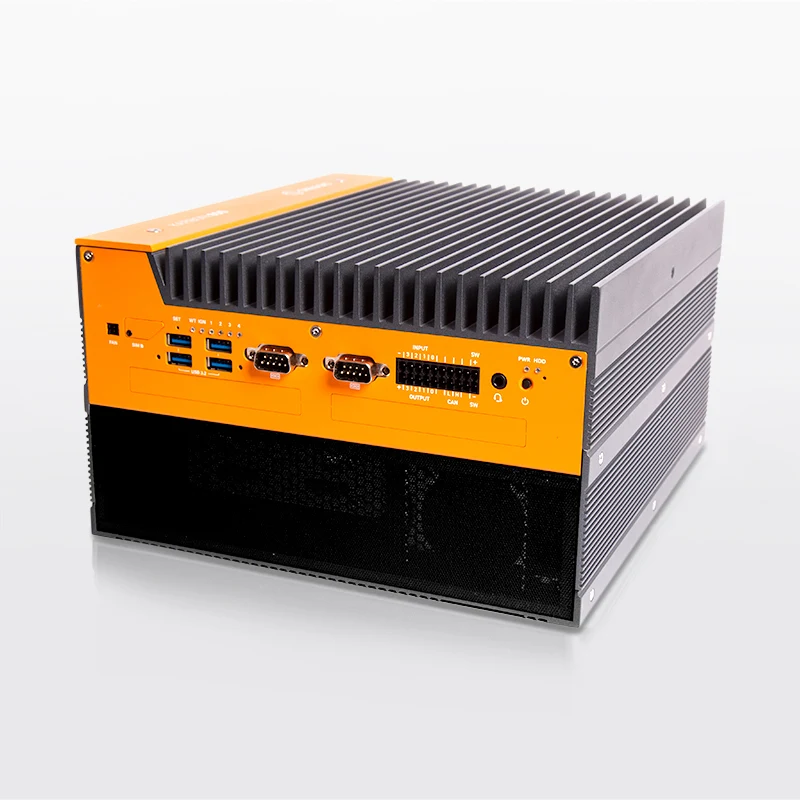

Karbon 804 High-Performance Rugged Computer w/ModBay & PCIe
-
NG # 001224-HW-onelogic-024
Manufactured by:
This
seller generally responds in under 48 hours
Specification
System
| Hardware Line | Rugged |
| Cooling Type | Hybrid Fanless/Actively Cooled |
| Processor Socket | LGA1700 |
| Processor Generation | Alder LakeRaptor Lake (13th Gen) |
| Processor | Intel Alder Lake Core i3/i5/i7/i9Intel Raptor Lake Core i3/i5/i7/i9 |
| System Processor Core Options | 4 Core(s)8 Core(s)12 Core(s)16 Core(s) |
| Motherboard Chipset | W680 |
| LAN Controller | Intel I225-IT 2.5 GbEIntel I225-LM 2.5 GbE |
| Motherboard Expansion Slots | 6 |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Up to Intel® UHD Graphics 770 (processor dependent) |
| Memory Type | DDR4 SO-DIMM (non-ECC)/DDR4 SO-DIMM (ECC) |
| Memory Capacity | 64 GB |
| Memory Clock Speed | 2666 MHz/second |
| Memory Channels | Dual Channel |
Display
| Display Note | 2 native (4 with MST hub) |
Input Output

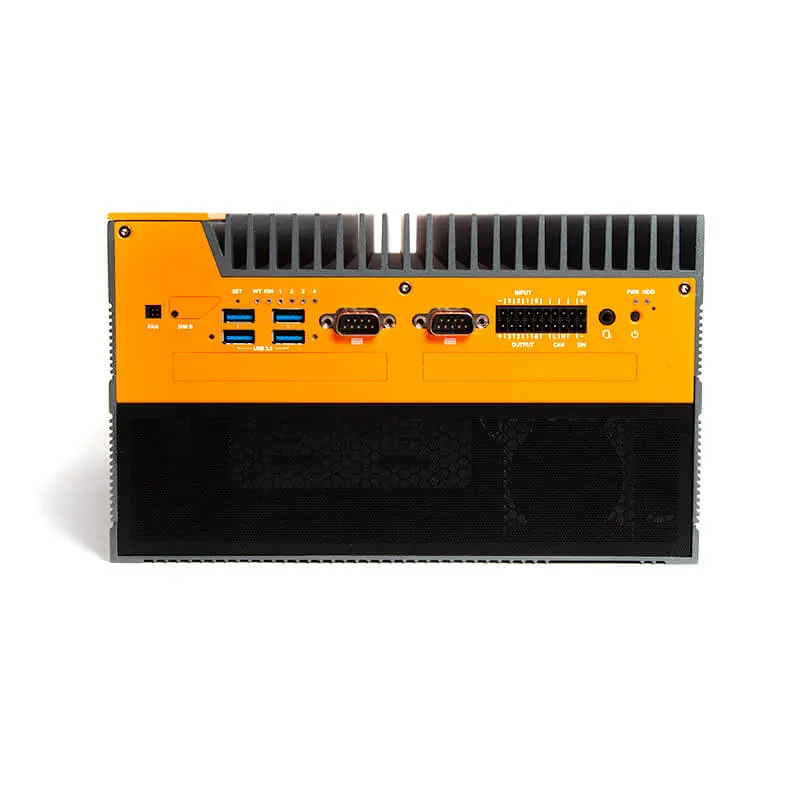

| Front I/O | 4x USB 3.2 Gen 2 ports 2x COM RS-232/422/485 ports 1x GPIO Terminal block (DIO, CAN, Ext. Switch) 2x 3FF Micro-SIM 1x 3.5mm audio 1x Power button 1x External fan connector 2x 2.5” Hot-Swap Drives 7-9.5mm (optional) |

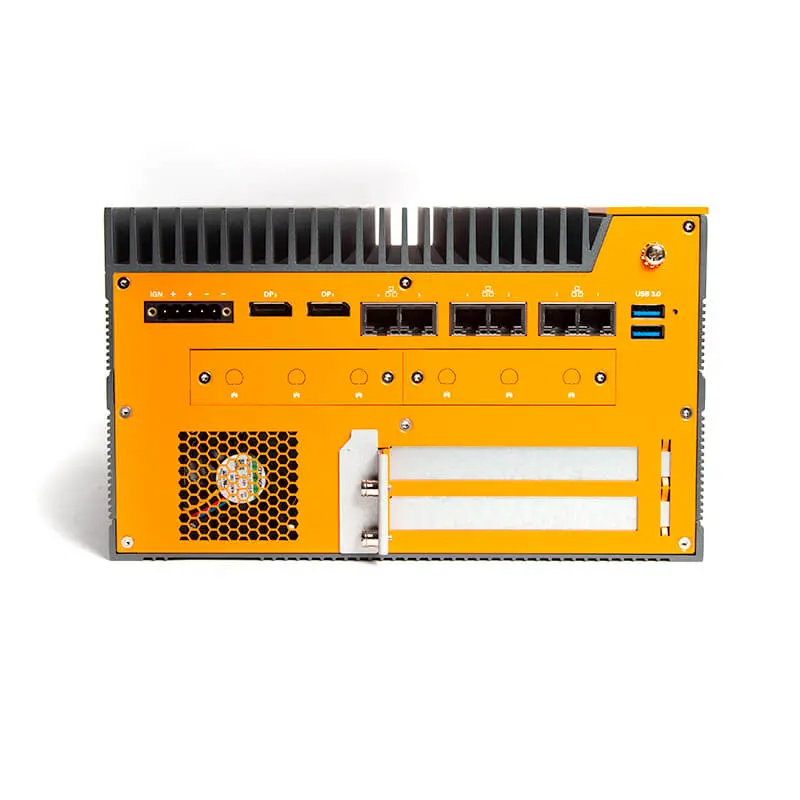

| Rear I/O | 2x or 6x 2.5 GbE LAN (2x PoE optional) 2x USB 3.2 Gen 2 ports 2x DisplayPort 5-Pin Terminal Block Power Input (12~48 VDC) 2x ModBay Expansion (optional) |
Expansion and Features
| Expansion Options | 1 M.2 2230 E-key (PCIe x1, USB 2.0)1 M.2 2280 M-key (PCIe Gen 4 x4)1 M.2 2280 M-key (PCIe Gen 4 x4, SATA)1 M.2 3042/3052/2280 B-key (PCIe x2, USB 2.0, USB 3.0, SATA)1 mPCIe (PCIe x1, USB 2.0)1 PCIe Gen 4.0 x16 or 2 PCIe Gen 4 x81 PCIe x16 in x16 PCIe slot with dual height (4.4' H x 9.5" L)2 PCIe x16 (8 lanes each) with single slot height (4.4" H x 9.5" L) |
| Storage Options | 1 M.2 2280 (PCIe Gen 4.0 x4)1 M.2 2280 (PCIe Gen 4.0 x4, SATA)1 M.2 2280 (SATA)2 SATA III 2.5" Drives |
| Motherboard Raid Support | 0/1 |
| System Monitoring | PTT in BIOSTPM (Optional)Watchdog Timer |
Mechanical
| Dimensions | 240 x 143 x 267 mm 9.45 x 5.63 x 10.51 in |
| Case Type (Chassis) | AutomotiveCustomizableExpandableFanlessRuggedized |
| Case Material | AluminumAluminum ExtrusionSteel |
| Case Port Punchouts | 12 Antenna Holes |
| Case Mounting Options | DIN MountWall MountWall Mount (with damping bracket) |
Description
Karbon 804 provides incredible computing power and flexibility. Featuring 12th or 13th Gen Intel Core processing, dual ModBay and PCIe Gen 4 expansion, and optional 6 disk RAID storage, this rugged system is an ideal automation, machine learning or AI platform.
