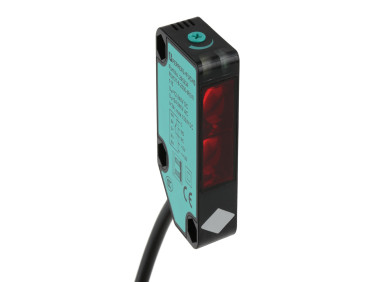

Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 0 → 2.5 m Detection Range
-
NG # 003422-HW-Pepperl-O22
Manufactured by:
Specification
Sensor Style Block Detection Type Diffuse Detection Range 0 → 2.5 m Output Type Relay Electrical Connection 5 Wire Cable 2 m Maximum AC Voltage 240V Maximum DC Voltage 240V Light Source Infrared IP Rating IP67 Maximum Current 40 mA Response Time <25 ms Maximum Operating Temperature +55°C Minimum Operating Temperature -25°C Housing Material PC Mounting Type Cable Mount Standards Met CCC, CE
Description
RLK31 Diffuse Block Style AC/DC Photoelectric Sensors
The RLK31 range of diffuse photoelectric sensors from Pepperl + Fuchs offers a compact sensor suitable for factory automation applications within industrial environments. Diffuse sensors work when an object moves within the sensing range by using light from the emitter which will strike the target object within range which will then be reflected directly into the receiver unit and activate the sensor. Diffuse sensors are used in part presence, error proofing, fill, product height and lid presence applications.
Operating voltage AC / DC
Highly visible LED
Relay output
Compact and stable housing
Protection class II
