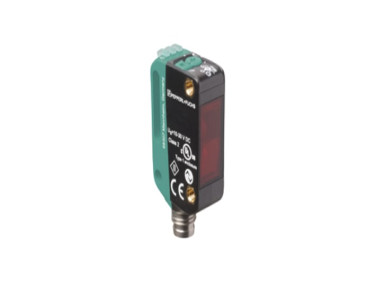

Pepperl + Fuchs Retroreflective Photoelectric Sensor, Block Sensor, 0 → 5 m Detection Range IO-LINK
TF:
003423-HW-Pepperl-O23
| Sensor Style | Block |
| Detection Type | Retroreflective |
| Detection Range | 0 → 5 m |
| Output Type | NPN/PNP |
| Electrical Connection | M8 4 Pin Connector |
| Maximum DC Voltage | 30V |
| Communication Protocol | IO-LINK |
| Terminal Type | 4 Pin Connector |
| Light Source | LED |
| IP Rating | IP67, IP69, IP69K |
| Maximum Current | 100 mA |
| Interface | IO-Link |
| Response Time | 1 ms |
| Mounting Type | Panel Mount |
| Housing Material | PC |
| Series | OBG5000 |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Standards Met | CE, cULus, E 87056, EN 60947-5-2:2007, EN 61131-9:2013, EN 62471:2008, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014 |
Pepperl and Fuchs - R100 Series IO-Link Photoelectric Sensors
Pepperl + Fuchs R100 series photoelectric sensors combine state-of-the-art design with economy, simplicity, and innovative technologies. The R100 series includes the complete family of photoelectric sensing modes in a single housing design. Regardless of which sensing mode is required in the application, housing characteristics such as dimensions, wiring, and installation are identical throughout the series.
The integration of IO-Link in the R100 sensors enables communication down to sensor level, allowing sensor intelligence to be used to its full potential.
