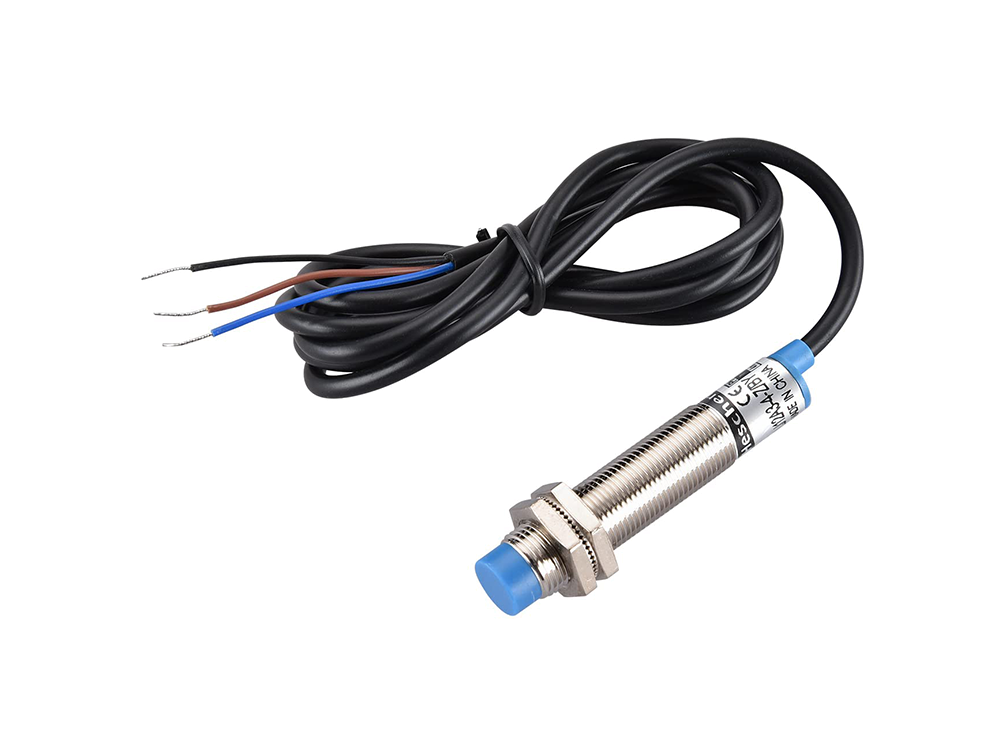

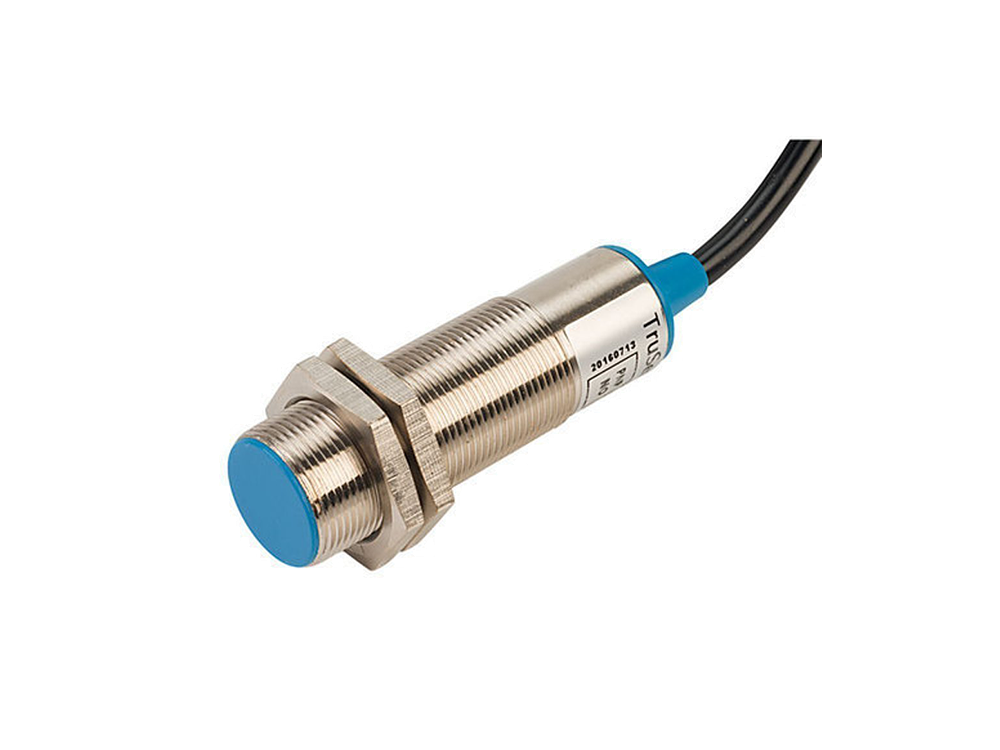

Pepperl+Fuchs Inductive sensor NBB10-30GM50-WS
-
NG # 003401-HW-Pepperl-OO1
Manufactured by:
Inductive sensors contains extensive expertise and supports users in the highly precise and smooth operation of the sensors in their machinery and plants. Several subsections explain function principles and technical relationships and offer practical application information.
Specification
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 10 mm |
| Installation | flush |
| Output polarity | AC |
| Assured operating distance | 0 ... 8.1 mm |
| Actual operating distance | 9 ... 11 mm |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.28 |
| Reduction factor r304 | 0.81 |
| Output type | 2-wire |
| Operating voltage | 20 ... 253 V |
| Switching frequency | 0 ... 20 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Voltage drop | < 5 V (IL > 50 mA); < 8 V (IL < 50 mA) |
| Momentary current (20 ms, 0.1 Hz) | 0 ... 1600 mA |
| Operating current | 5 ... 200 mA |
| Off-state current | 0 ... 1.7 mA |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
| Standards | EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012 |
| UL approval | cULus Listed, General Purpose |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Connection type | cable PVC , 2 m |
| Core cross section | 0.75 mm2 |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable diameter | 6.4 mm ± 0.2 mm |
| Bending radius | > 10 x cable diameter |
Description

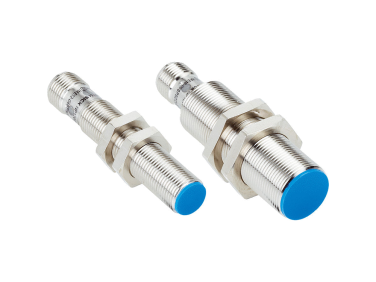

Inductive sensors are available in different versions. Depending on the application, different output types, connection types, materials, or designs may be necessary for effective use. Inductive sensors are affected by external influences such as electromagnetic fields, material influences, and the size of the objects being detected. Accordingly, the installation and ambient conditions and any normative requirements must be taken into account.
