Pepperl+Fuchs Laser light sensor VLE350-F280-B12-1100
-
NG # 003405-HW-Pepperl-OO5
Manufactured by:

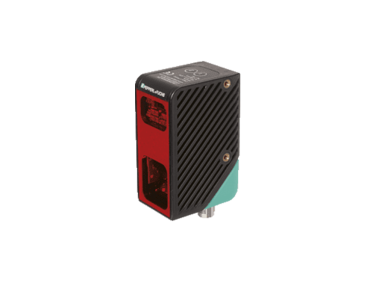

Laser light sensor VLE350-F280-B12-1100 · Height profile output Area image output Resolution 1280 x 960 pixel, Intelligent exposure time control
Specification
Measurement range X = 40 ... 160 mm ; Z = 60 ... 350 mm Light source laser diode Light type red laser + Integrated LED lightning red 650 nm Laser nominal ratings Note VISIBLE LASER RADIATION , DO NOT STARE INTO BEAM
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Laser class 1 Wave length Measuring laser: 660 nm Pulse length Measuring laser: 0.5 ms Maximum optical power output Measuring laser: 15 mW Laser monitoring The safety system switches off the laser when the laser current is too high Scan rate 30 s-1 Resolution X>0.075 mm; Z>0.1 mm at 60 mm distance
X>0.12 mm; Z>0.6 mm at 200 distance
X>0.25 mm; Z>1.3 mm at 350 distanceCamera Number of pixels 1280 x 960 pixels MTTFd 20 a Mission Time (TM) 10 a Diagnostic Coverage (DC) 0 % Operation indicator LED green Diagnostics indicator LED yellow / red Function indicator Trigger: LED yellow Control elements 2 push-buttons Operating voltage 24 V ± 20 % , PELV No-load supply current max. 250 mA Power consumption max. 6 W , Outputs without load Interface type Ethernet Protocol TCP/IP Transfer rate 100 MBit/s Input voltage 24 V Number/Type External triggering Switching threshold low: < 2.5 V, high: > 8 V Standard conformity Noise immunity EN 61000-6-2:2005 Emitted interference EN 61000-6-4:2007/A1:2011 Degree of protection EN 60529 Shock and impact resistance EN 60068-2-27:2009 Laser class IEC 60825-1:2007 CCC approval CCC approval / marking not required for products rated ≤36 V Approvals CE Operating temperature -20 ... 45 °C (-4 ... 113 °F) , (noncondensing; prevent icing on the lens!) Storage temperature -20 ... 70 °C (-4 ... 158 °F) Degree of protection IP67 Connection 8-pin, M12 x 1 connector ( supply + Inputs/Outputs ) + 4-pin, M12x1 socket, D-coded (LAN) ; can be rotated 90° ; Grounding : Grounding clip for PCV system Material Housing PC/ABS Optical face Plastic pane Mass approx. 125 g Tightening torque, fastening screws max. 2 Nm Dimensions Height 85 mm Width 38 mm Depth 55 mm
Description
Introducing the laser light sensor designed for precise profile matching with an impressive resolution of 1280 x 960 pixels. The extensive measuring range spans X-axis from 40 to 160 mm and Z-axis from 60 to 350 mm, delivering accurate results. Operating at a scan rate of 30 scans per second, this sensor is equipped with an Ethernet TCP/IP interface for seamless connectivity.
